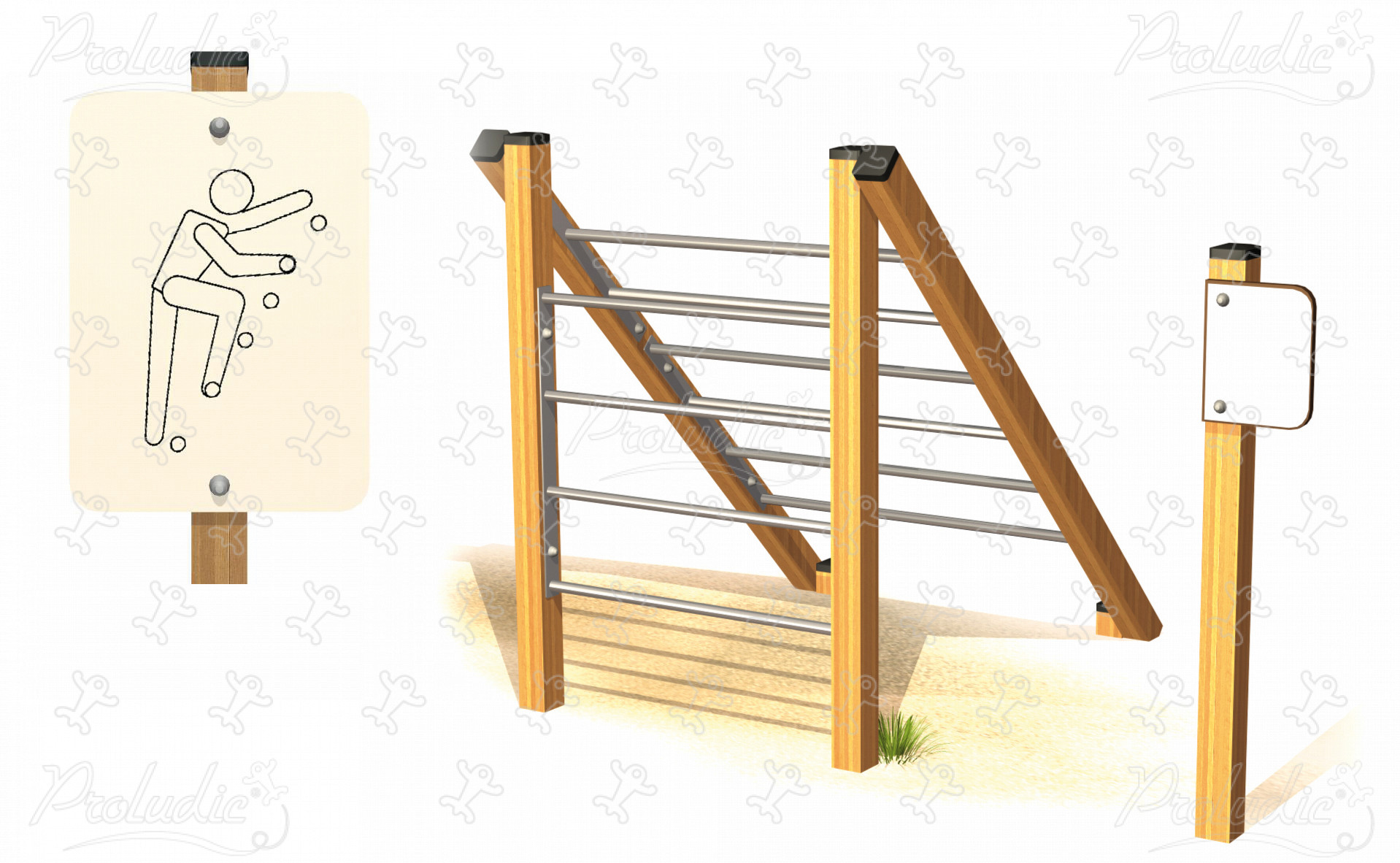

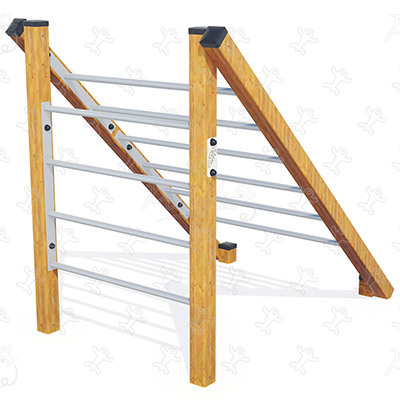

Wood trim trails - Timber Climbing Ladders - JPS22

We have created the reference JPS22 in our "Wood trim trails" range. This activity equipment is accessible from 6 years. It can accommodate up to 1 user.

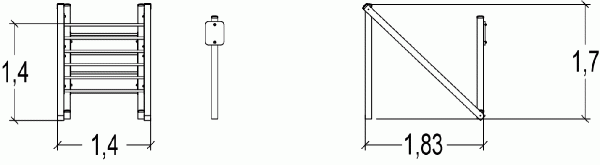

The size of the module is: 1.83 m length, 1.40 m width, 1.70 m. high. The free fall height (FFH) is 1.70 m.

Other finishes available

JPS22-M

3 sports activities

Getting across x1

Climbing x2

3 ludo-sport motivations

Sensations

Sharing

Challenge

Specifications

Age range:	6+
Number of users:	1 user
FFH :	1.70 m
Size:	1.83 x 1.40 x 1.70 m

Equipment installation

Number of installers:	2
Installation time:	01:30:00
Concrete volume:	0.10 m3
Surface:	22.00 m2
Total weight:	90.47 kg
Weight of the heaviest element:	13.37 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The vertical 95mm square post are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The posts are protected by injected polyamide caps. Read more
