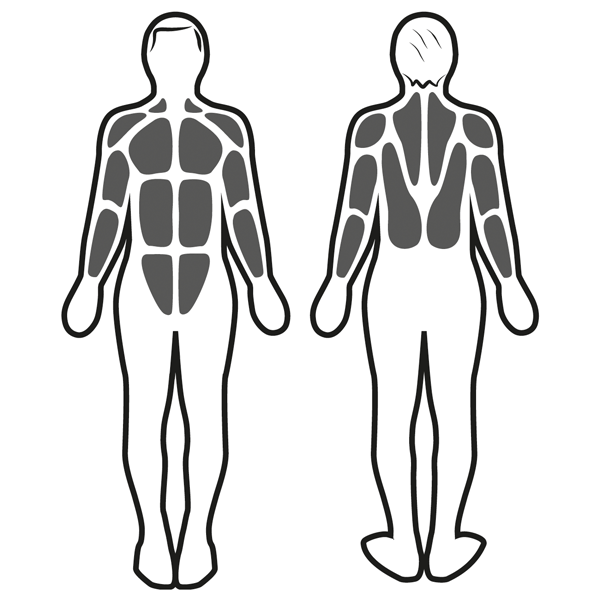

Muscle stimulation

Movement

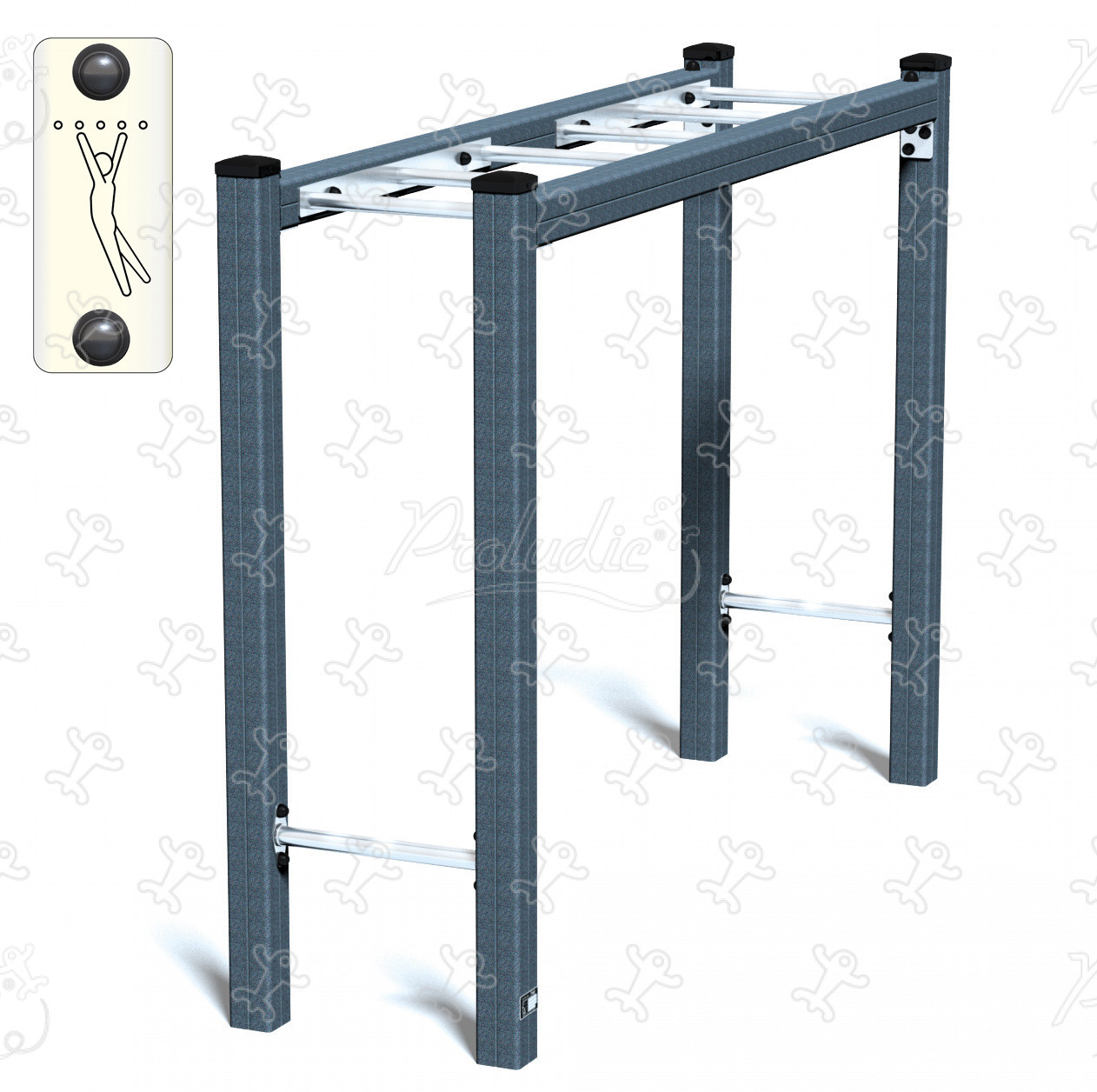

ACTI’Ninja - Junior Monkey Bars - JPS21-J-M

We have created the reference JPS21-J-M in our "ACTI’Ninja" range. This activity equipment is accessible from 1.40 m. It can accommodate up to 2 users.

The size of the module is: 2.39 m length, 0.64 m width, 1.75 m. high. The free fall height (FFH) is 1.70 m.

Other finishes available

JPS21-S-M

JPS21-S

JPS21-J

3 sports activities

Getting across x1

Hanging x1

Pull-ups x1

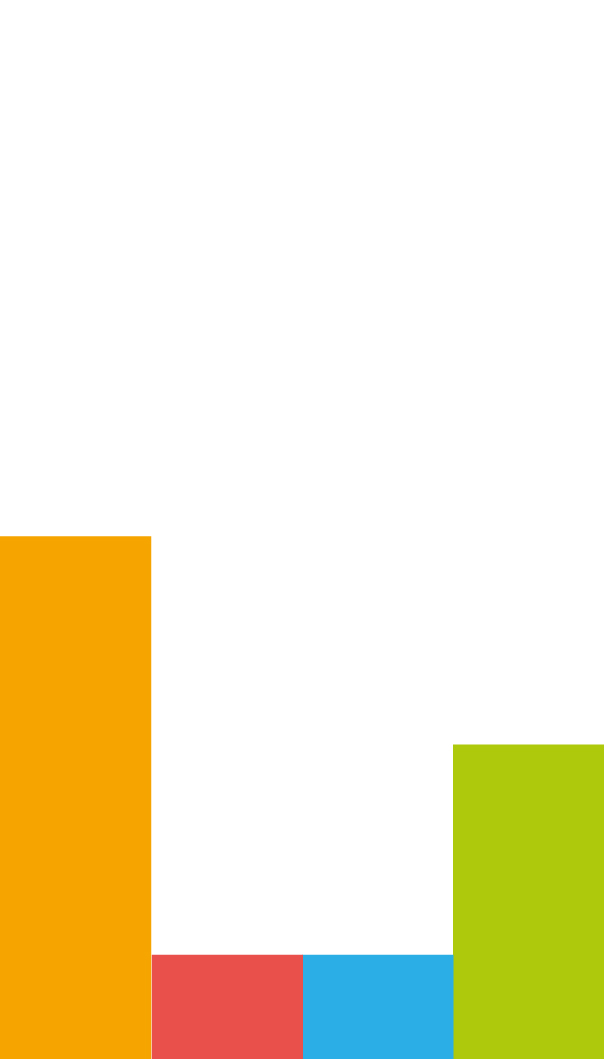

4 ludo-sport motivations

Progressive design

Sharing

Diversity

Challenge

Specifications

Minimum size:	> 1.40 m
Number of users:	2 users
FFH :	1.70 m
Size:	2.39 x 0.64 x 1.75 m

Equipment installation

Number of installers:	2
Installation time:	01:45:00
Concrete volume:	0.10 m3

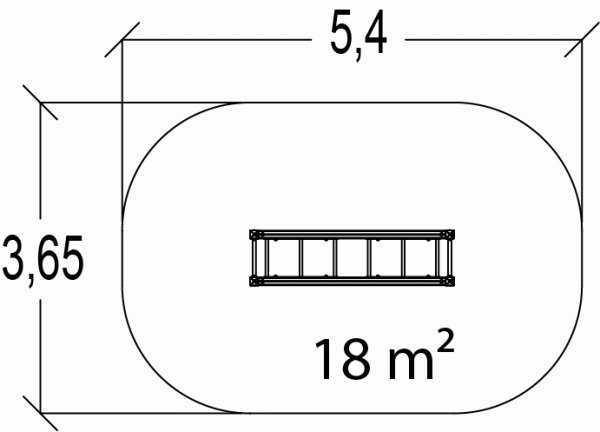

Surface:	18.00 m2
Total weight:	112.78 kg
Weight of the heaviest element:	15.78 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Video - ACTI’Ninja - Junior Monkey Bars - JPS21-J-M

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The tubes are made of 34mm diameter galvanised steel.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.

Everything you need to know about the materials used by Proludic
