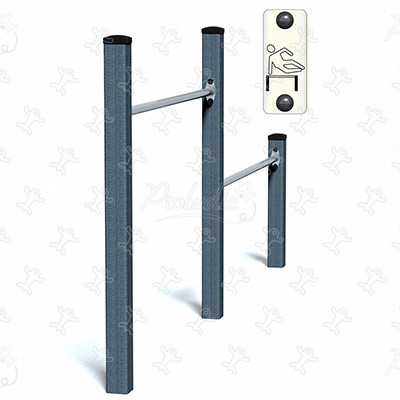

ACTI’Ninja - Senior Support Jump - JPS17-S-M

We have created the reference JPS17-S-M in our "ACTI’Ninja" range. This activity equipment is accessible from 14 years. It can accommodate up to 2 users.

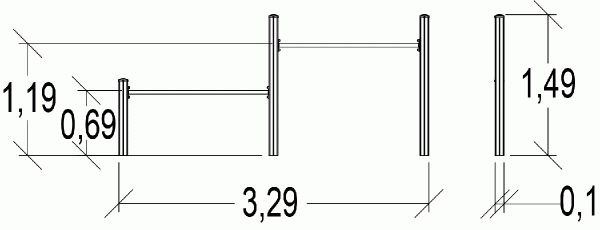

The size of the module is: 3.29 m length, 0.10 m width, 1.49 m. high. The free fall height (FFH) is 1.20 m.

Other finishes available

JPS17-S

6 sports activities

Jumping x2

Balancing x2

Getting across x2

3 ludo-sport motivations

Sharing

Diversity

Challenge

Specifications

Age range:	14+
Number of users:	2 users
FFH :	1.20 m
Size:	3.29 x 0.10 x 1.49 m

Equipment installation

Number of installers:	2
Installation time:	01:00:00
Concrete volume:	0.10 m3
Surface:	18.00 m2
Total weight:	44.23 kg
Weight of the heaviest element:	14.03 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Video - ACTI’Ninja - Senior Support Jump - JPS17-S-M

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.

Everything you need to know about the materials used by Proludic
