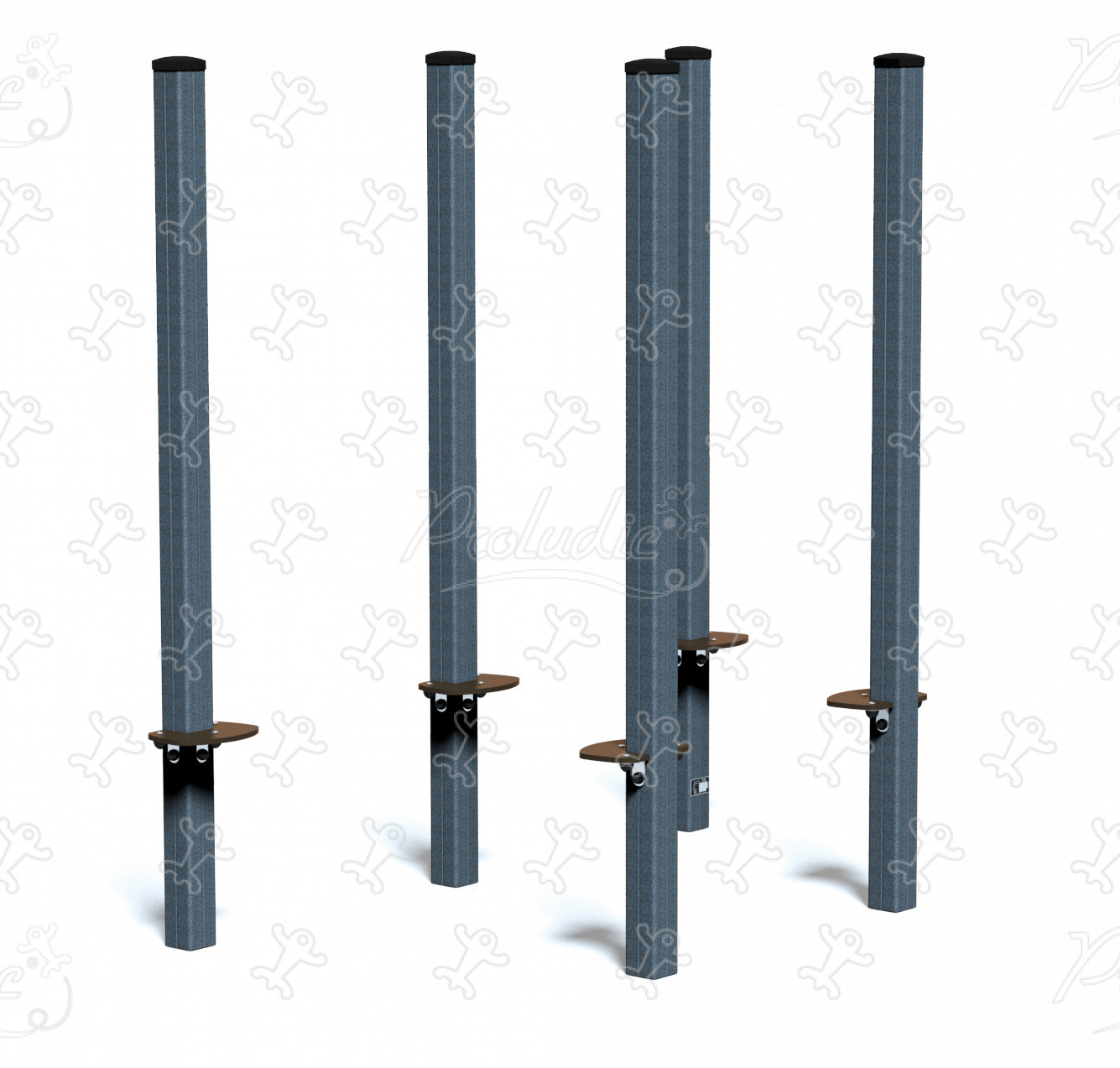

ACTI’Ninja - Junior Slalom Steppers - JPS10-J-M

We have created the reference JPS10-J-M in our "ACTI’Ninja" range. This activity equipment is accessible from 8 years. It can accommodate up to 2 users.

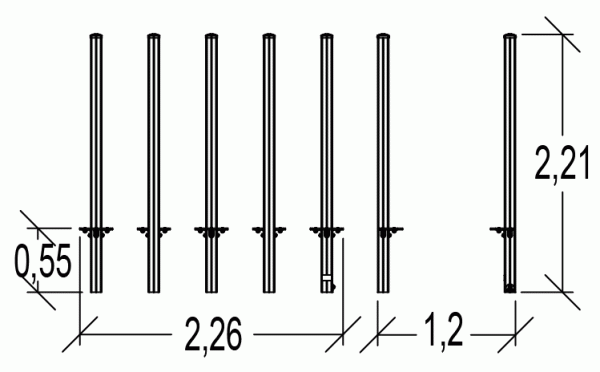

The size of the module is: 2.26 m length, 1.19 m width, 2.21 m. high. The free fall height (FFH) is 0.55 m.

Other finishes available

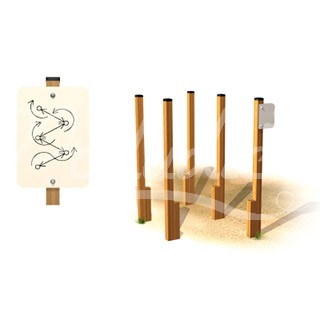

JPS10-J

4 sports activities

Jumping x1

Balancing x1

Getting across x1

Running x1

4 ludo-sport motivations

Sensations

Sharing

Diversity

Challenge

Specifications

Age range:	8+
Number of users:	2 users
FFH :	0.55 m
Size:	2.26 x 1.19 x 2.21 m

Equipment installation

Number of installers:	2
Installation time:	03:00:00
Concrete volume:	0.15 m3

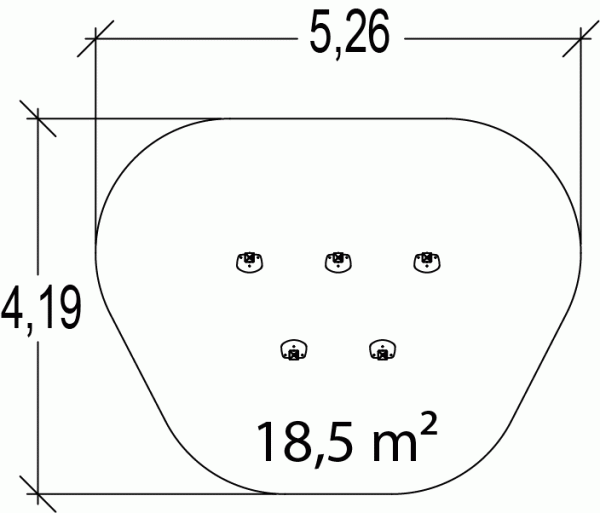

Surface:	18.50 m2
Total weight:	195.23 kg
Weight of the heaviest element:	37.77 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The panels are made from a 12.5mm thick textured and non-slip compact material (HPL).

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.

Everything you need to know about the materials used by Proludic
