Springers - Inclusive Seesaw - J987®

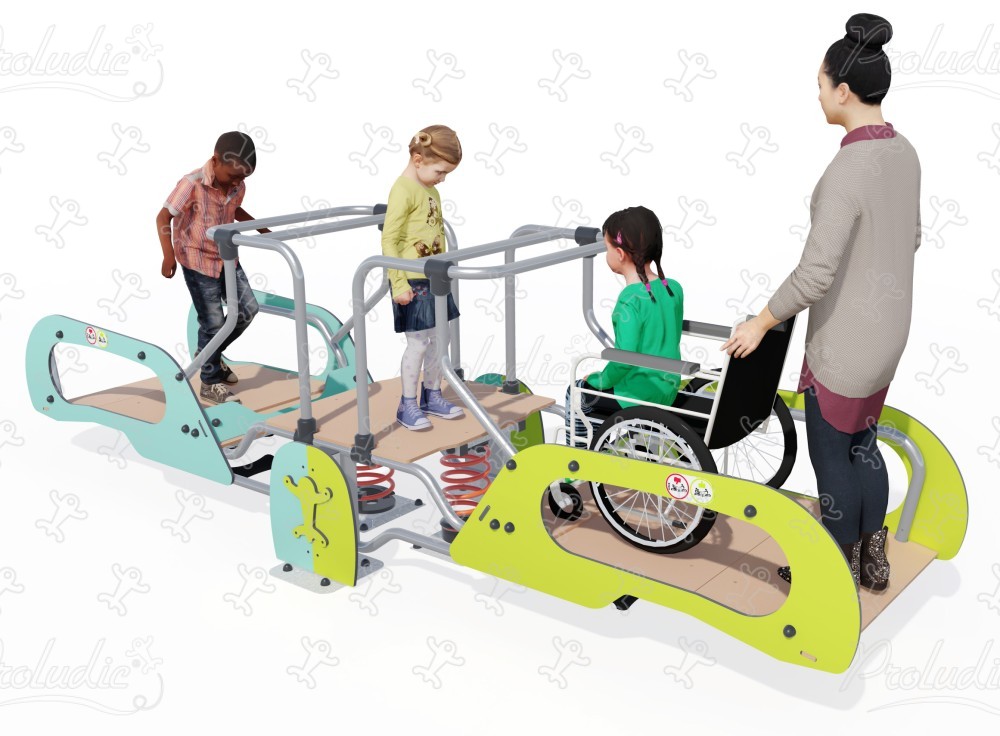

A true innovation in inclusive play design, the Inclusive Seesaw enables two children who use a wheelchair to enjoy gentle, reassuring rocking movements with other children. We have created the reference J987® in our Springers range. This play equipment is accessible for 3 years plus. It can accommodate up to 6 users.

The size of the module is: 4.04 m wide, 1.14 m. deep, 1.19 m. high. The free fall height (FFH) is 0.60 m.

5 play functions

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Role play x1

Role plays promote the child's intellectual and social skills.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Resting x1

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Swinging and rocking x1

It allows children to leave their stable position and experiment with uncoordinated movements.

Specifications

Age range:	3+
Number of users:	6 users
FFH :	0.60 m
Size:	4.04 x 1.14 x 1.19 m

Equipment installation

Number of installers:	2
Installation time:	06:00:00
Surface:	30.00 m2
Total weight:	246.50 kg
Weight of the heaviest element:	58.24 kg

Environmental Indicators

Repairability

9.06 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Video - Springers - Inclusive Seesaw - J987®

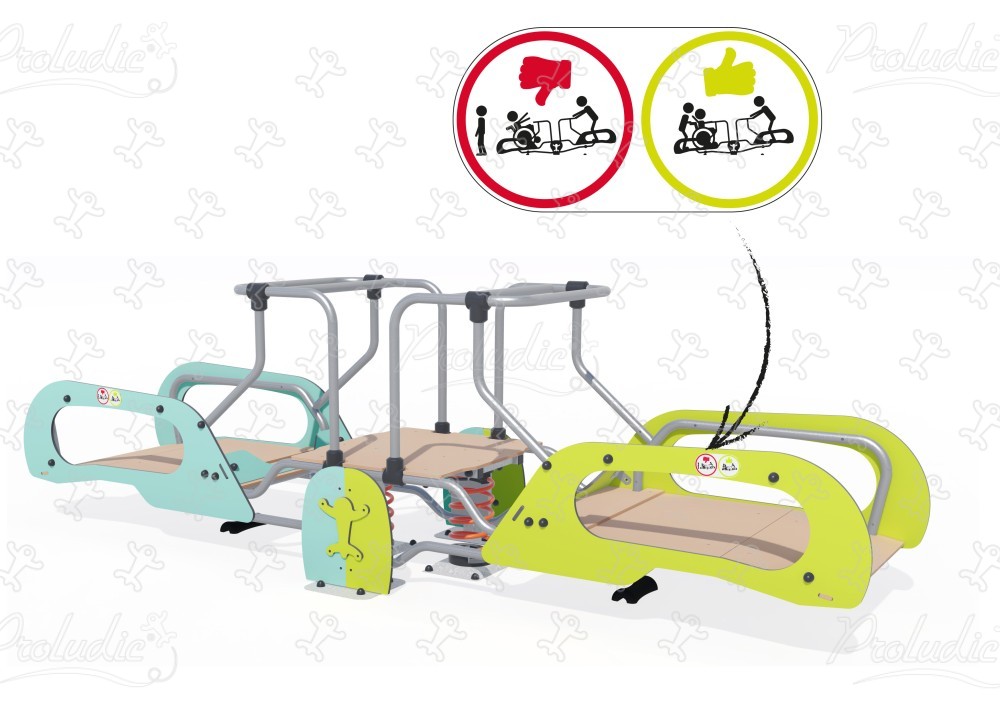

Inclusive Seesaw - Wheelchair. Do's and Don'ts

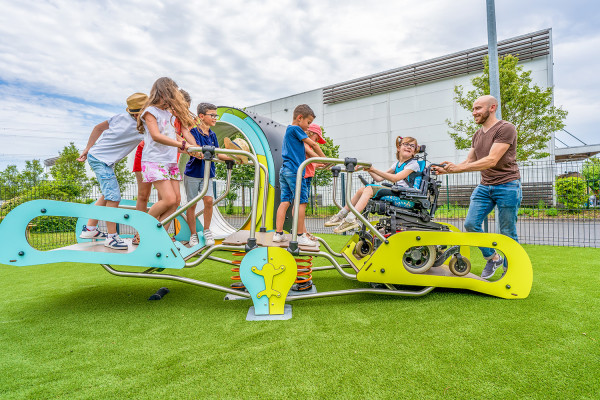

Inclusive Seesaw - Wheelchair. Family at play.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platform is made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The springs are made from Grade 35SCD6 steel, shot blasted, stress relieved, zinc coated and finished with two coats of epoxy polyester powder. The polyamide... attachment ensures longevity and an exceptional safety for the system. Read more
