Springers - Double Perch - J986

We have created the reference J986 in our "Springers" range. This play equipment is accessible from 4 years. It can accommodate up to 2 users.

“The J986 Double Perch is a product that encourages teamwork and group play. Suitable for use by both younger (4yrs+) and older users. Durable with a 5 year guarantee on the springs. Stainless steel top and galvanised steel posts.”

4 play functions

Role play x1

Role plays promote the child's intellectual and social skills.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Swinging and rocking x1

It allows children to leave their stable position and experiment with uncoordinated movements.

Specifications

Age range:	4+
Number of users:	2 users
FFH :	1.00 m

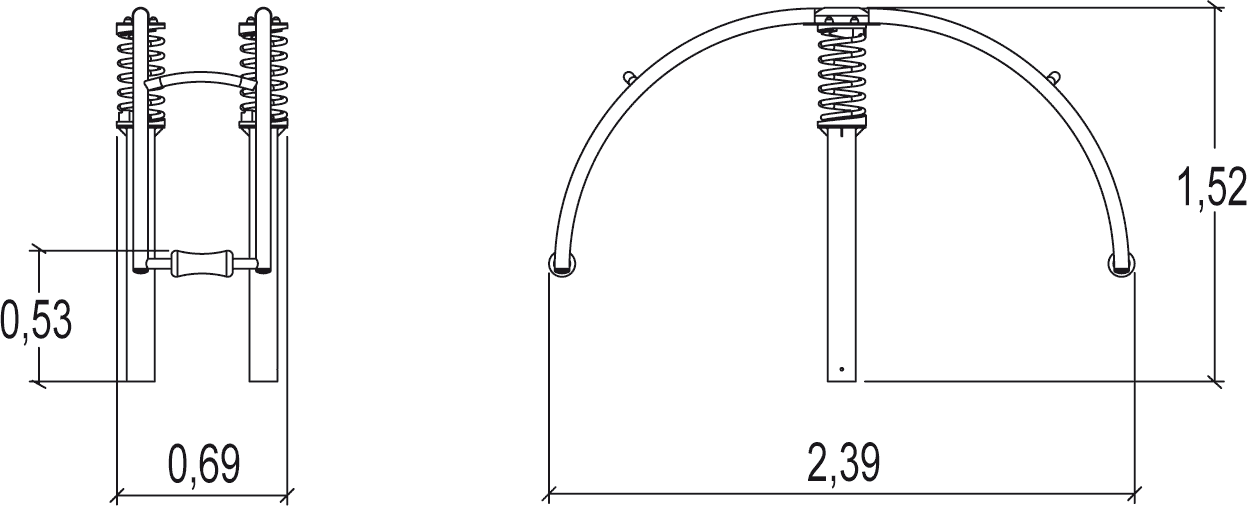

Size:	2.39 x 0.69 x 1.52 m

Equipment installation

Number of installers:	2
Installation time:	04:00:00
Concrete volume:	0.35 m3

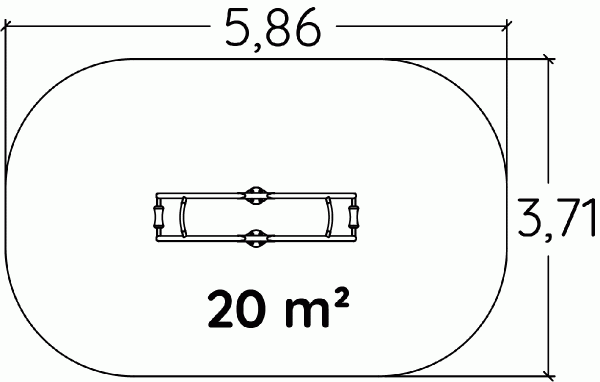

Surface:	20.00 m2
Total weight:	107.56 kg
Weight of the heaviest element:	59.53 kg

Environmental Indicators

Repairability

9.06 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 115mm diameter post is made of galvanised steel.

The 60mm diameter tubes are made of lacquered steel guaranteeing lasting durability and reliability of the equipment.

The footrests are made of shock-absorbing rubber with non-slip surfaces.

The springs are made from Grade 35SCD6 steel, shot blasted, stress relieved, zinc coated and finished with two coats of epoxy polyester powder. The polyamide... attachment ensures longevity and an exceptional safety for the system. Read more
