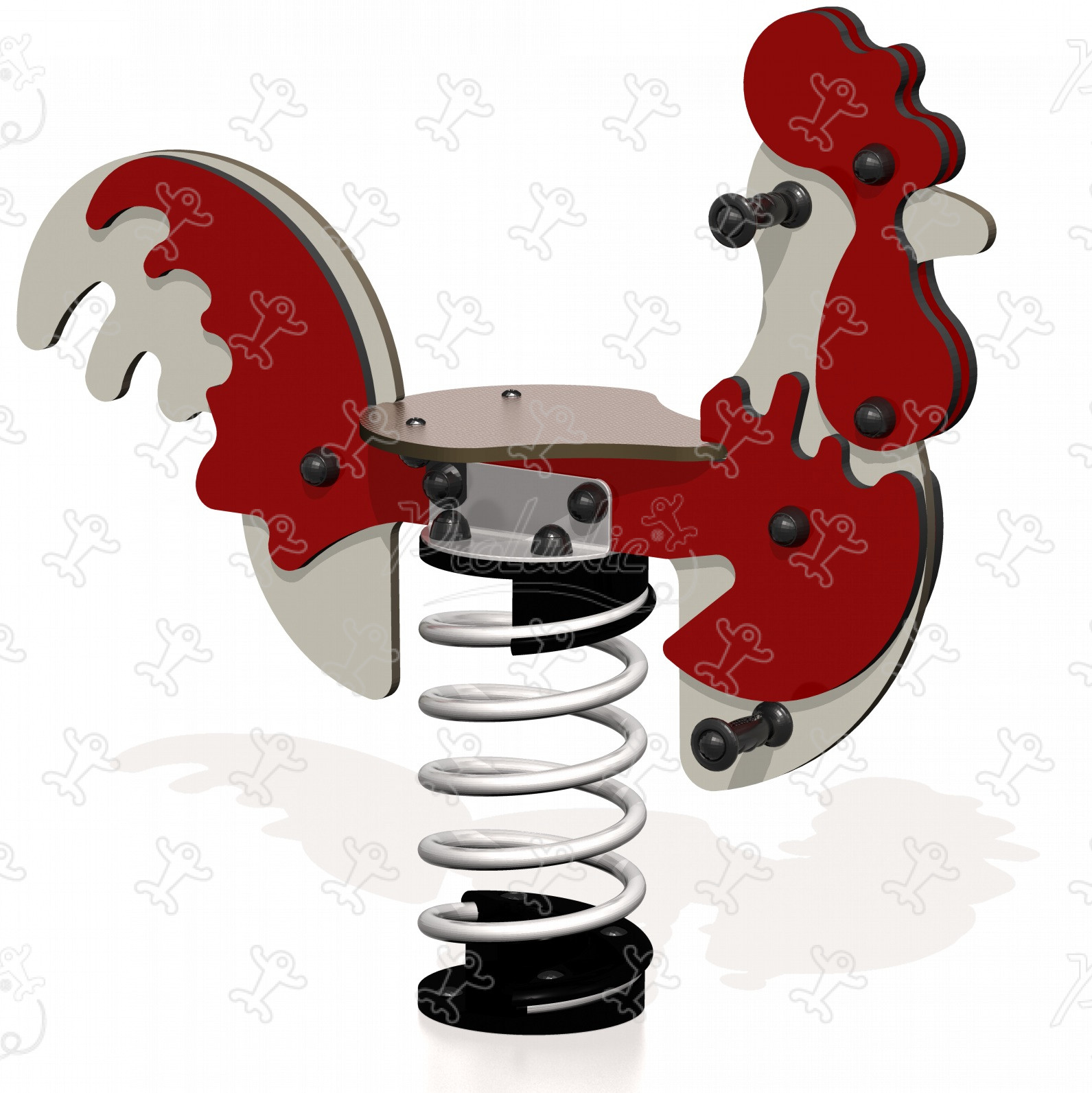

Springers - Rooster - J802

We have created the reference J802 in our "Springers" range. This play equipment is accessible from 2 years. It can accommodate up to 1 user.

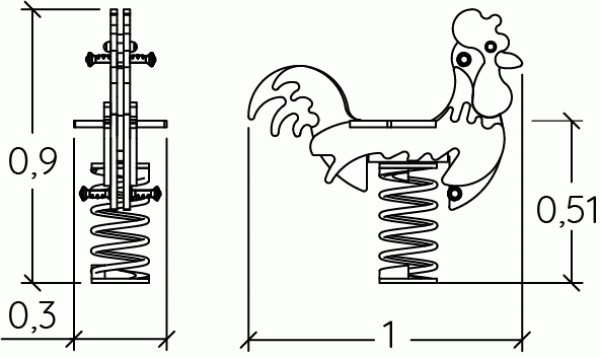

The size of the module is: 1.00 m length, 0.30 m width, 0.90 m. high. The free fall height (FFH) is 0.60 m.

3 play functions

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Role play x1

Role plays promote the child's intellectual and social skills.

Swinging and rocking x1

It allows children to leave their stable position and experiment with uncoordinated movements.

Specifications

Age range:	2+
Number of users:	1 user
FFH :	0.60 m
Size:	1.00 x 0.30 x 0.90 m

Equipment installation

Number of installers:	1
Installation time:	01:30:00
Surface:	7.00 m2
Total weight:	29.90 kg
Weight of the heaviest element:	10.04 kg

Environmental Indicators

Repairability

9.06 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The seat is made from a 12.5mm thick textured and non-slip compact material (HPL).

The spring is made from Grade 35SCD6 steel, shot blasted, stress relieved, zinc coated and finished with two coats of epoxy polyester powder. The polyamide... attachment ensures longevity and an exceptional safety for the system. Read more
