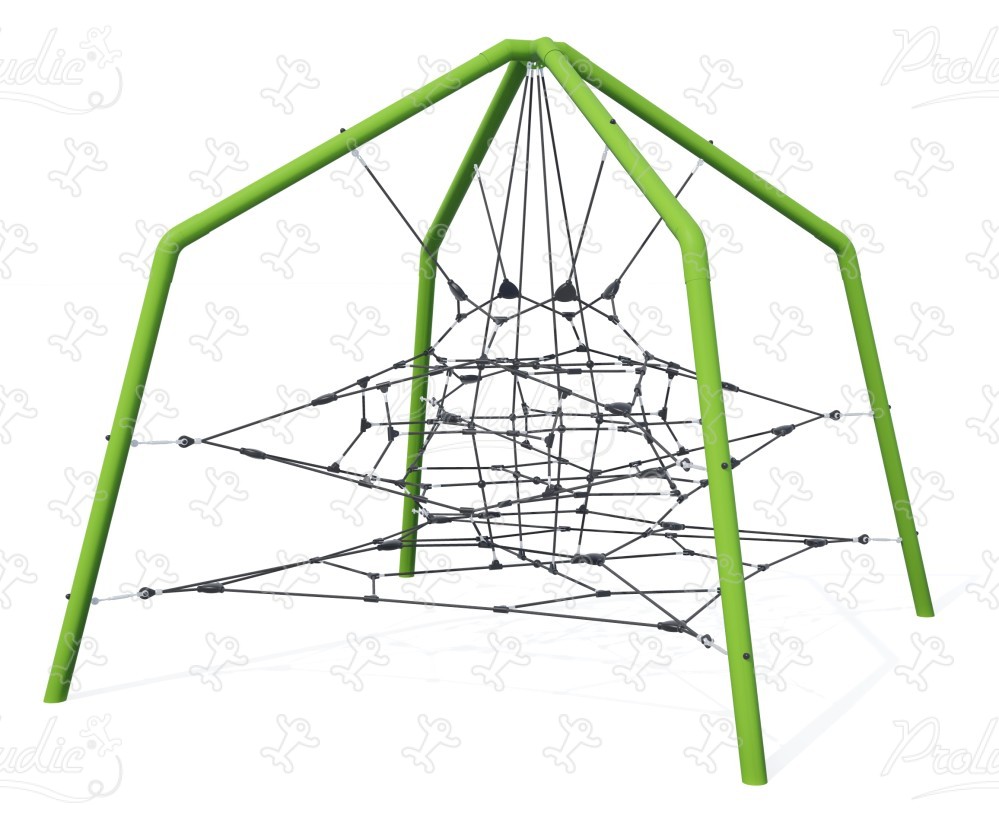

Climbing equipment - 3D Rope Structure - J60001

We have created the reference J60001 in our "Climbing equipment" range. This play equipment is accessible from 5 years. It can accommodate up to 20 users.

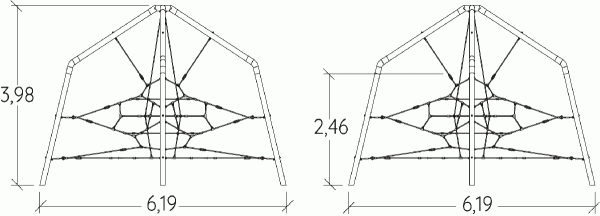

The size of the module is: 6.19 m length, 6.19 m width, 3.98 m. high. The free fall height (FFH) is 1.50 m.

4 play functions

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Specifications

Age range:	5+
Number of users:	20 users
FFH :	1.50 m
Size:	6.19 x 6.19 x 3.98 m

Equipment installation

Number of installers:	2
Concrete volume:	0.45 m3

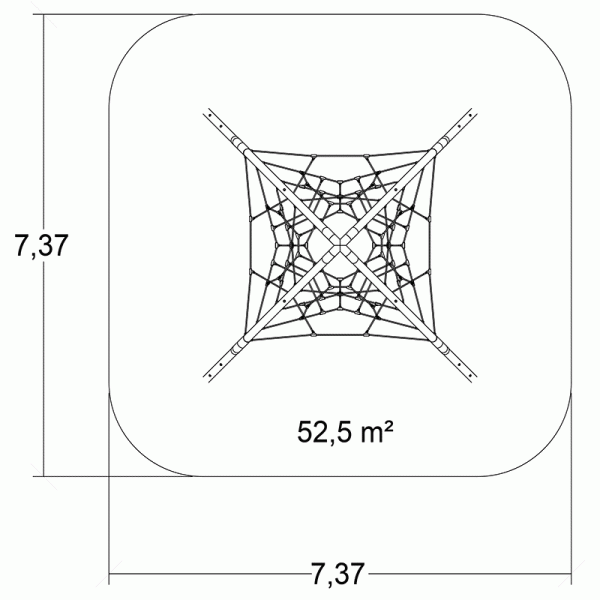

Surface:	52.50 m2
Total weight:	282.63 kg
Weight of the heaviest element:	61.31 kg

Environmental Indicators

Repairability

9.44 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Video - Climbing equipment - 3D Rope Structure - J60001

Materials

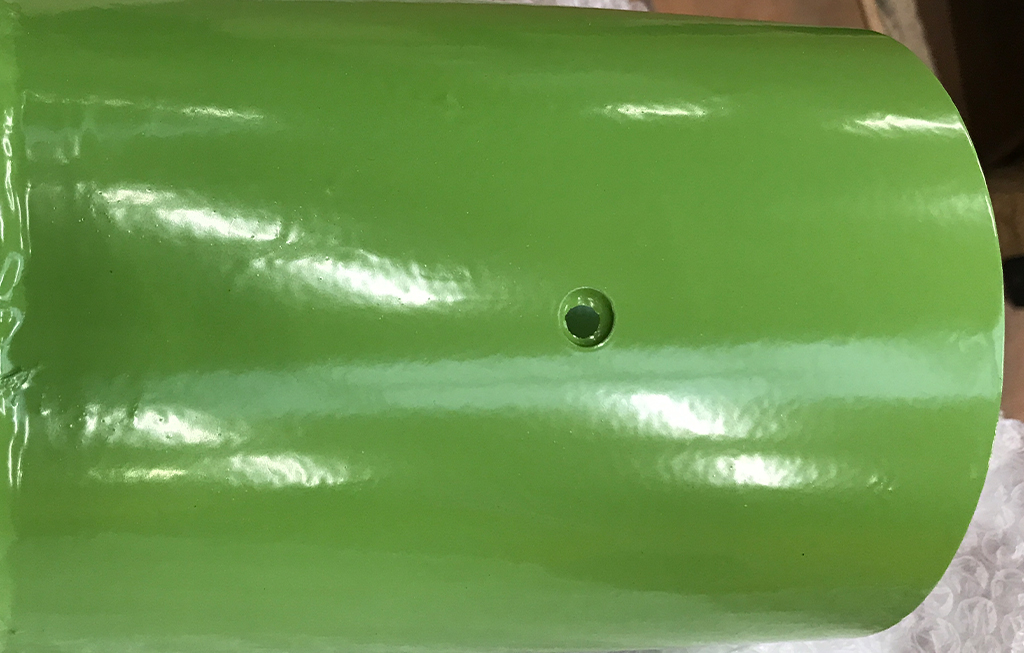

The 125mm diameter posts and the junction piece are made of painted galvanised steel.

The 16mm diameter rope is made of galvanised steel cable covered with polyester.

The net fittings are made of polyamide.

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.

Everything you need to know about the materials used by Proludic
