Proludic UK
Ring course
J5921®
Sports Equation

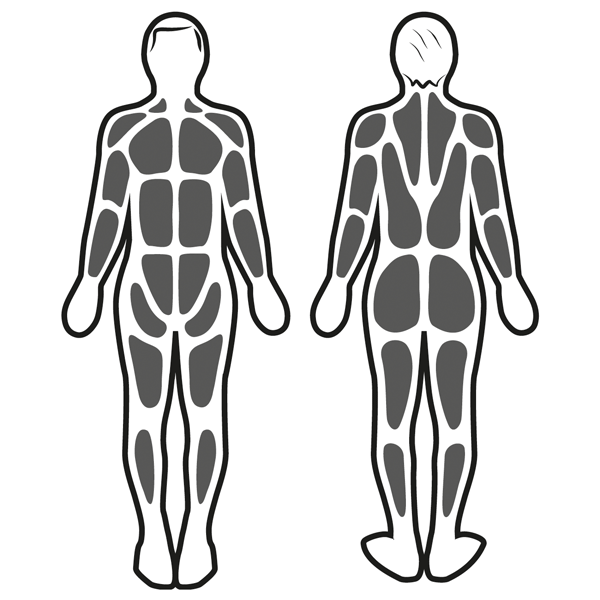

Muscle stimulation

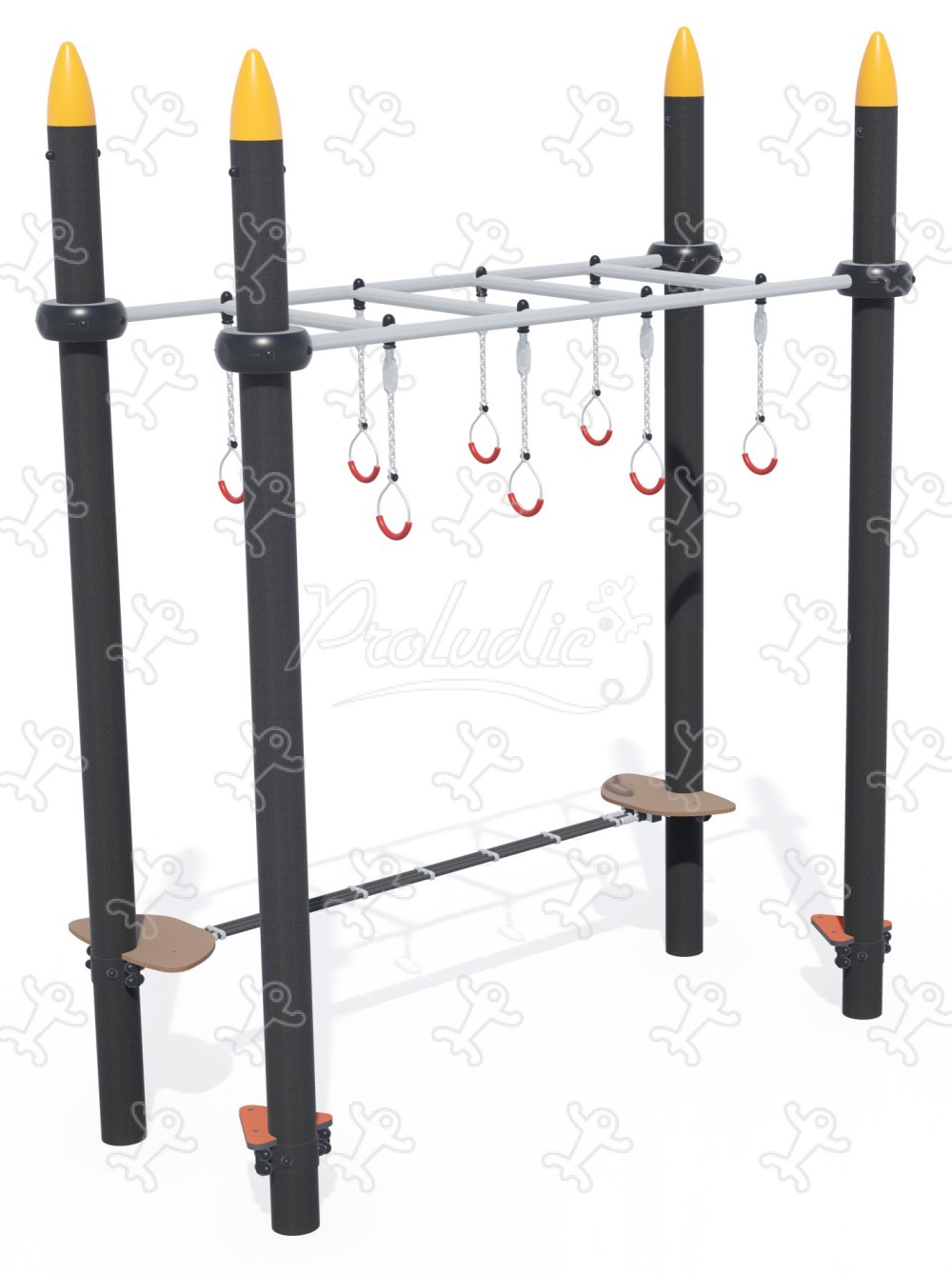

We have created the reference J5921® in our "ACTI’Ninja" range. This play equipment is accessible from 1.40 m. It can accommodate up to 4 users.

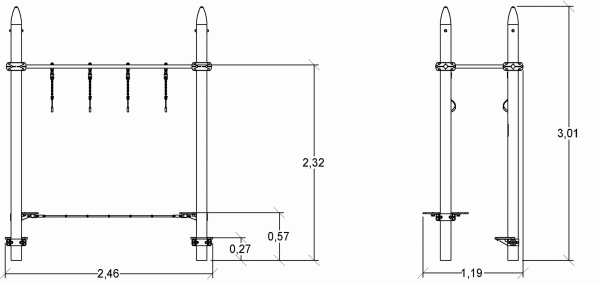

The size of the module is: 2.46 m length, 1.19 m width, 3.01 m. high. The free fall height (FFH) is 2.32 m.
| Minimum size: | > 1.40 m |
| Number of users: | 4 users |
| FFH : | 2.32 m |
| Size: | 2.46 x 1.19 x 3.01 m |
| Number of installers: | 2 |
| Installation time: | 02:00:00 |
| Concrete volume: | 0.26 m3 |
| Surface: | 32.00 m2 |
| Total weight: | 163.14 kg |
| Weight of the heaviest element: | 25.81 kg |
Repairability
8.65 /10
The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... rotary moulded polyethylene. Read more
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
Injection moulded polyamide fixings connect the posts with the platforms and the various play feautures.
The rings are made of 7mm diameter galvanised steel covered with rubber.
The chains are made of stainless steel.
The strap is made of 3 ropes linked together with aluminium pliers. Each rope, of 16mm diameter, is made up of galvanized steel cables covered in polypropylene.
The steps are made from a 18mm thick, non-slip polyethylene material.
The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
