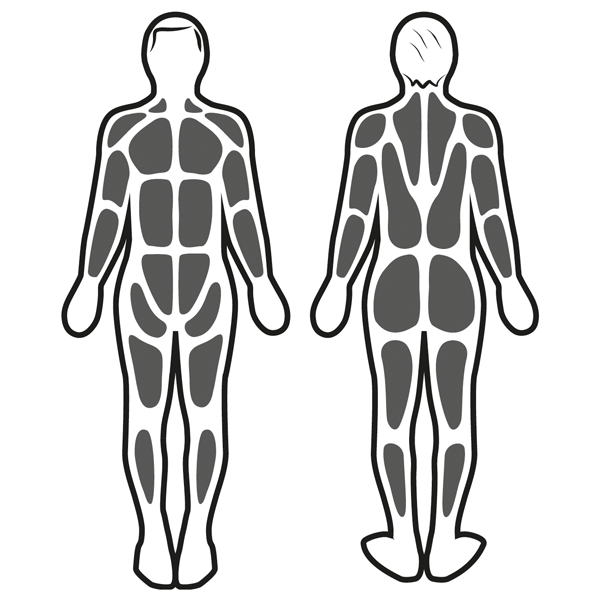

Muscle stimulation

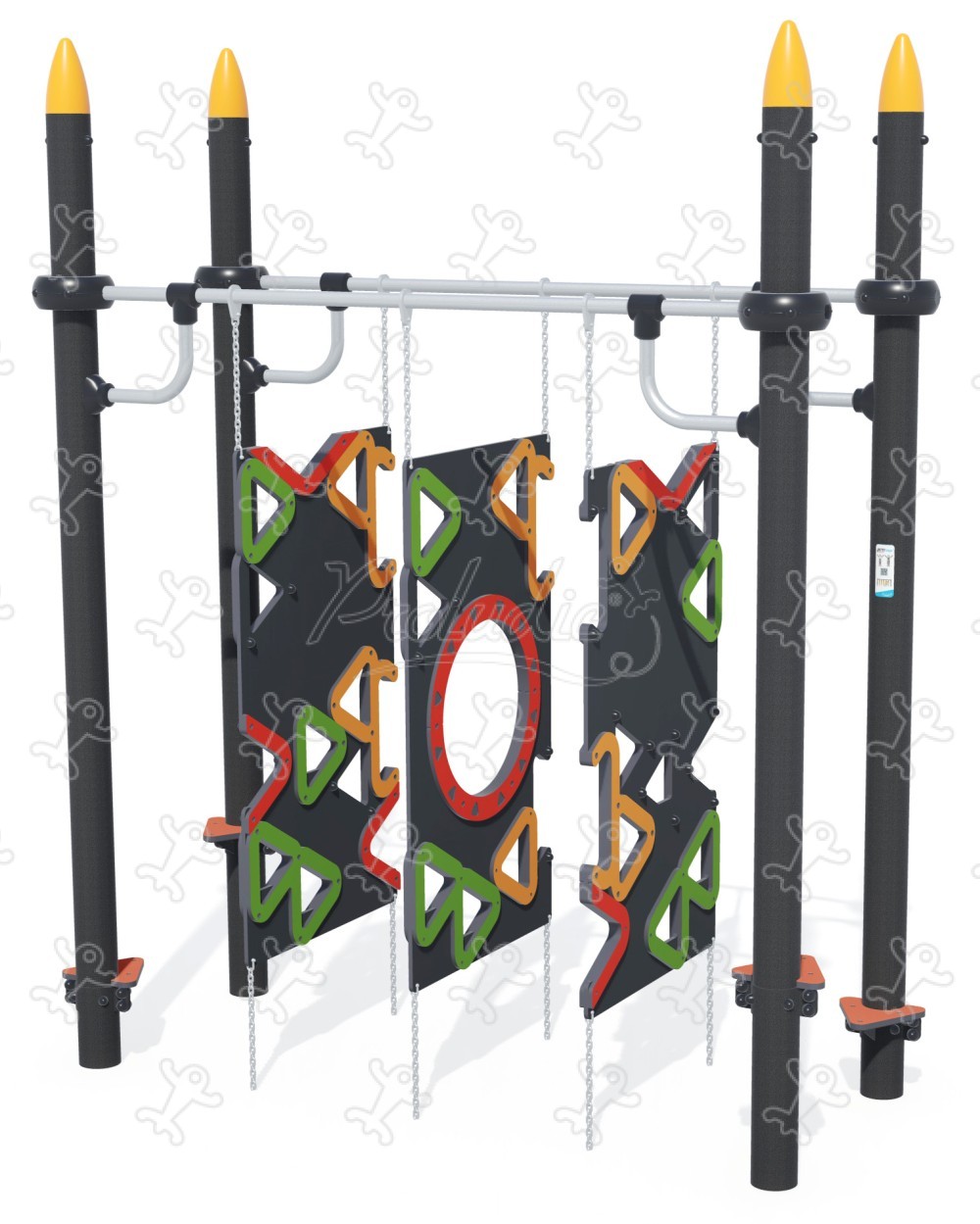

ACTI’Ninja - Pass-wall - J5920®

We have created the reference J5920® in our "ACTI’Ninja" range. This play equipment is accessible from 1.40 m. It can accommodate up to 8 users.

The size of the module is: 2.46 m length, 1.04 m width, 3.01 m. high. The free fall height (FFH) is 2.32 m.

4 sports activities

Balancing x1

Getting across x1

Climbing x1

Hanging x1

Specifications

Minimum size:	> 1.40 m
Number of users:	8 users
FFH :	2.32 m
Size:	2.46 x 1.04 x 3.01 m

Equipment installation

Number of installers:	2
Installation time:	02:00:00
Concrete volume:	0.40 m3
Surface:	30.00 m2
Total weight:	267.91 kg
Weight of the heaviest element:	38.22 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... rotary moulded polyethylene. Read more

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play feautures.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
