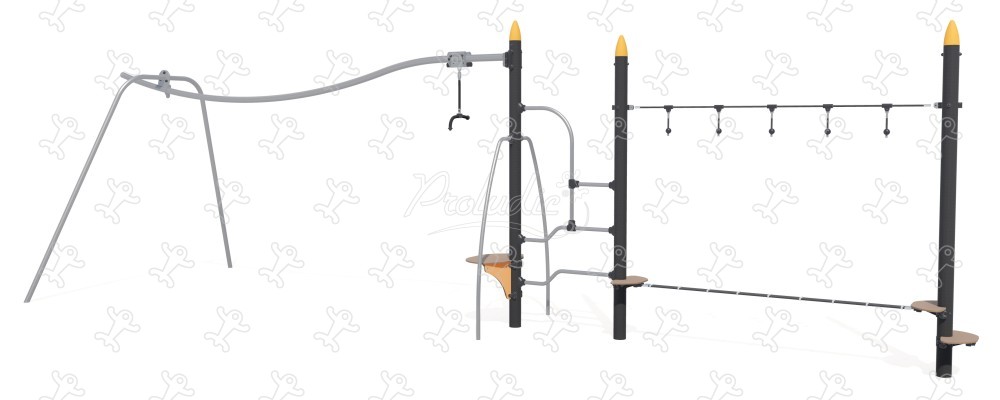

Aerial crossing and Skyrail - Ninja trail equipment for children - J5913®

We have created the reference J5913® in our "ACTI’Ninja" range. This play equipment is accessible from 1.40 m. It can accommodate up to 4 users.

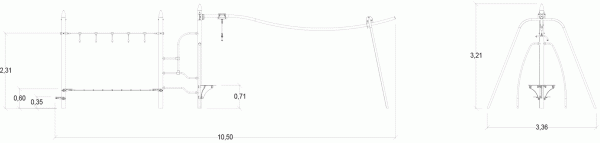

The size of the module is: 10.50 m length, 3.39 m width, 3.21 m. high. The free fall height (FFH) is 1.49 m.

In short

Sports Equation

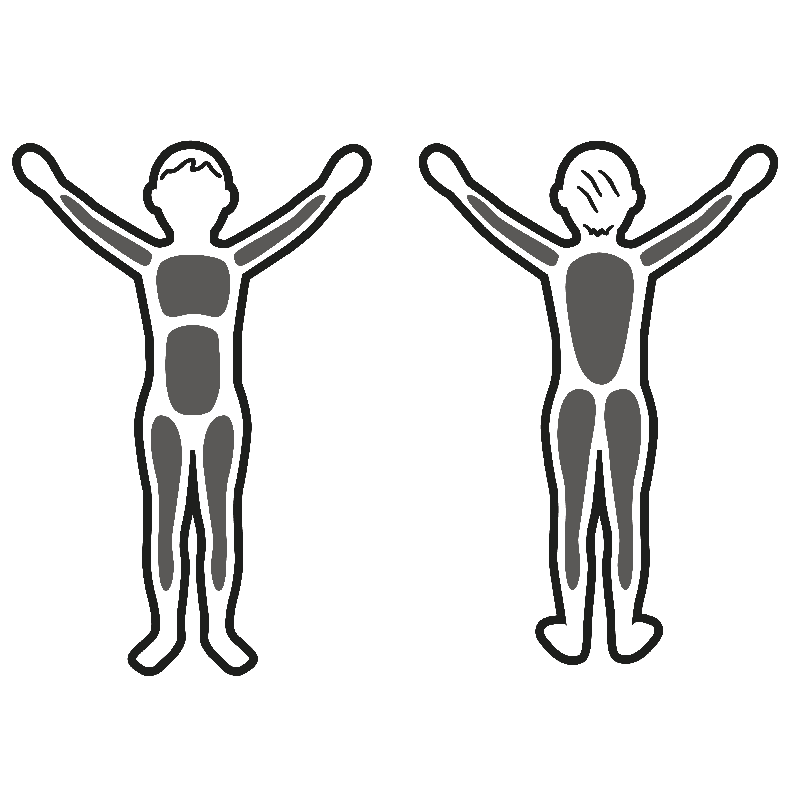

Muscle stimulation

Movement

6 sports activities

Balancing x1

Getting across x2

Climbing x1

Sliding x1

Hanging x1

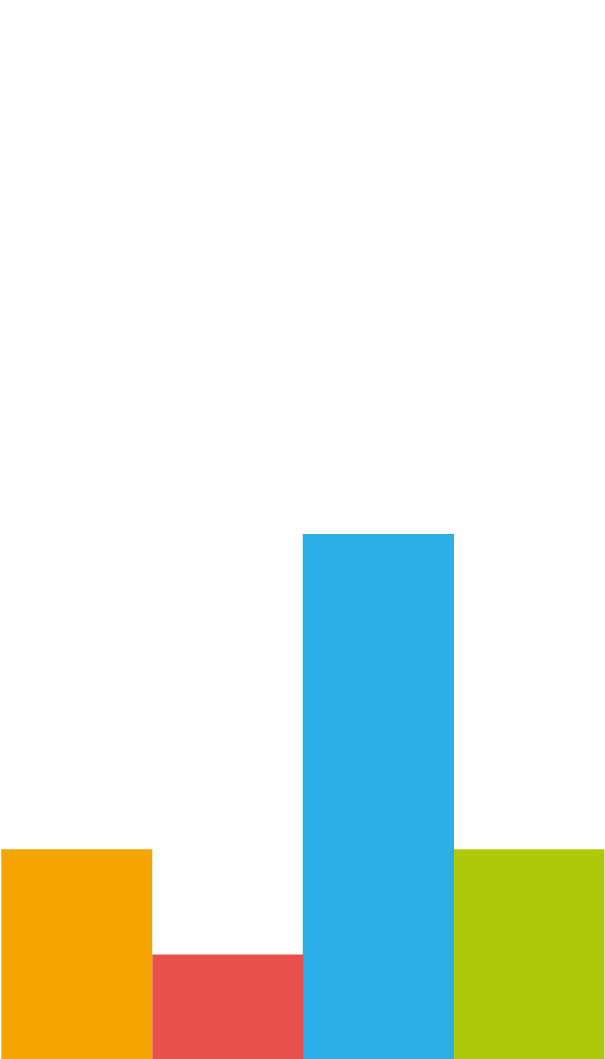

4 recreational sport motivations

Sensations

Progressive design

Sharing

Challenge

Specifications

Minimum size:	> 1.40 m
Number of users:	4 users
FFH :	1.49 m
Size:	10.50 x 3.39 x 3.21 m

Equipment installation

Number of installers:	2
Installation time:	08:00:00
Concrete volume:	0.89 m3
Surface:	54.00 m2
Total weight:	227.25 kg
Weight of the heaviest element:	42.44 kg

Environmental Indicators

Repairability

9.17 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

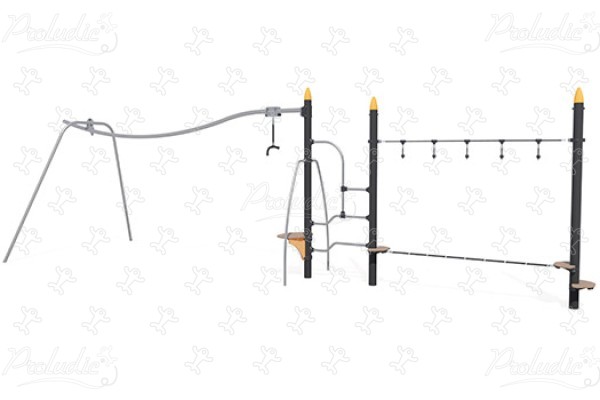

Aerial crossing J5913® playgrounds acti’fun acti’ninja image 3d

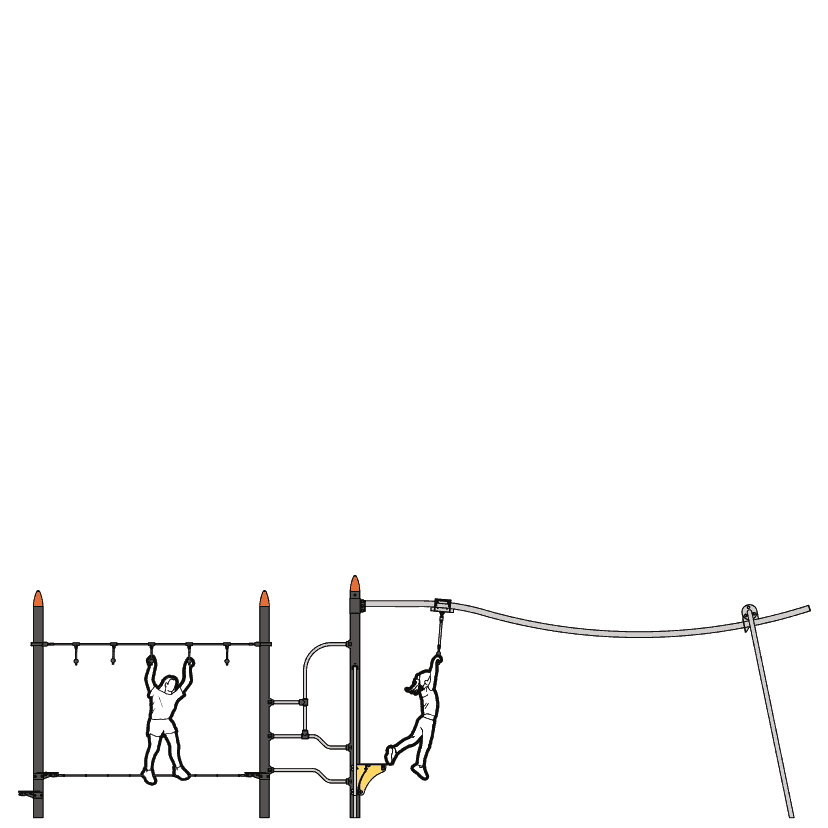

Aerial crossing J5913® playgrounds acti’fun acti’ninja image side view

Aerial crossing J5913® playgrounds acti’fun acti’ninja image view from above

Materials

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... rotary moulded polyethylene. Read more

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The 16mm diameter rope is made of galvanised steel cable covered with polyester.

The cables are linked together and held in place by injected polyamide spheres.

The strap is made of 3 ropes linked together with aluminium pliers. Each rope, of 16mm diameter, is made up of galvanized steel cables covered in polypropylene.
