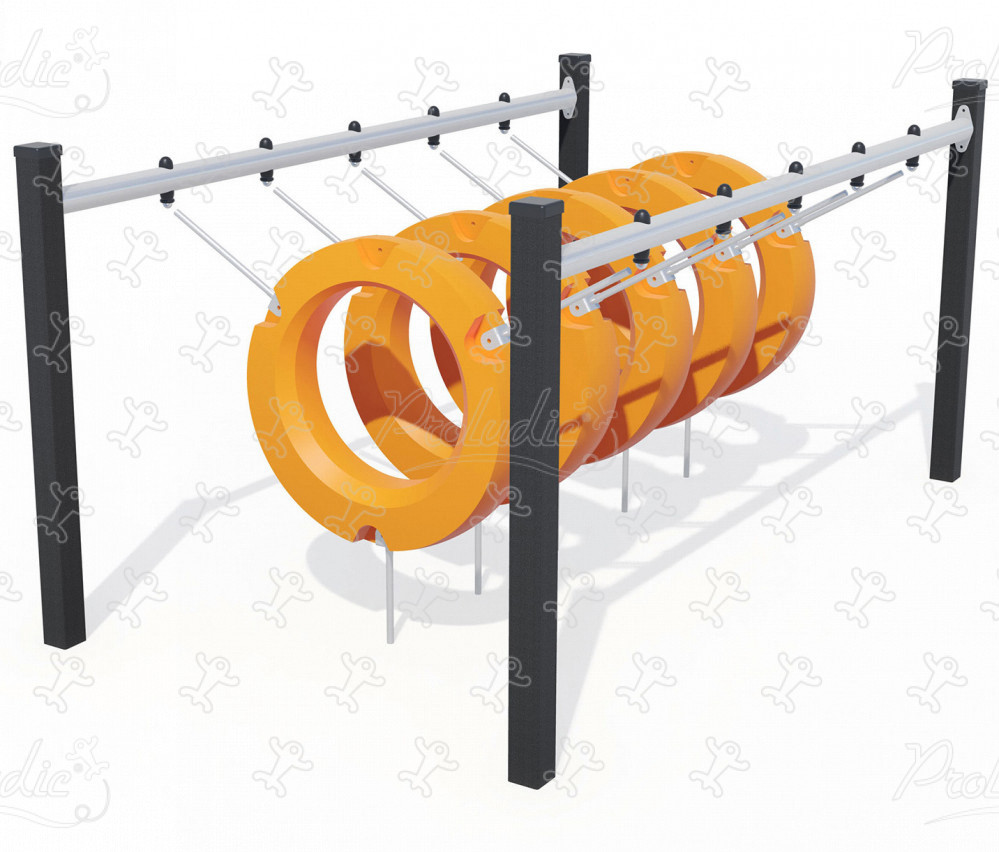

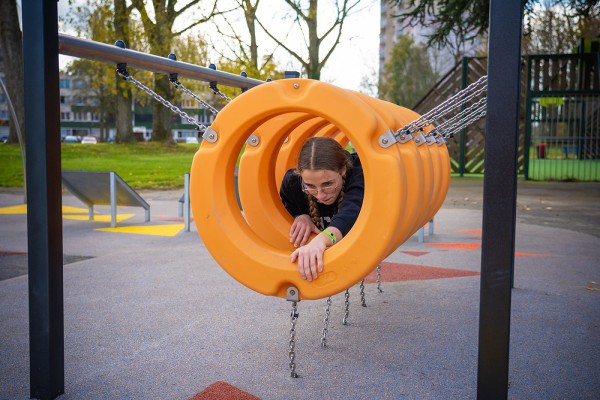

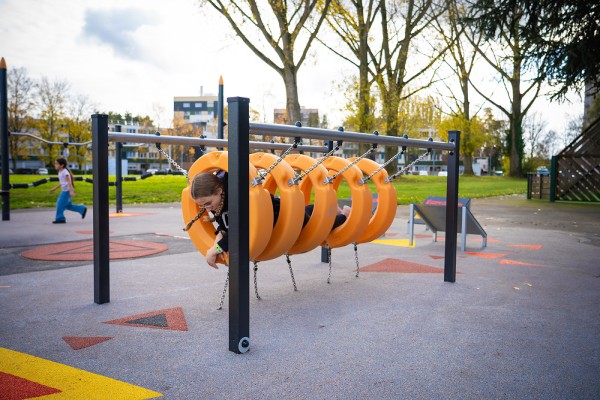

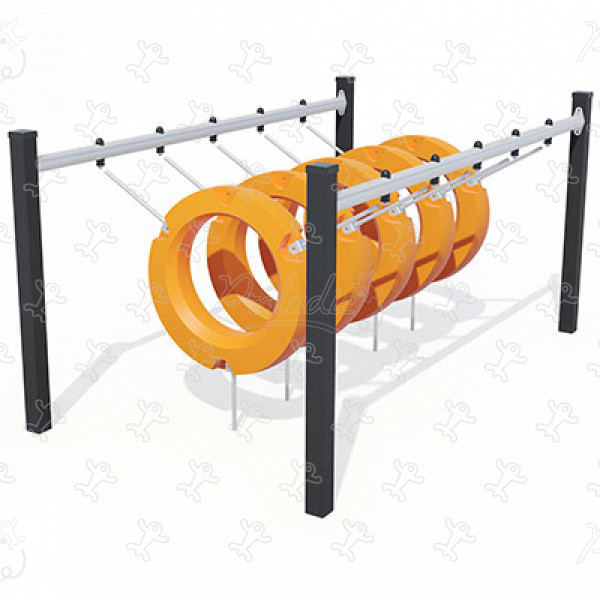

ACTI’Ninja - Suspended tunnel - J5909®

We have created the reference J5909® in our "ACTI’Ninja" range. This play equipment is accessible from 1.40 m. It can accommodate up to 3 users.

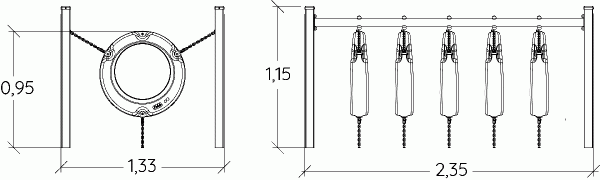

The size of the module is: 2.35 m length, 1.33 m width, 1.15 m. high. The free fall height (FFH) is 1.10 m.

3 sports activities

Balancing x1

Crawling x1

Getting across x1

2 ludo-sport motivations

Sensations

Challenge

Specifications

Minimum size:	> 1.40 m
Number of users:	3 users
FFH :	1.10 m
Size:	2.35 x 1.33 x 1.15 m

Equipment installation

Number of installers:	2
Installation time:	01:00:00
Concrete volume:	0.25 m3
Surface:	21.50 m2
Total weight:	91.04 kg
Weight of the heaviest element:	10.68 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Video - ACTI’Ninja - Suspended tunnel - J5909®

Materials

The 70 x 70mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

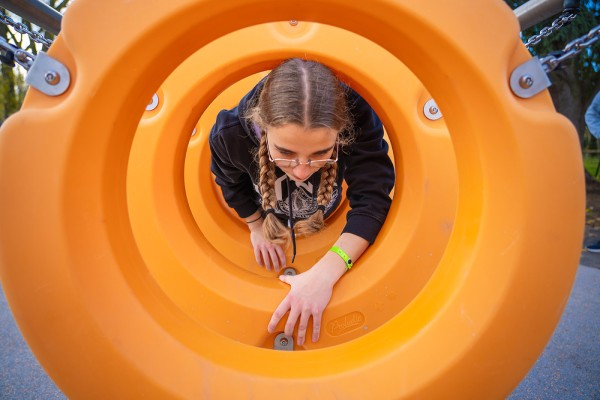

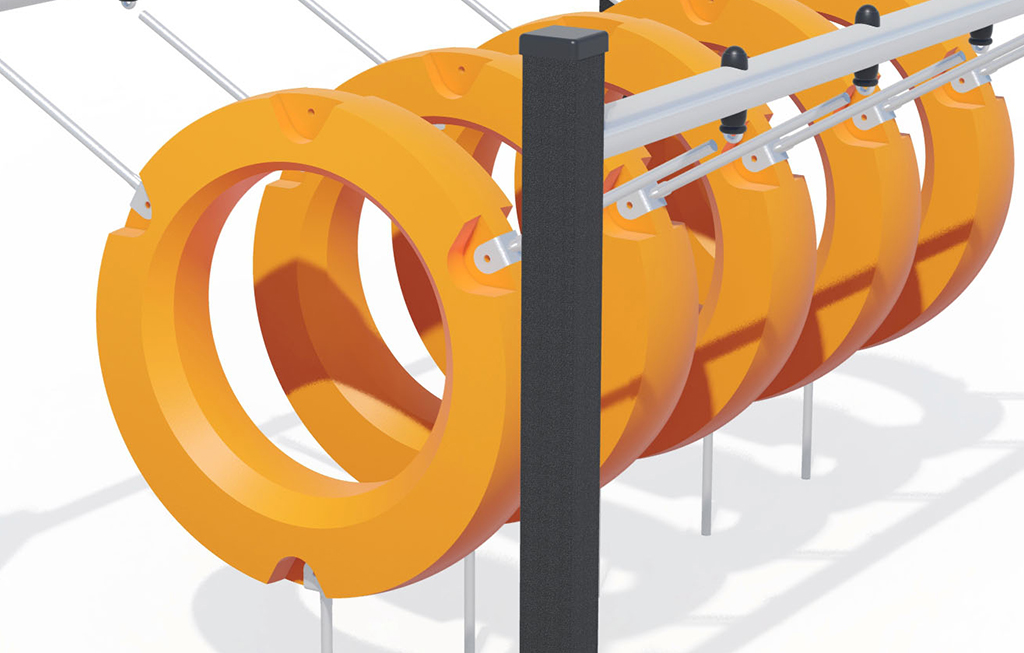

The rubber ring is a monobloc element made of polyethylene with an outside diameter of 70cm and inside diameter of 45cm.

The chains are made of stainless steel.

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.

Everything you need to know about the materials used by Proludic
