ACTI’Ninja - Climbing slope - J5906®

We have created the reference J5906® in our "ACTI’Ninja" range. This play equipment is accessible from 1.40 m. It can accommodate up to 2 users.

The size of the module is: 3.11 m length, 1.08 m width, 1.64 m. high. The free fall height (FFH) is 1.65 m.

3 sports activities

Getting across x1

Climbing x2

4 ludo-sport motivations

Sensations

Progressive design

Sharing

Challenge

Specifications

Minimum size:	> 1.40 m
Number of users:	2 users
FFH :	1.65 m

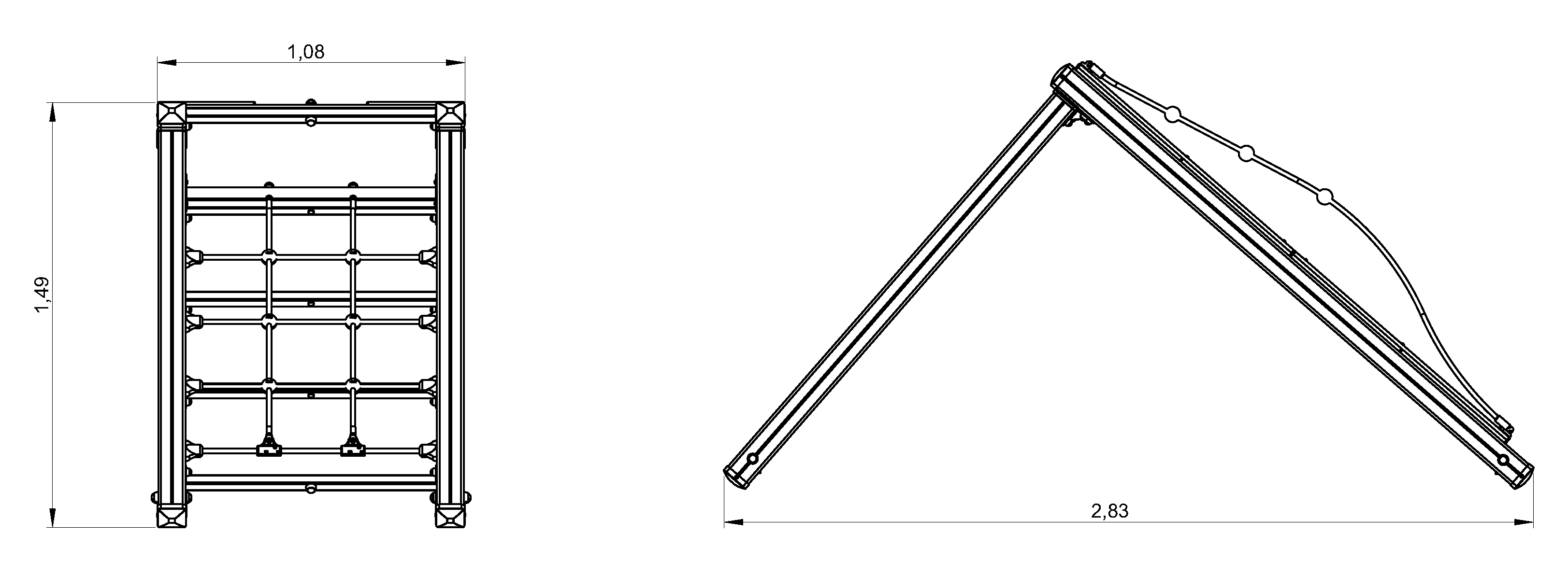

Size:	3.11 x 1.08 x 1.64 m

Equipment installation

Number of installers:	2
Installation time:	03:00:00
Concrete volume:	0.11 m3

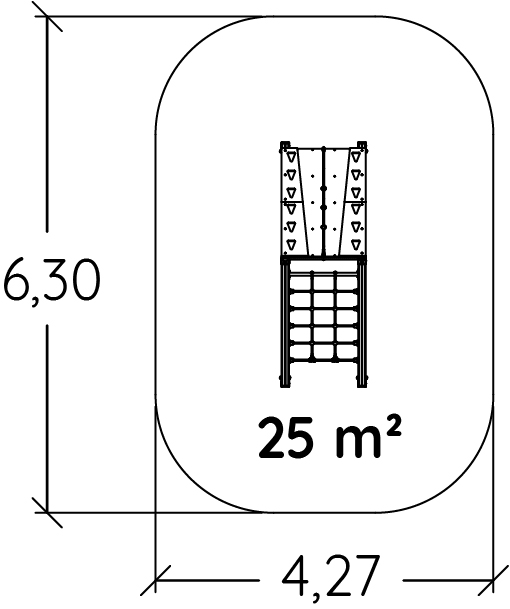

Surface:	25.00 m2
Total weight:	143.32 kg
Weight of the heaviest element:	40.00 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Video - ACTI’Ninja - Climbing slope - J5906®

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

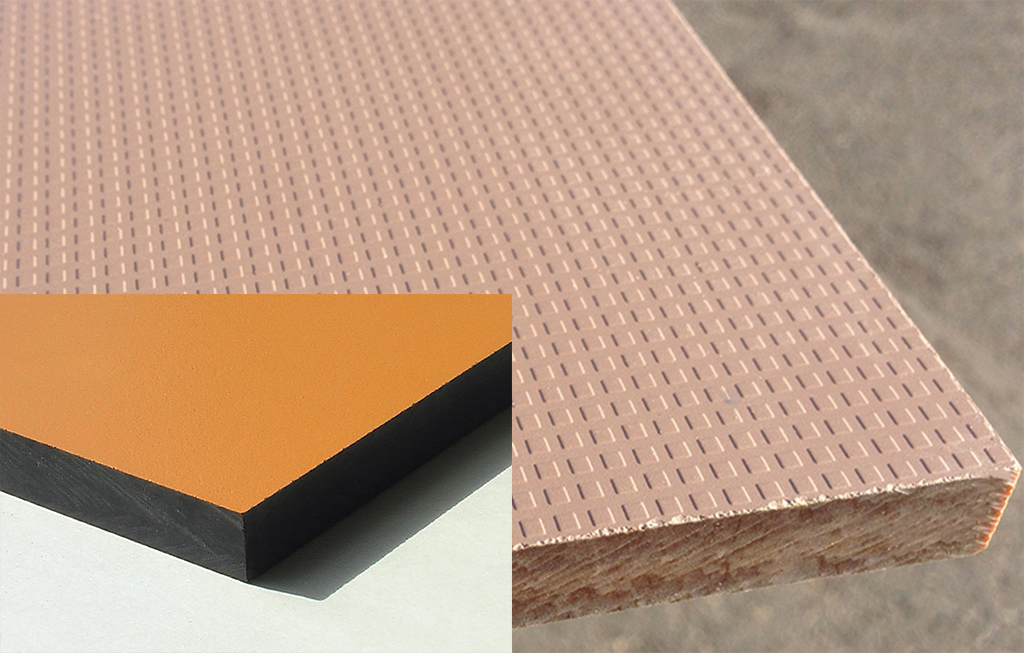

The plate is machined from non-slip polyethylene panels with a thickness of 12mm in which are embedded compact panels (HPL). The non-slip polyethylene offers... an excellent level of grip and performance over obstacles. Robust in construction, the compact material (HPL) has excellent weather and vandal resistance properties. Read more
