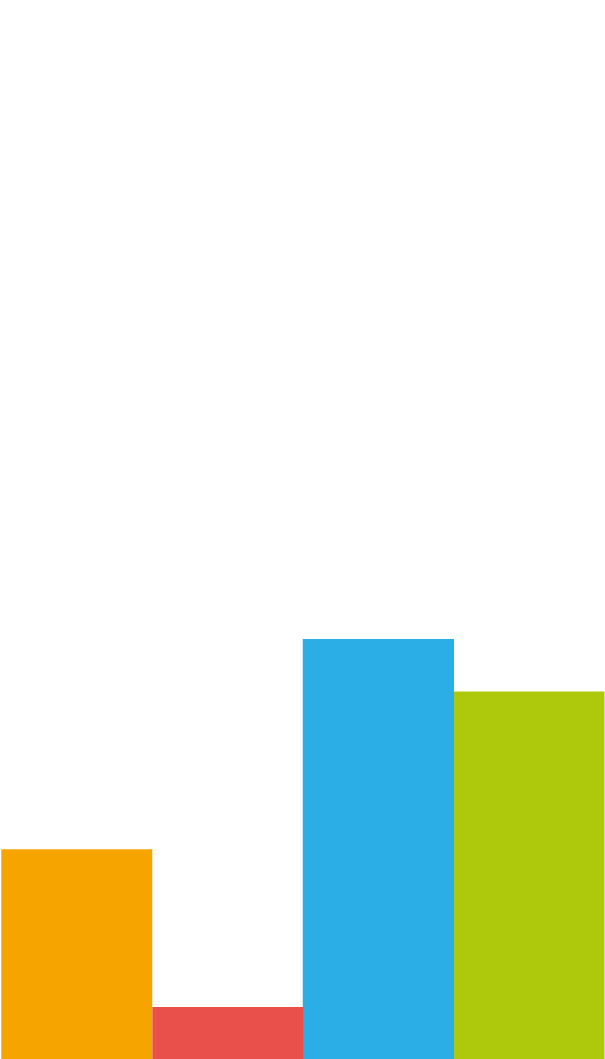

Sports Equation

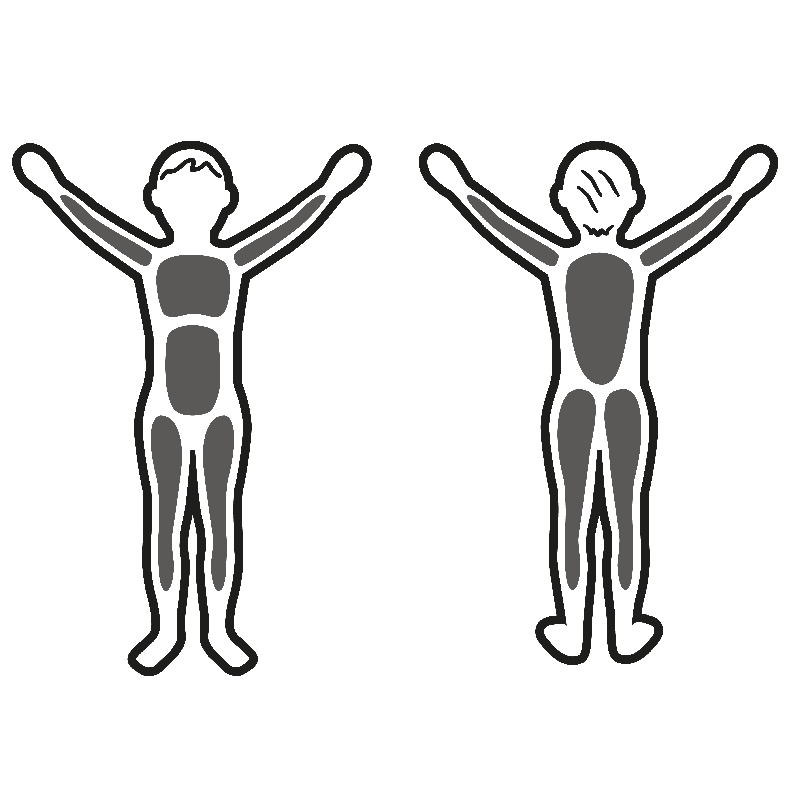

Muscle stimulation

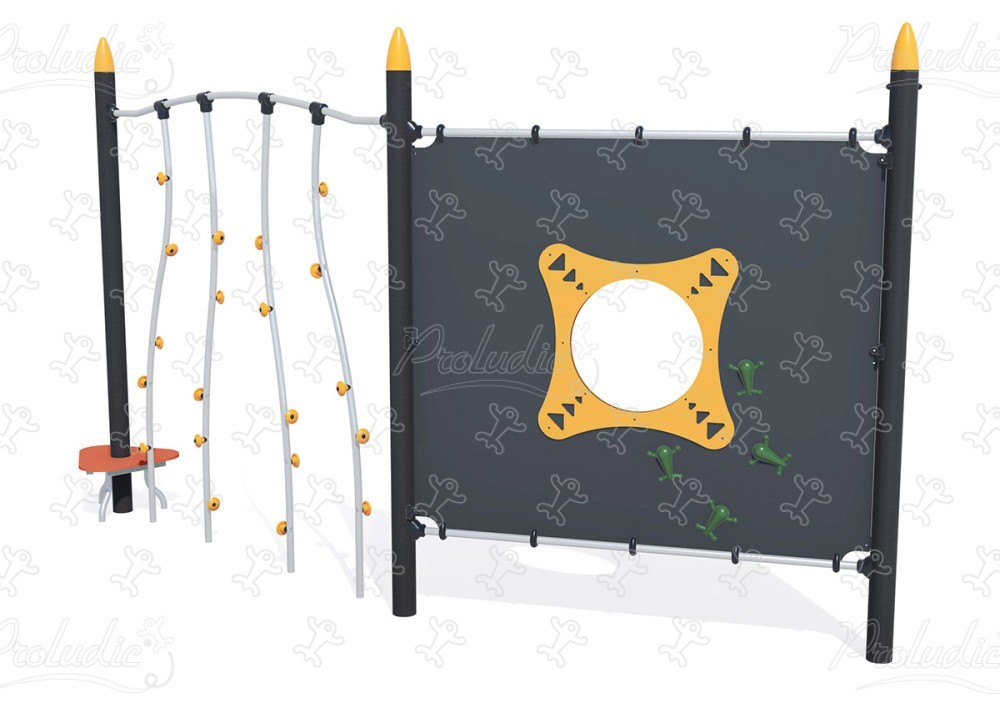

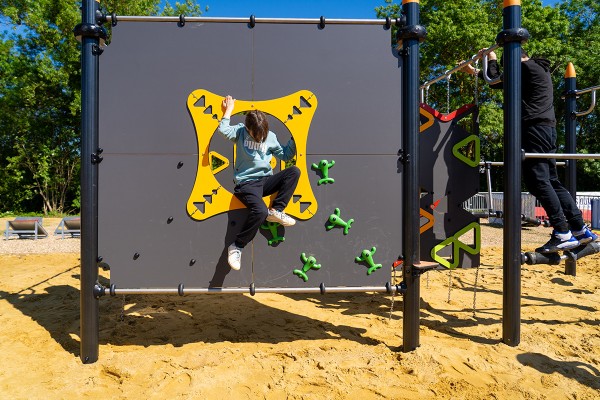

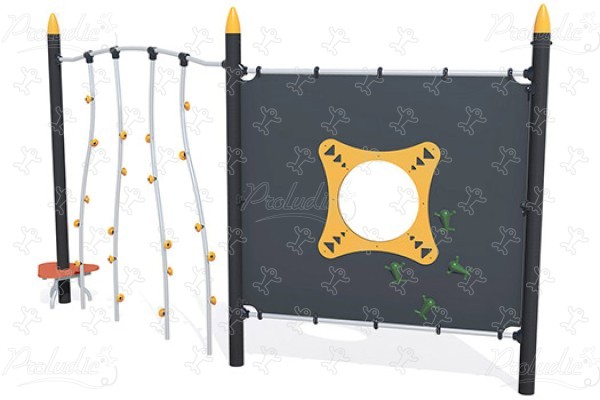

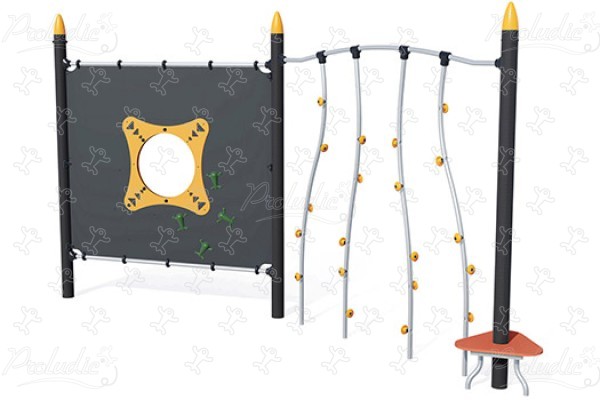

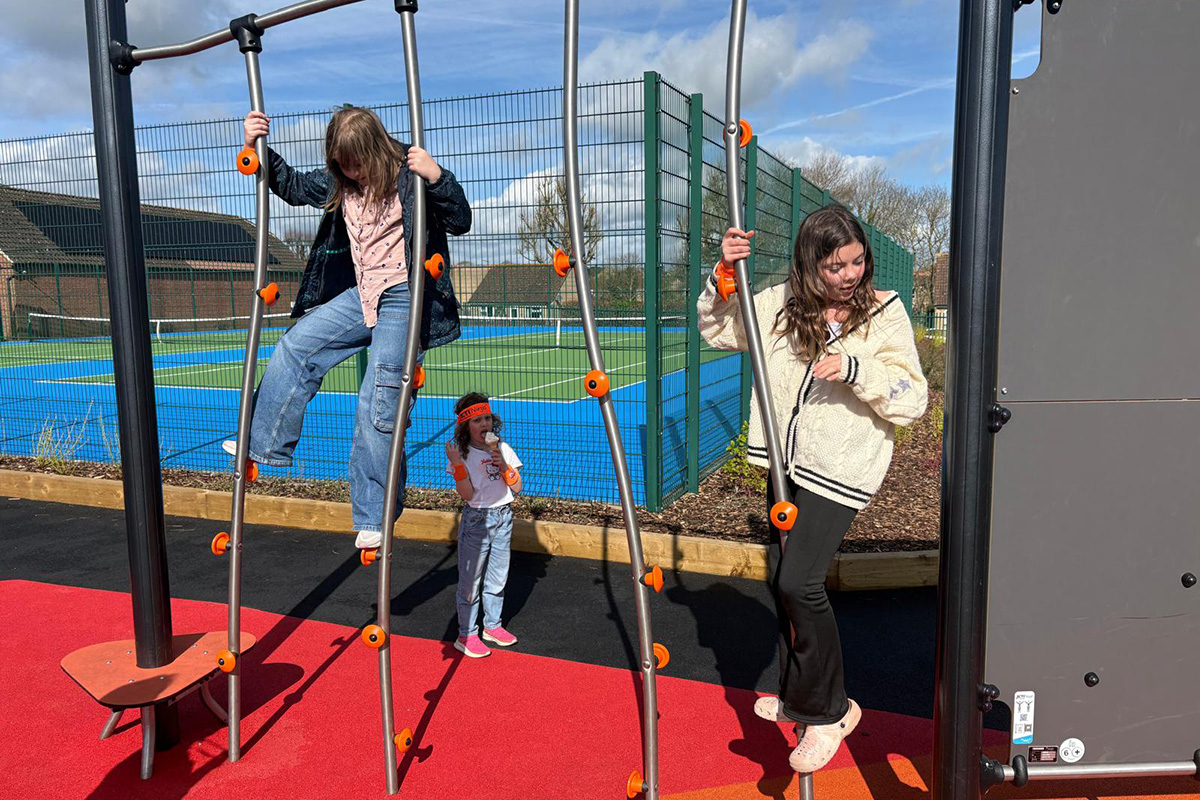

ACTI’Ninja - Climbing module - J5904®

We have created the reference J5904® in our "ACTI’Ninja" range. This play equipment is accessible from 1.40 m. It can accommodate up to 7 users.

The size of the module is: 5.34 m length, 1.61 m width, 3.01 m. high. The free fall height (FFH) is 2.70 m.

4 sports activities

Balancing x1

Getting across x1

Climbing x1

4 ludo-sport motivations

Sensations

Progressive design

Sharing

Challenge

Specifications

Minimum size:	> 1.40 m
Number of users:	7 users
FFH :	2.70 m

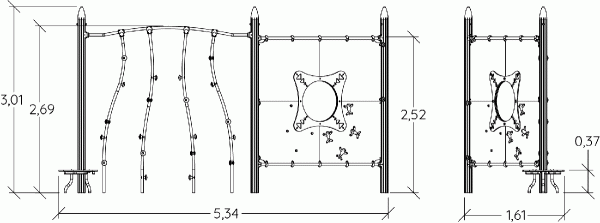

Size:	5.34 x 1.61 x 3.01 m

Equipment installation

Number of installers:	2
Installation time:	04:00:00
Concrete volume:	0.85 m3

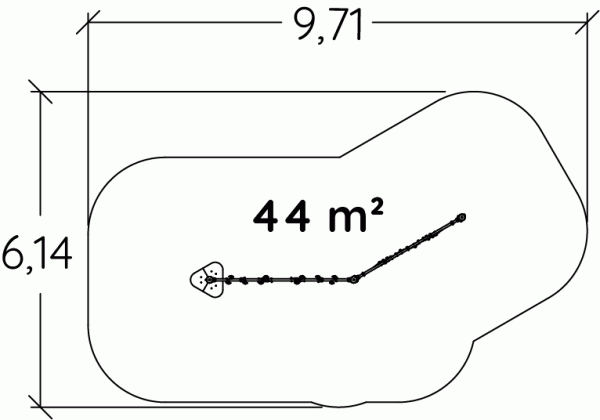

Surface:	44.00 m2
Total weight:	245.52 kg
Weight of the heaviest element:	25.81 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

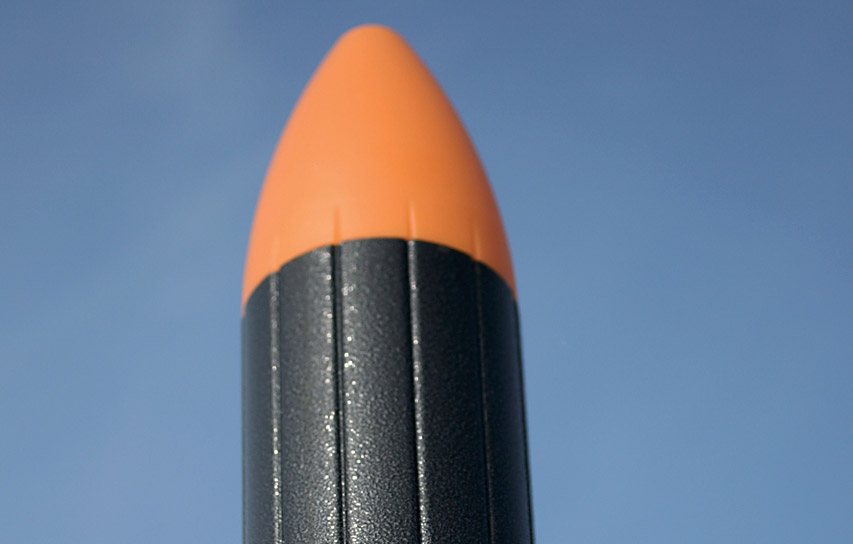

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... rotary moulded polyethylene. Read more

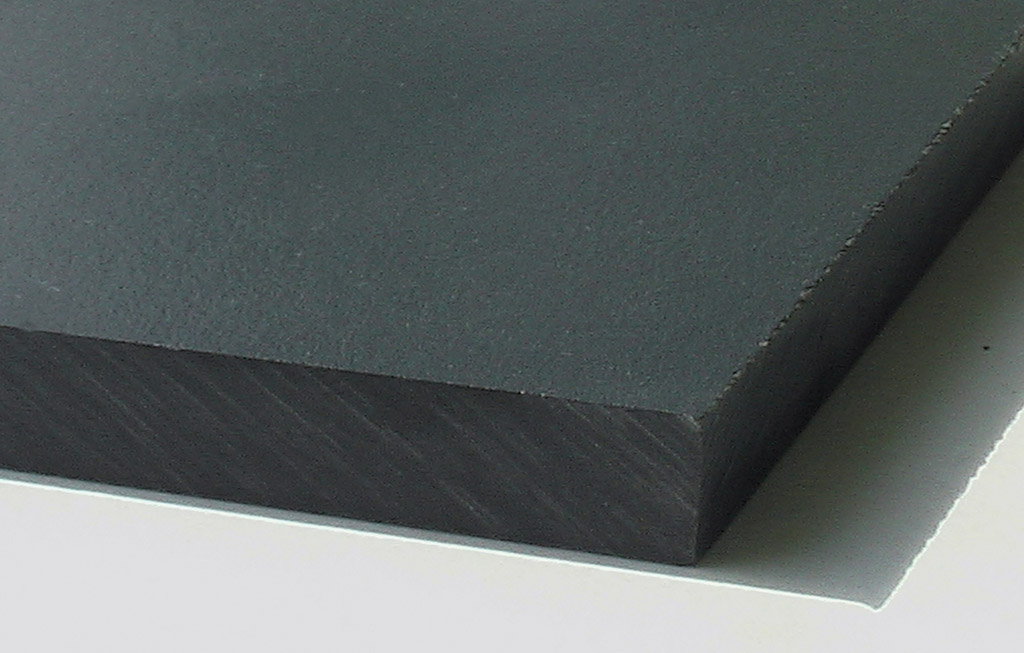

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
