ACTI’Ninja - Steps - J5903®

We have created the reference J5903® in our "ACTI’Ninja" range. This play equipment is accessible from 1.40 m. It can accommodate up to 4 users.

The size of the module is: 1.95 m length, 0.70 m width, 0.27 m. high. The free fall height (FFH) is 0.60 m.

3 sports activities

balancing
Balancing x1
getting across
Getting across x1
jumping
Jumping x1

3 ludo-sport motivations

Sensations
Sensations
Sharing
Sharing
Challenge
Challenge

Specifications

Minimum size: > 1.40 m
Number of users: 4 users
FFH : 0.60 m
Size: 1.95 x 0.70 x 0.27 m

Equipment installation

Number of installers: 2
Installation time: 01:00:00
Concrete volume: 0.14 m3
Surface: 16.50 m2
Total weight: 31.44 kg
Weight of the heaviest element: 12.49 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.
Video - ACTI’Ninja - Steps - J5903®
Video - ACTI’Ninja - Steps - J5903®

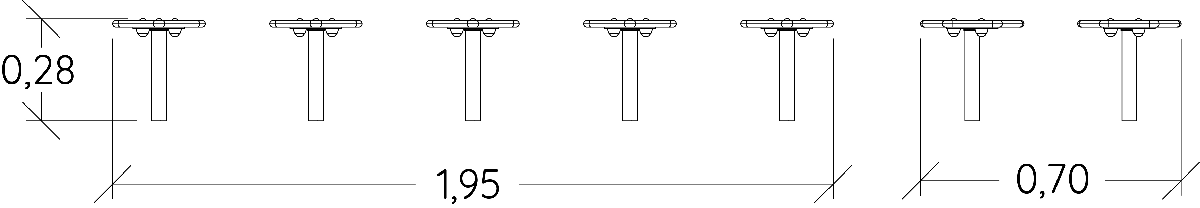

Side view
Side view

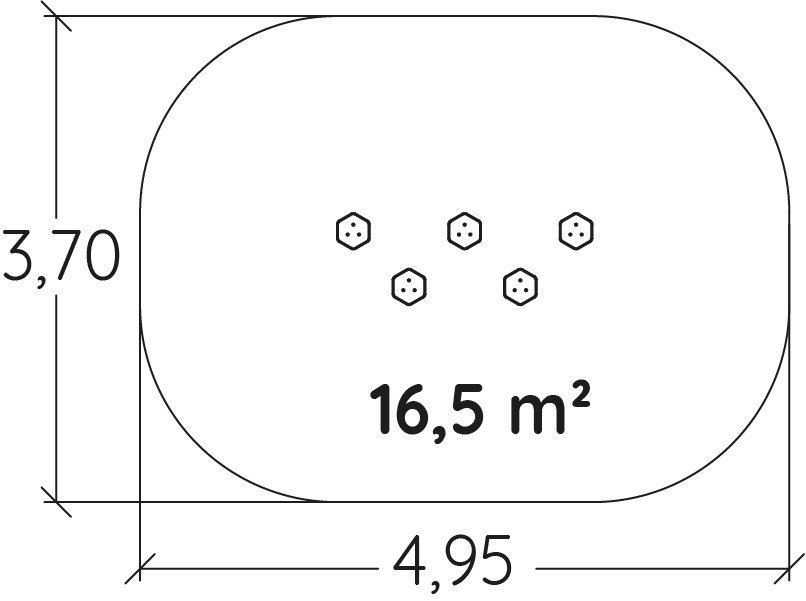

View from above
View from above

Materials

The platform floors

The platform floors are made from a 18mm thick, non-slip polyethylene material.

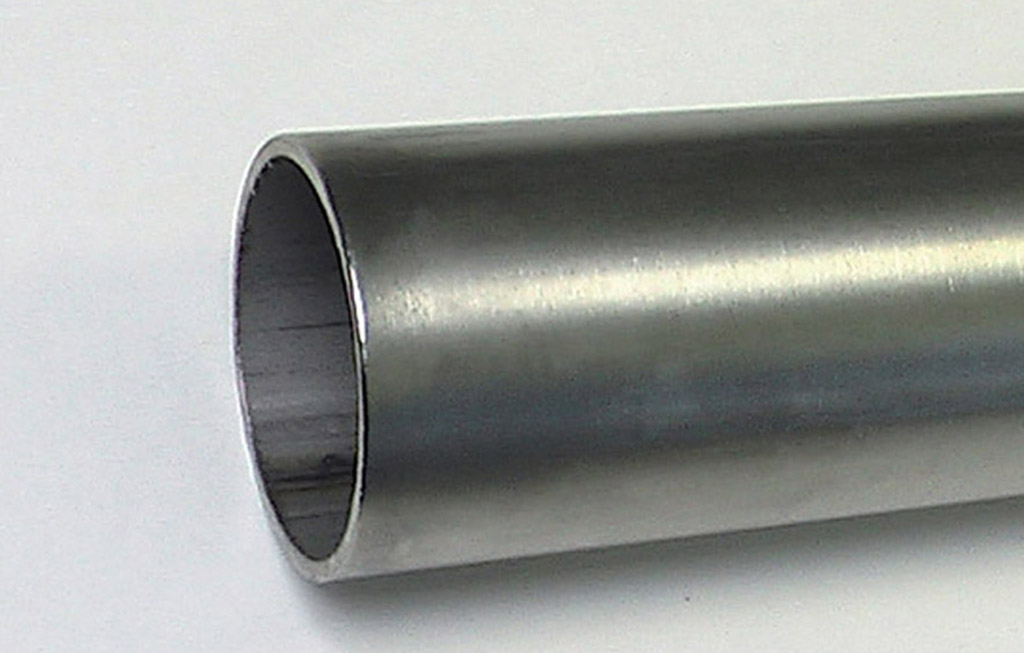

The 40mm diameter supporting posts

The 40mm diameter supporting posts are made of stainless steel.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
