Climbing equipment - J57007

We have created the reference J57007 in our "Climbing equipment" range. This play equipment is accessible from 3 years. It can accommodate up to 22 users.

The size of the module is: 7.83 m length, 4.64 m width, 3.53 m. high. The free fall height (FFH) is 2.00 m.

14 play functions

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Resting x5

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Handling x1

A great exercise for developing motor skills and abilities in young children while having fun.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x2

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Swinging x1

To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.

Tactile stimulation x1

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Specifications

Age range:	3+
Number of users:	22 users
FFH :	2.00 m

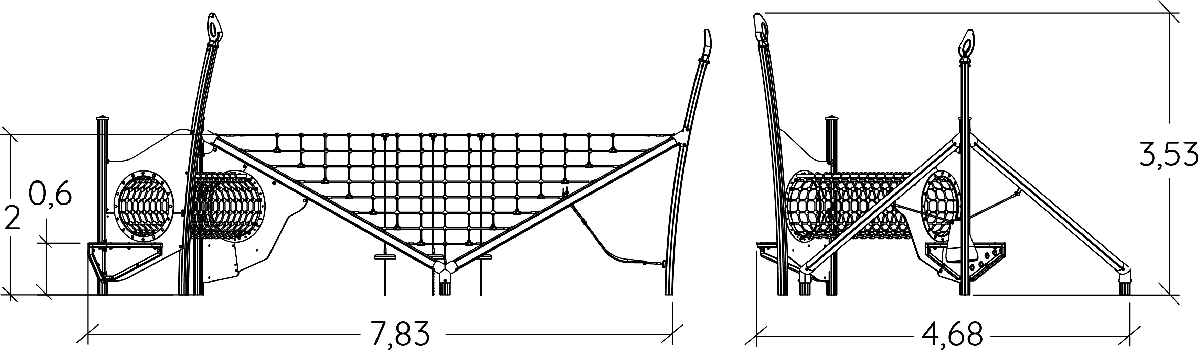

Size:	7.83 x 4.64 x 3.53 m

Equipment installation

Number of installers:	2
Installation time:	11:30:00
Concrete volume:	0.90 m3

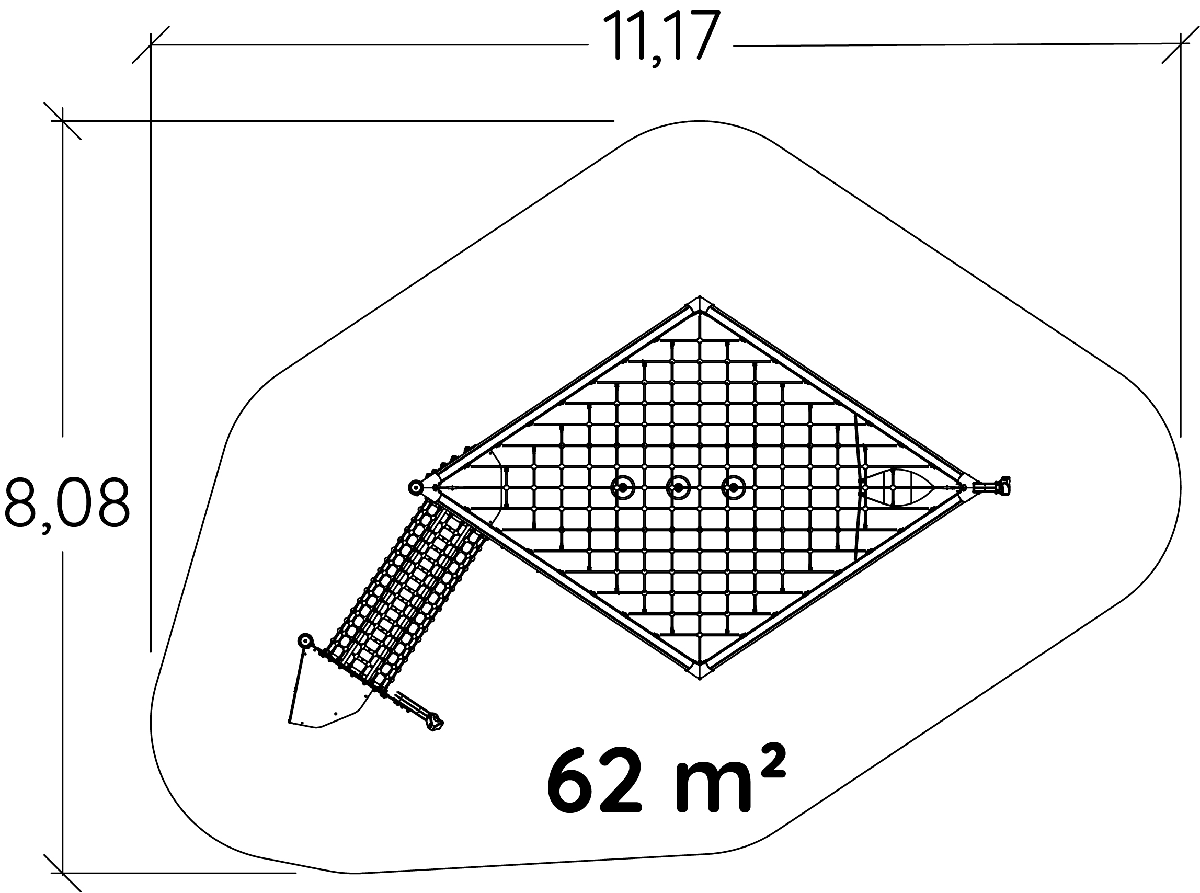

Surface:	62.00 m2
Total weight:	380.78 kg
Weight of the heaviest element:	39.47 kg

Environmental Indicators

Repairability

9.44 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

The caps are made of rotary moulded polyethylene.

The junction pieces are made of painted galvanised steel.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

The steps are made with a non-slip rubber overmould.

The seat is made from rubber, 13mm thick.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
