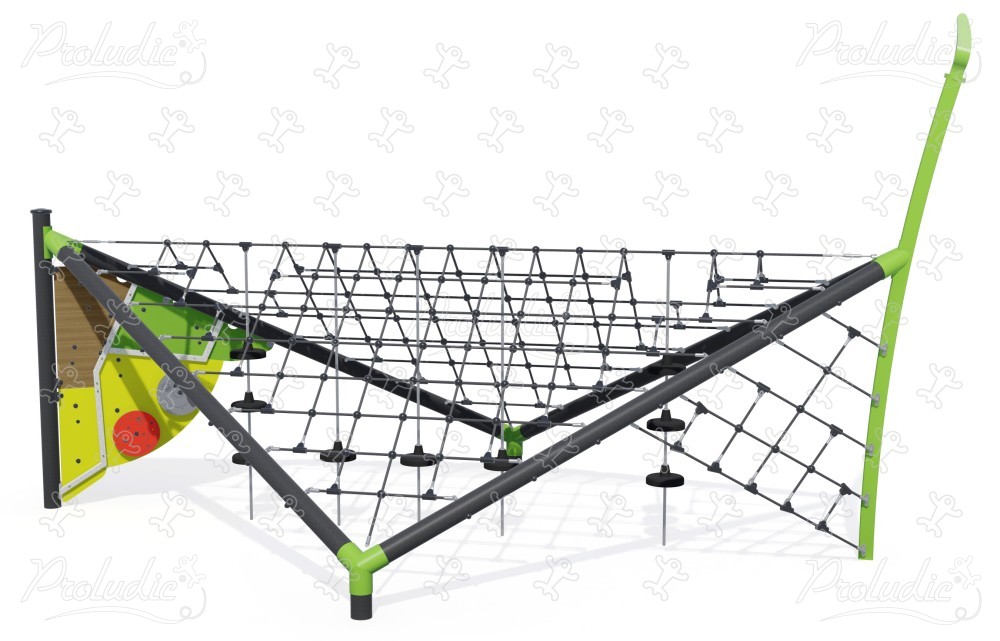

Climbing equipment - J57006

We have created the reference J57006 in our "Climbing equipment" range. This play equipment is accessible from 3 years. It can accommodate up to 20 users.

The size of the module is: 6.53 m length, 4.14 m width, 3.53 m. high. The free fall height (FFH) is 2.00 m.

16 play functions

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Resting x3

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Handling x1

A great exercise for developing motor skills and abilities in young children while having fun.

Sound stimulation x1

Popular and often shared by numerous children, fun sound activities bring even more life to play areas!

Climbing x4

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x2

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Balancing x2

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Tactile stimulation x1

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Visual stimulation x1

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Specifications

Age range:	3+
Number of users:	20 users
FFH :	2.00 m
Size:	6.53 x 4.14 x 3.53 m

Equipment installation

Number of installers:	2
Installation time:	08:00:00
Concrete volume:	1.00 m3
Surface:	52.00 m2
Total weight:	231.99 kg
Weight of the heaviest element:	33.57 kg

Environmental Indicators

Repairability

9.44 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

The caps are made of rotary moulded polyethylene.

The junction pieces are made of painted galvanised steel.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
