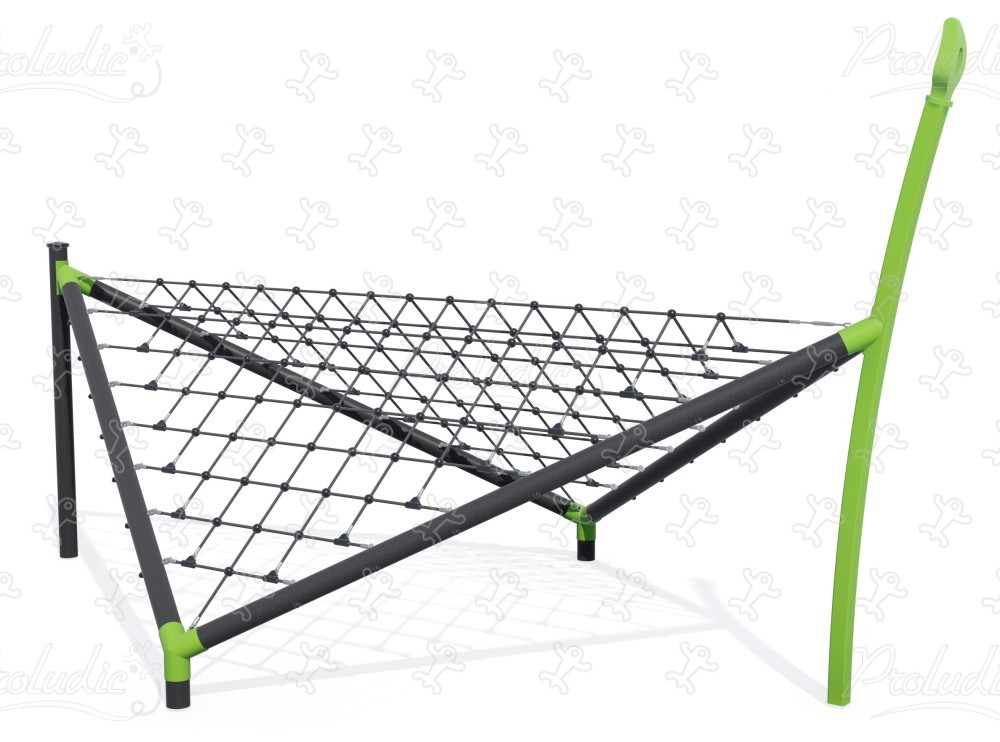

Climbing equipment - J57001

We have created the reference J57001 in our "Climbing equipment" range. This play equipment is accessible from 5 years. It can accommodate up to 10 users.

The size of the module is: 6.53 m length, 4.14 m width, 3.53 m. high. The free fall height (FFH) is 2.00 m.

2 play functions

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	5+
Number of users:	10 users
FFH :	2.00 m

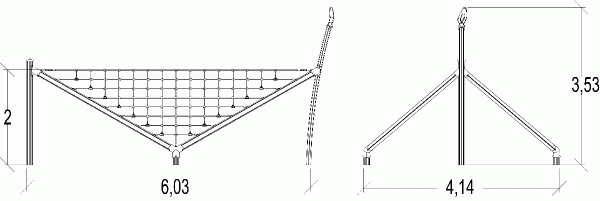

Size:	6.53 x 4.14 x 3.53 m

Equipment installation

Number of installers:	2
Installation time:	06:15:00
Concrete volume:	0.80 m3

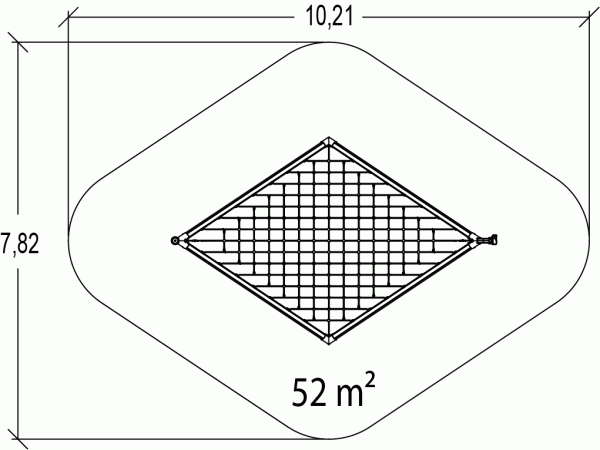

Surface:	52.00 m2
Total weight:	149.34 kg
Weight of the heaviest element:	33.65 kg

Environmental Indicators

Repairability

9.44 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

The caps are made of rotary moulded polyethylene.

The junction pieces are made of painted galvanised steel.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
