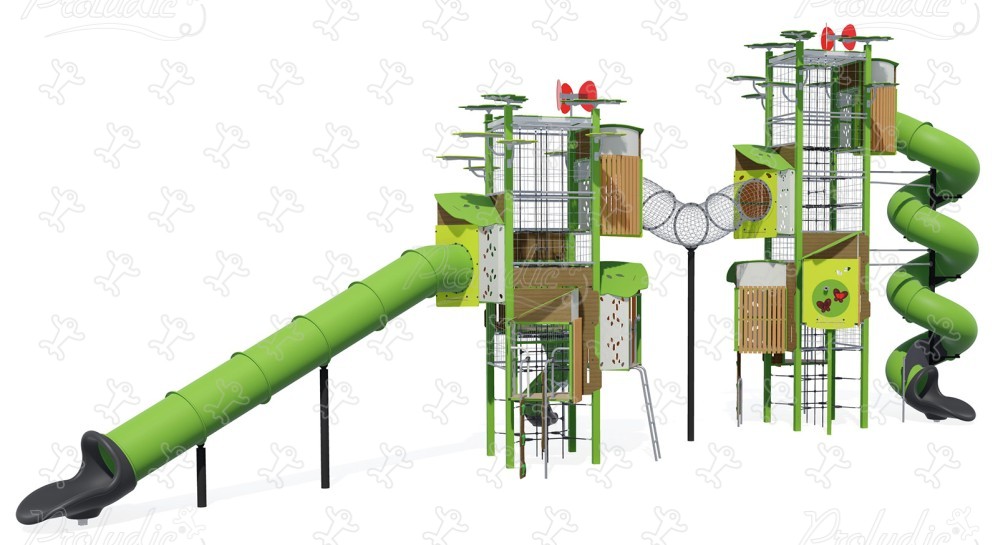

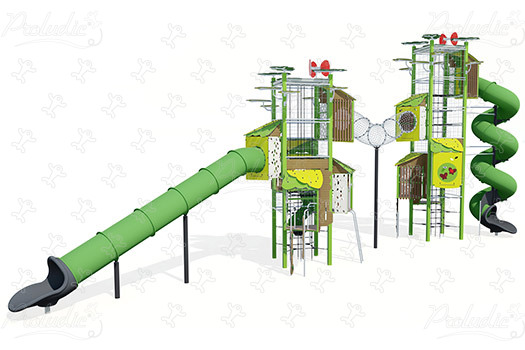

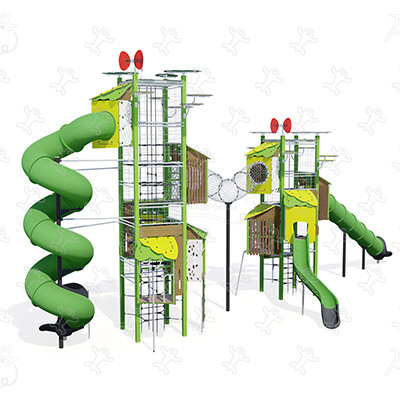

Kanopé - Double Tower - J56103

We have created the reference J56103 in our "Kanopé" range. This play equipment is accessible from 5 years. It can accommodate up to 54 users.

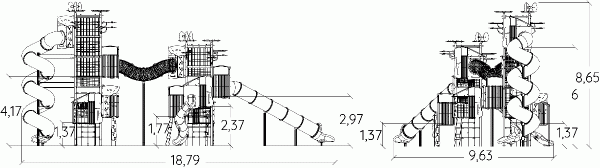

The size of the module is: 18.79 m length, 9.63 m width, 8.66 m. high. The free fall height (FFH) is 2.37 m.

58 play functions

Climbing x2

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Role play x2

Role plays promote the child's intellectual and social skills.

Sliding x4

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

By playing together, children learn how to interact with other personalities and behaviors.

Resting x10

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Hiding x10

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Balancing x3

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Taking shelter x12

A refuge where the children can take shelter ensures that children have their own space.

Sound stimulation x1

Popular and often shared by numerous children, fun sound activities bring even more life to play areas!

Tactile stimulation x1

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Visual stimulation x4

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x3

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x3

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	5+
Number of users:	54 users
FFH :	2.37 m
Size:	18.79 x 9.63 x 8.66 m

Equipment installation

Number of installers:	3
Installation time:	55:00:00
Concrete volume:	2.50 m3

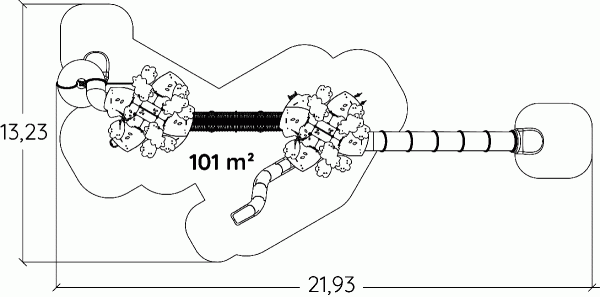

Surface:	101.00 m2
Total weight:	5394.79 kg
Weight of the heaviest element:	78.33 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 120 x 120mm posts are made of painted galvanised steel, ensuring robustness and durability.

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The slatted fences are made of composite wood (slats of 70 x 30 mm), which is a chip and split resistant waterproof material with UV protection.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The wall panels are made of 3mm perforated aluminium sheet coated with a polyester epoxy lacquer.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The panels are made of stainless steel mesh netting, Ø 6mm.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
