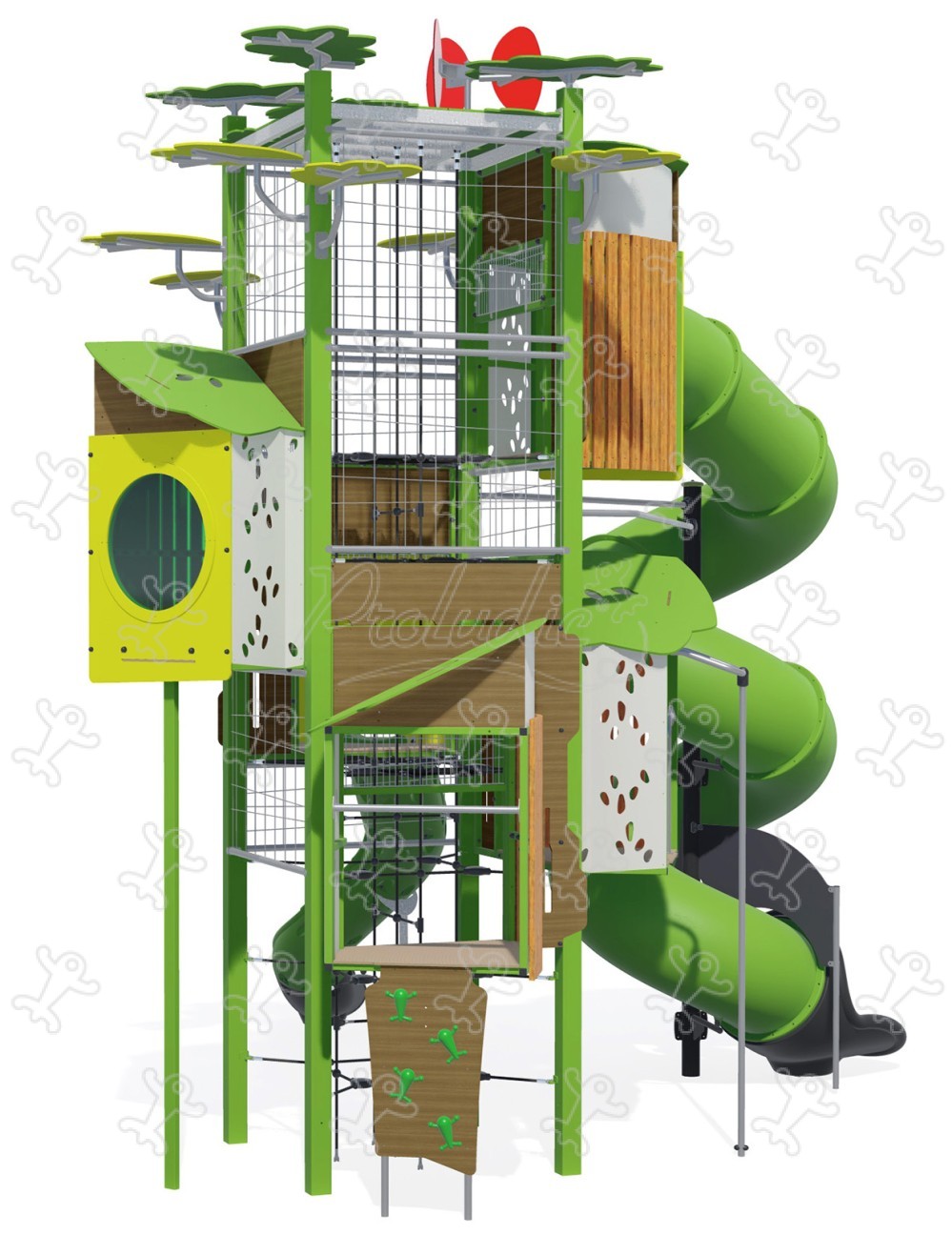

Kanopé - Tower - J56100

We have created the reference J56100 in our "Kanopé" range. This play equipment is accessible from 5 years. It can accommodate up to 25 users.

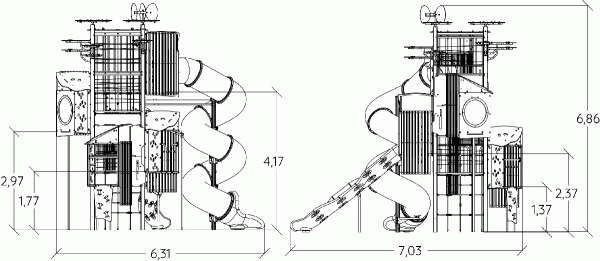

The size of the module is: 7.03 m length, 6.31 m width, 6.86 m. high. The free fall height (FFH) is 2.56 m.

29 play functions

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Role play x1

Role plays promote the child's intellectual and social skills.

Sliding x3

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Resting x5

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Hiding x5

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Taking shelter x6

A refuge where the children can take shelter ensures that children have their own space.

Visual stimulation x2

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Getting across x2

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	5+
Number of users:	25 users
FFH :	2.56 m
Size:	7.03 x 6.31 x 6.86 m

Equipment installation

Number of installers:	3
Installation time:	32:00:00
Concrete volume:	1.20 m3

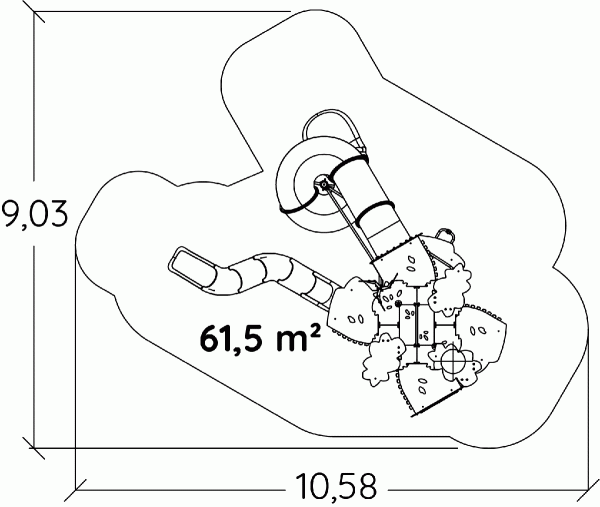

Surface:	61.50 m2
Total weight:	2609.55 kg
Weight of the heaviest element:	78.33 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

The 120 x 120mm posts are made of painted galvanised steel, ensuring robustness and durability.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The slatted fences are made of composite wood (slats of 70 x 30 mm), which is a chip and split resistant waterproof material with UV protection.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The wall panels are made of 3mm perforated aluminium sheet coated with a polyester epoxy lacquer.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The panels are made of stainless steel mesh netting, Ø 6mm.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
