Kanopé - J5603

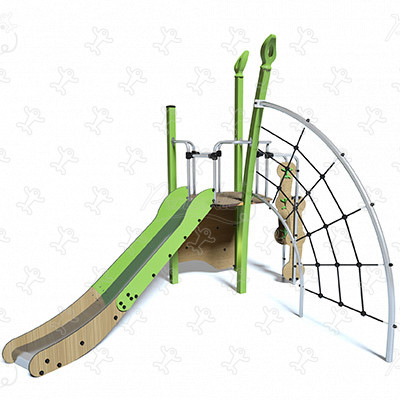

We have created the reference J5603 in our "Kanopé" range. This play equipment is accessible from 3 years. It can accommodate up to 10 users.

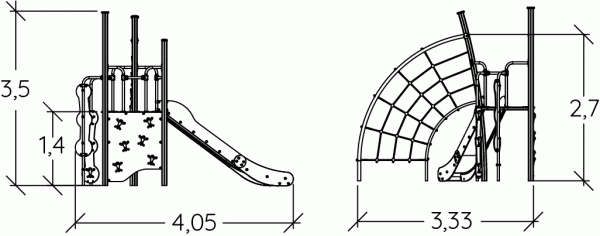

The size of the module is: 4.05 m length, 3.33 m width, 3.50 m. high. The free fall height (FFH) is 2.70 m.

Other finishes available

J5603-C®

7 play functions

Climbing x2

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	3+
Number of users:	10 users
FFH :	2.70 m
Size:	4.05 x 3.33 x 3.50 m

Equipment installation

Number of installers:	2
Installation time:	08:00:00
Concrete volume:	0.30 m3

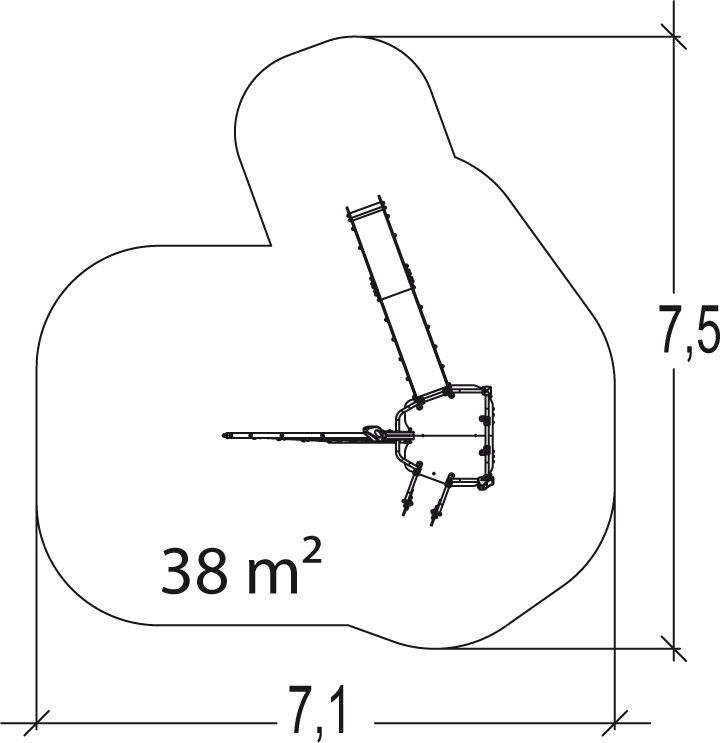

Surface:	38.50 m2
Total weight:	251.97 kg
Weight of the heaviest element:	26.78 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
