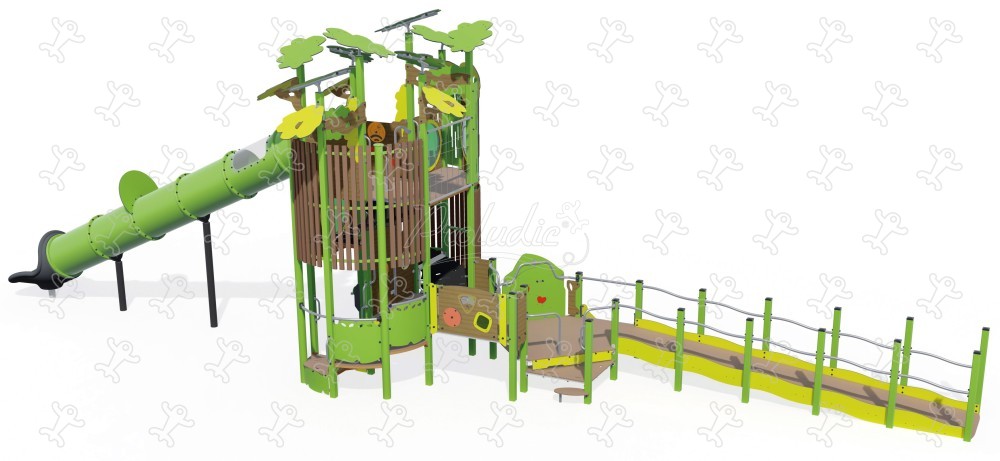

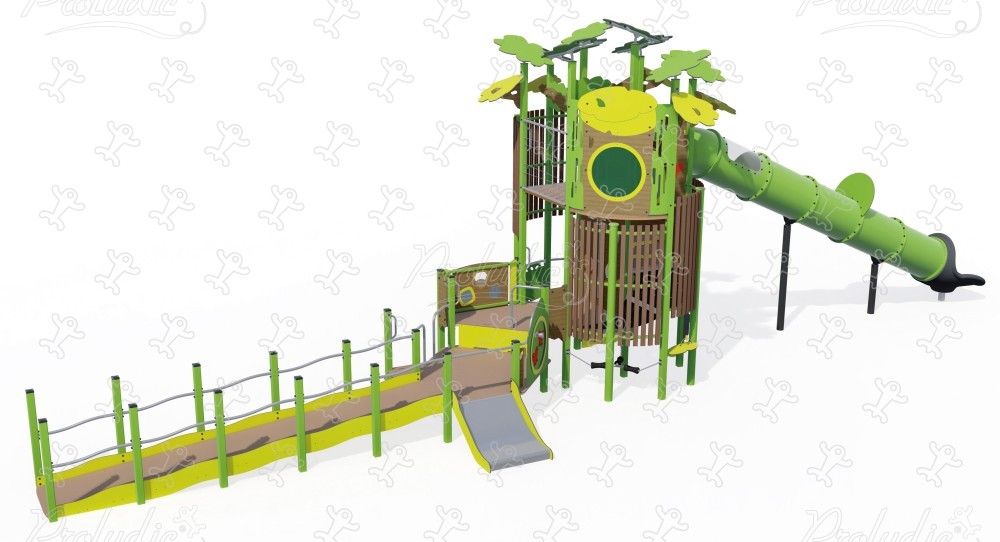

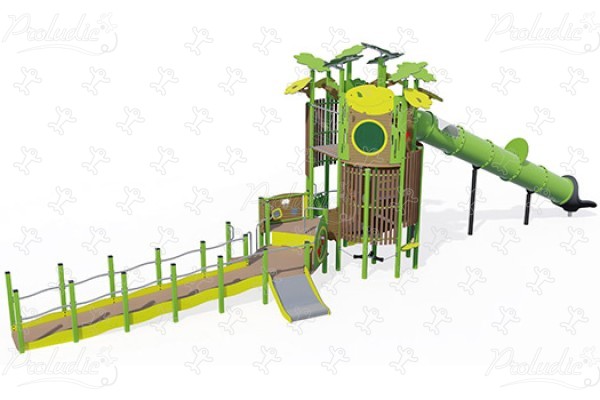

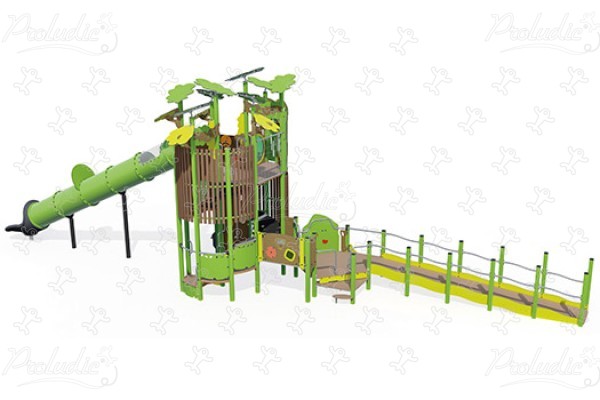

Kanopé - J56009®

We have created the reference J56009® in our "Kanopé" range. This play equipment is accessible from 2 years. It can accommodate up to 80 users.

The size of the module is: 17.89 m length, 5.68 m width, 5.80 m. high. The free fall height (FFH) is 2.97 m.

56 play functions

Role play x3

Role plays promote the child's intellectual and social skills.

Meeting x5

By playing together, children learn how to interact with other personalities and behaviors.

Resting x3

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Handling x7

A great exercise for developing motor skills and abilities in young children while having fun.

Swinging x3

To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.

Thinking x2

Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.

Sound stimulation x2

Popular and often shared by numerous children, fun sound activities bring even more life to play areas!

Tactile stimulation x8

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Visual stimulation x12

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x6

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Sliding x2

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Specifications

Age range:	2+
Number of users:	80 users
FFH :	2.97 m

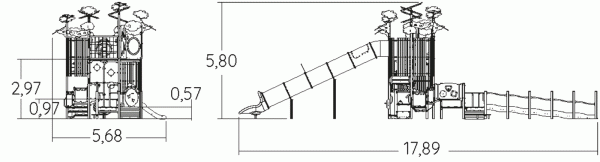

Size:	17.89 x 5.68 x 5.80 m

Equipment installation

Number of installers:	3
Installation time:	30:00:00
Concrete volume:	2.80 m3

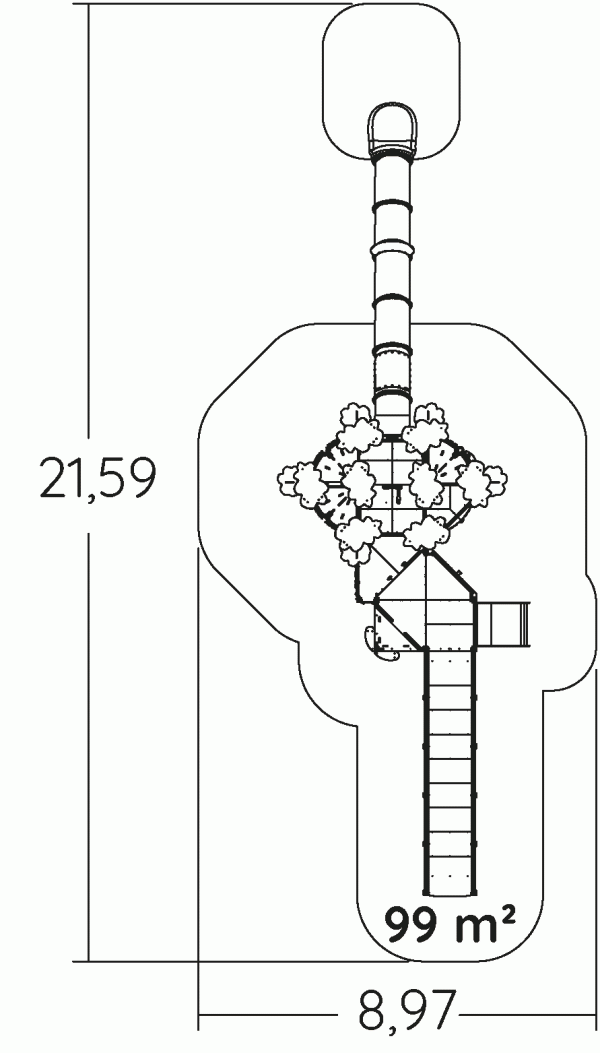

Surface:	99.00 m2
Total weight:	2803.70 kg
Weight of the heaviest element:	41.73 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The caps are made of injection moulded polyamide.

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
