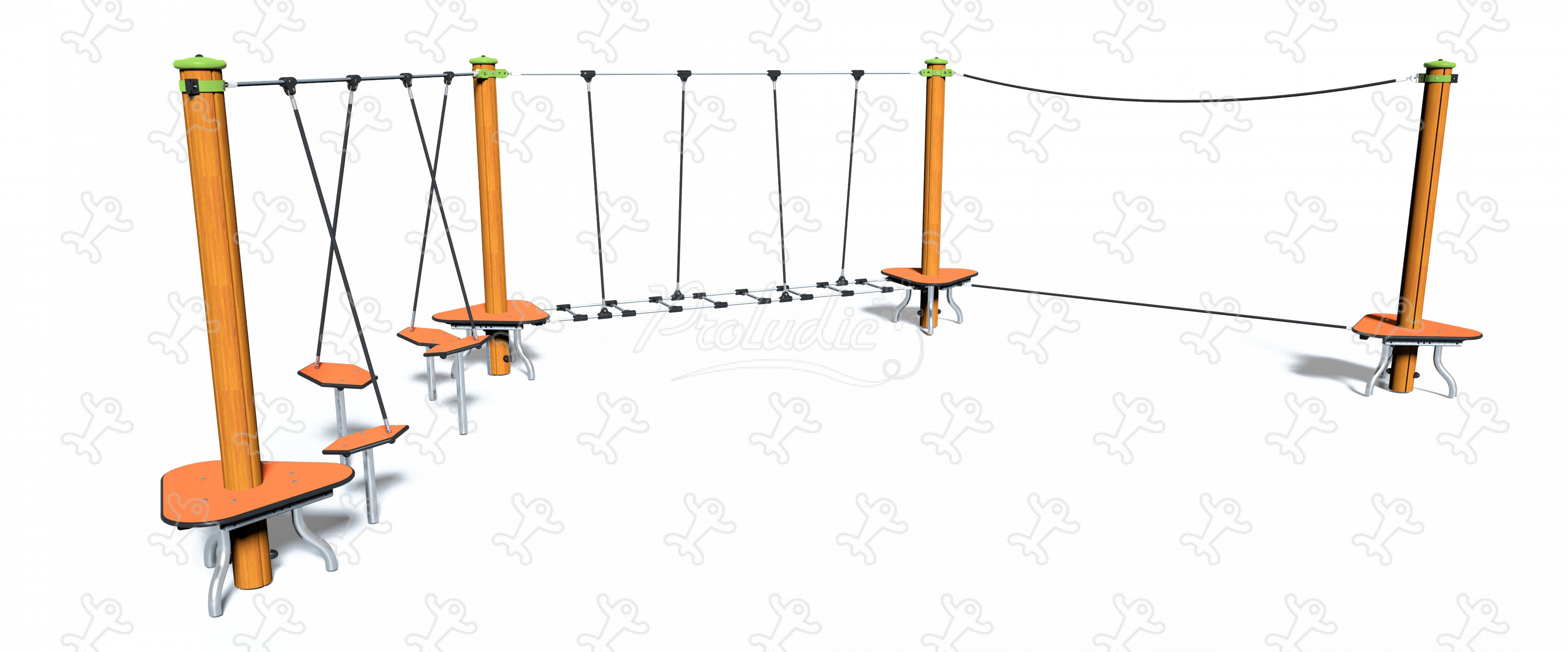

Balancing trails - J5408

We have created the reference J5408 in our "Balancing trails" range. This play equipment is accessible from 2 years. It can accommodate up to 11 users.

The size of the module is: 6.52 m length, 3.28 m width, 1.83 m. high. The free fall height (FFH) is 0.60 m.

Other finishes available

J5408-M

6 play functions

Balancing x3

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Getting across x3

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	2+
Number of users:	11 users
FFH :	0.60 m

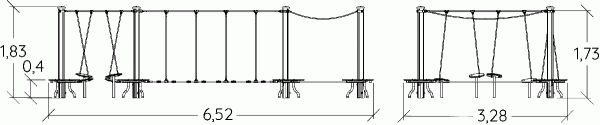

Size:	6.52 x 3.28 x 1.83 m

Equipment installation

Number of installers:	2
Installation time:	07:00:00
Concrete volume:	1.10 m3

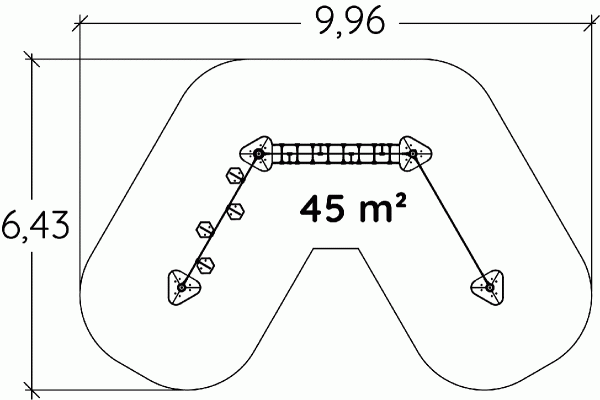

Surface:	45.00 m2
Total weight:	241.68 kg
Weight of the heaviest element:	12.51 kg

Environmental Indicators

Repairability

9.44 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm round posts are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The caps are made of injection moulded polyamide. Read more
