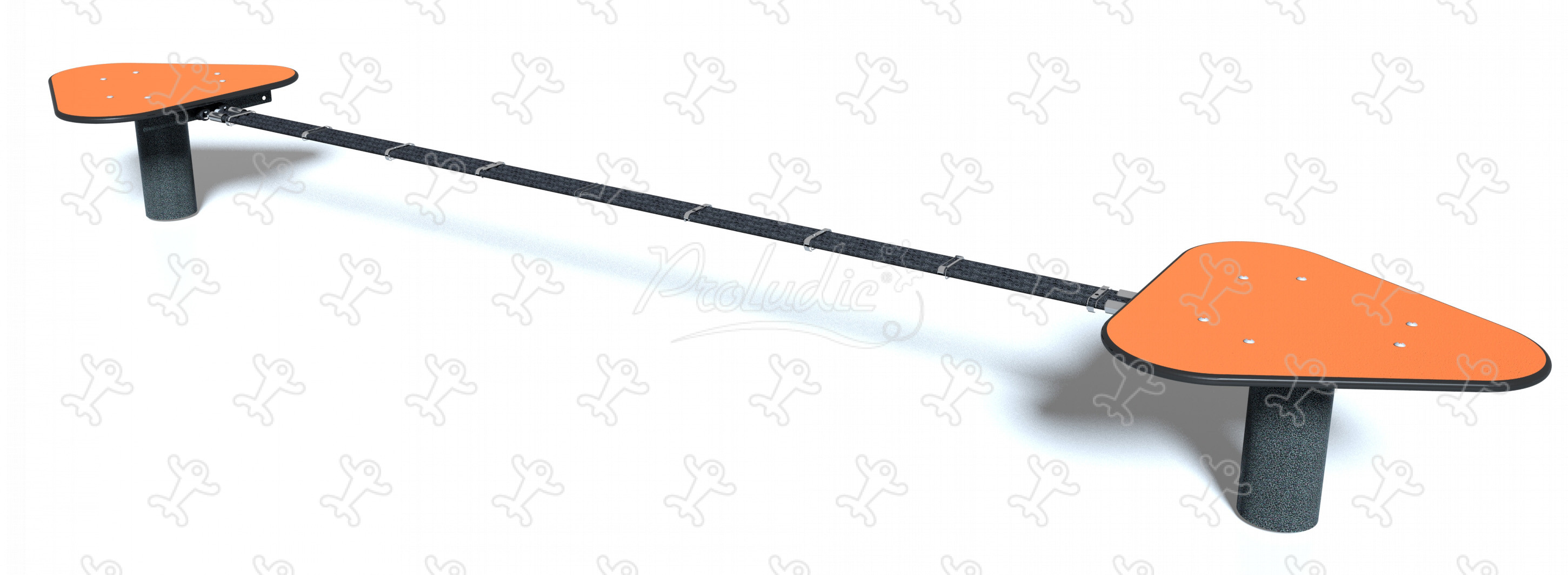

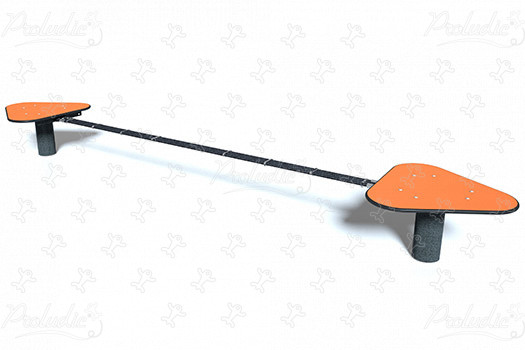

Balancing trails - Slackline - J5406-M

We have created the reference J5406-M in our "Balancing trails" range. This play equipment is accessible from 2 years. It can accommodate up to 4 users.

The size of the module is: 3.74 m length, 0.68 m width, 0.37 m. high. The free fall height (FFH) is 0.60 m.

2 play functions

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	2 - 8
Number of users:	4 users
FFH :	0.60 m
Size:	3.74 x 0.68 x 0.37 m

Equipment installation

Number of installers:	2
Installation time:	04:00:00
Concrete volume:	0.50 m3

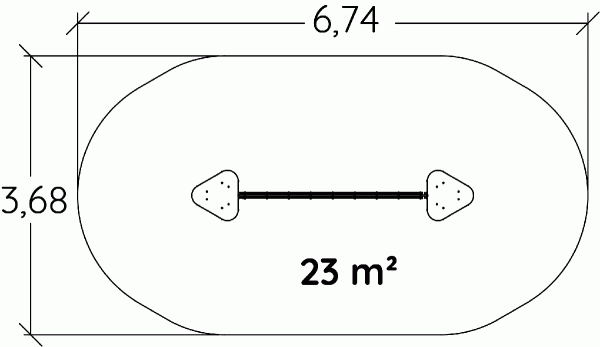

Surface:	23.00 m2
Total weight:	49.16 kg
Weight of the heaviest element:	14.20 kg

Environmental Indicators

Repairability

9.44 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Video - Balancing trails - Slackline - J5406-M

Materials

The 115mm diameter post is made of galvanised steel.

The platform floors are made from a 18mm thick, non-slip polyethylene material.

The strap is made of 3 ropes linked together with aluminium pliers. Each rope, of 16mm diameter, is made up of galvanized steel cables covered in polypropylene.
