Balancing trails - J5403-M

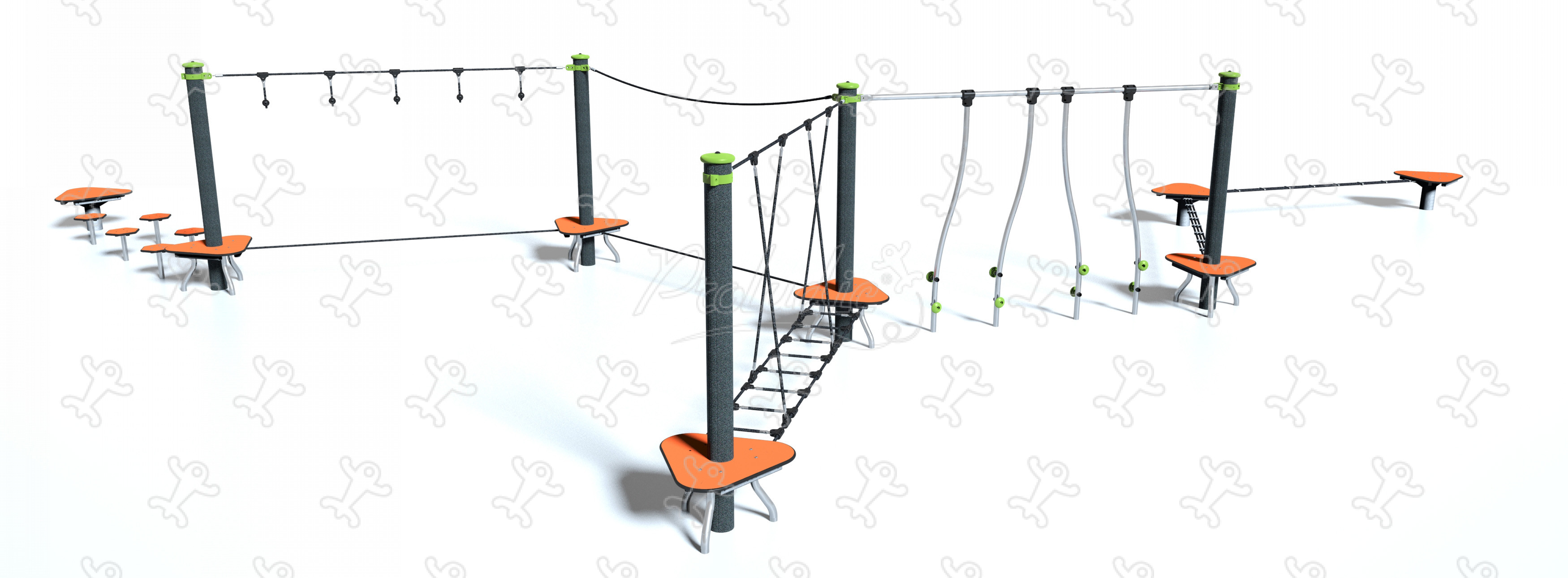

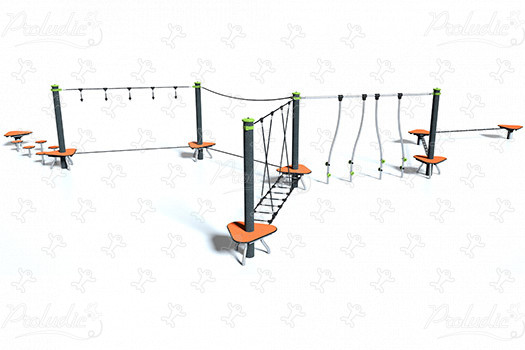

We have created the reference J5403-M in our "Balancing trails" range. This play equipment is accessible from 2 years. It can accommodate up to 37 users.

The size of the module is: 14.15 m length, 8.46 m width, 1.84 m. high. The free fall height (FFH) is 0.60 m.

Other finishes available

J5403

21 play functions

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Resting x3

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Balancing x4

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Getting across x4

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Balancing x3

Getting across x3

Jumping x1

Walking x2

Specifications

Age range:	2 - 8
Number of users:	37 users
FFH :	0.60 m
Size:	14.15 x 8.46 x 1.84 m

Equipment installation

Number of installers:	2
Installation time:	11:00:00
Concrete volume:	1.84 m3

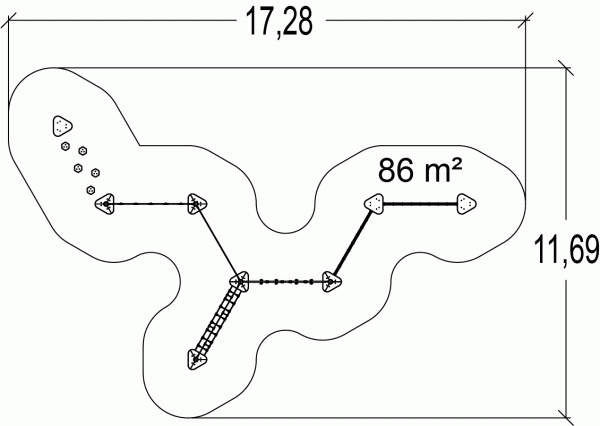

Surface:	86.00 m2
Total weight:	366.51 kg
Weight of the heaviest element:	18.43 kg

Environmental Indicators

Repairability

9.44 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

The platform floors are made from a 18mm thick, non-slip polyethylene material.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

Injected aluminium elements are fixed on the posts with self-drilling screws to provide links between the ropes and the posts.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The strap is made of 3 ropes linked together with aluminium pliers. Each rope, of 16mm diameter, is made up of galvanized steel cables covered in polypropylene.

The climbing holds are made of polypropylene. They are non-toxic, inflammable and shock and UV resistant. They give the units their strength and help to protect them... from vandalism. Read more
