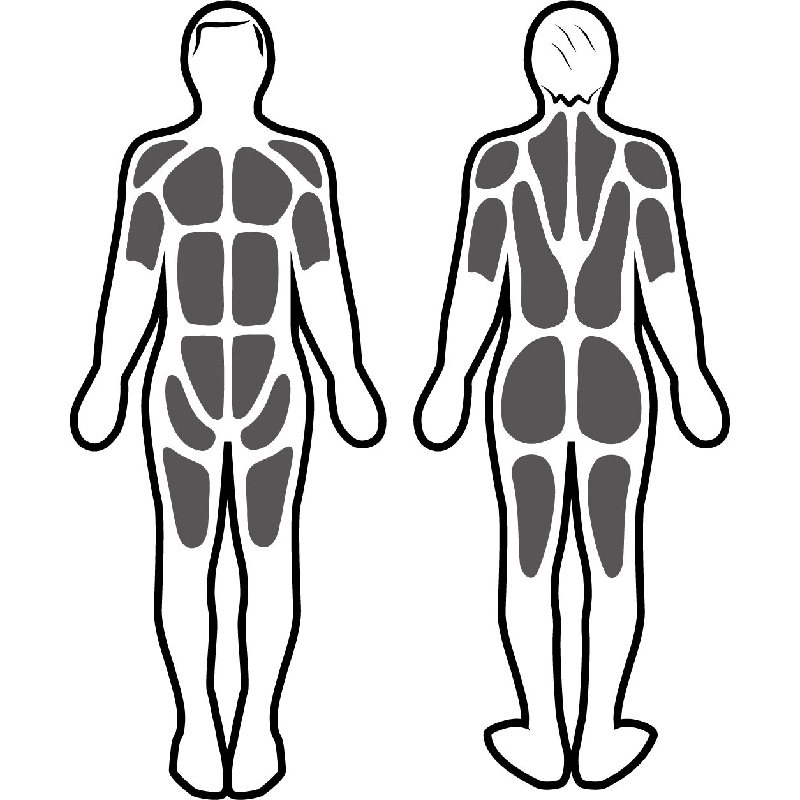

Muscle stimulation

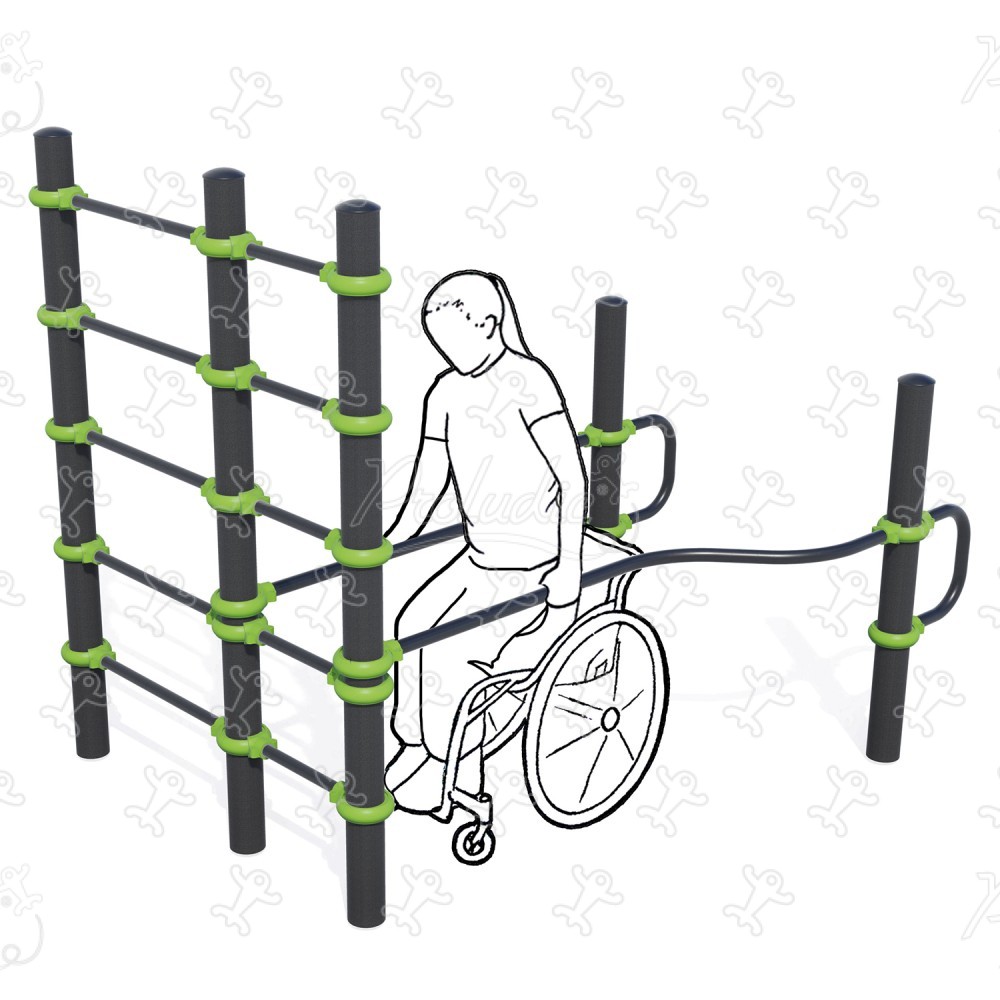

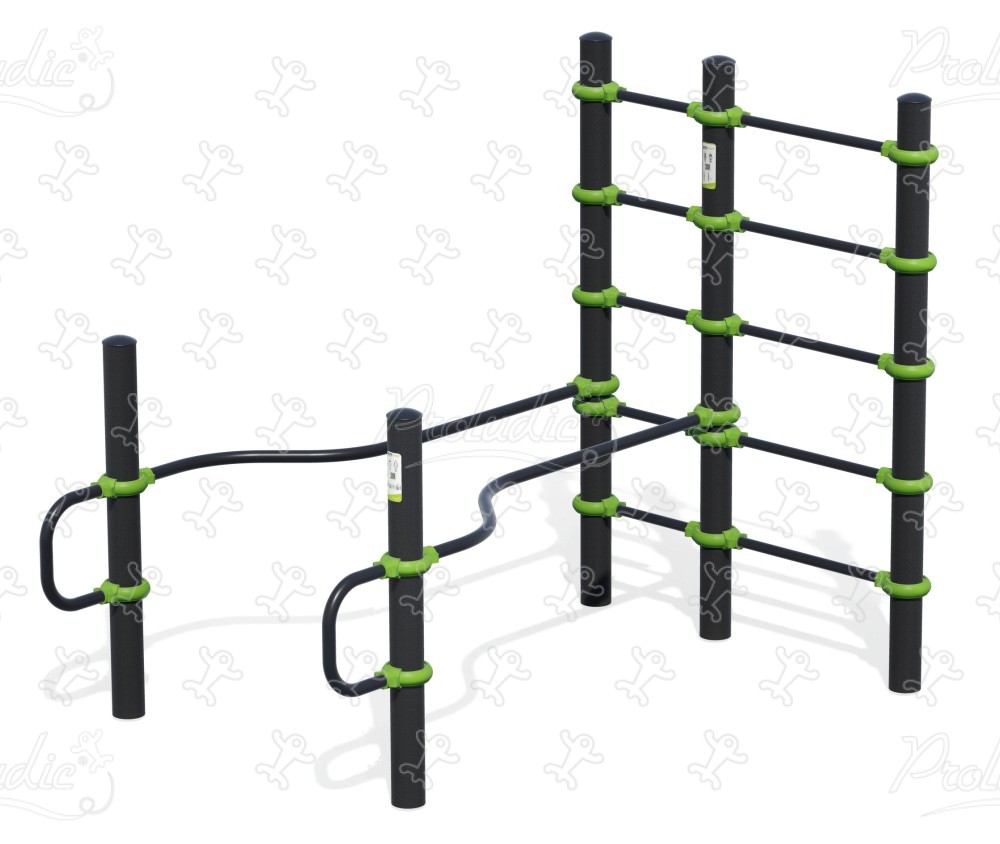

ACTI’Street - J5232

We have created the reference J5232 in our "ACTI’Street" range. This activity equipment is accessible from 14 years. It can accommodate up to 3 users.

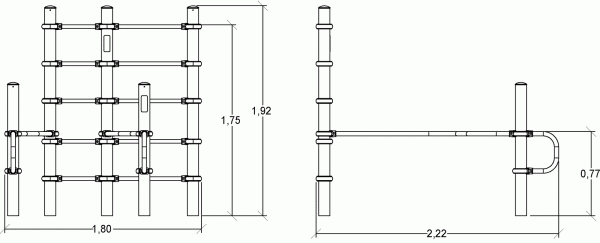

The size of the module is: 2.22 m length, 1.80 m width, 1.92 m. high. The free fall height (FFH) is 1.70 m.

6 sports activities

Hanging x1

Dips x1

Push-ups x2

Squats x1

Pull-ups x1

4 ludo-sport motivations

Application Acti'Fun

Sensations

Progressive design

Sharing

Specifications

Age range:	14+
Number of users:	3 users
FFH :	1.70 m
Size:	2.22 x 1.80 x 1.92 m

Equipment installation

Number of installers:	2
Installation time:	03:00:00
Concrete volume:	0.70 m3

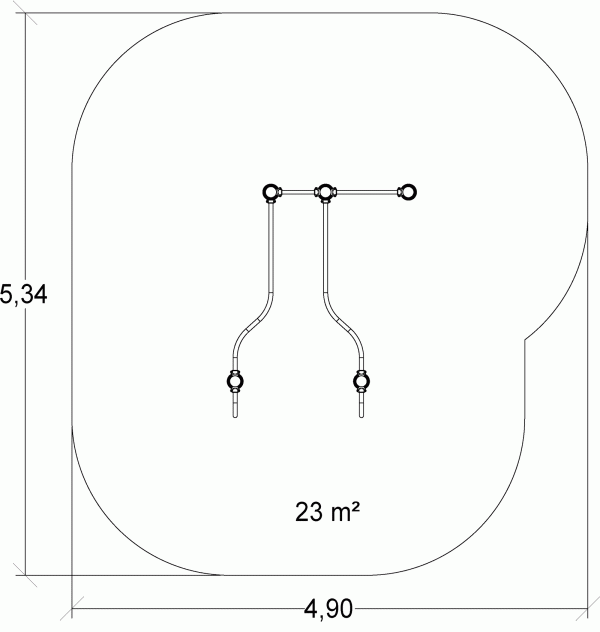

Surface:	23.00 m2
Total weight:	139.53 kg
Weight of the heaviest element:	19.91 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

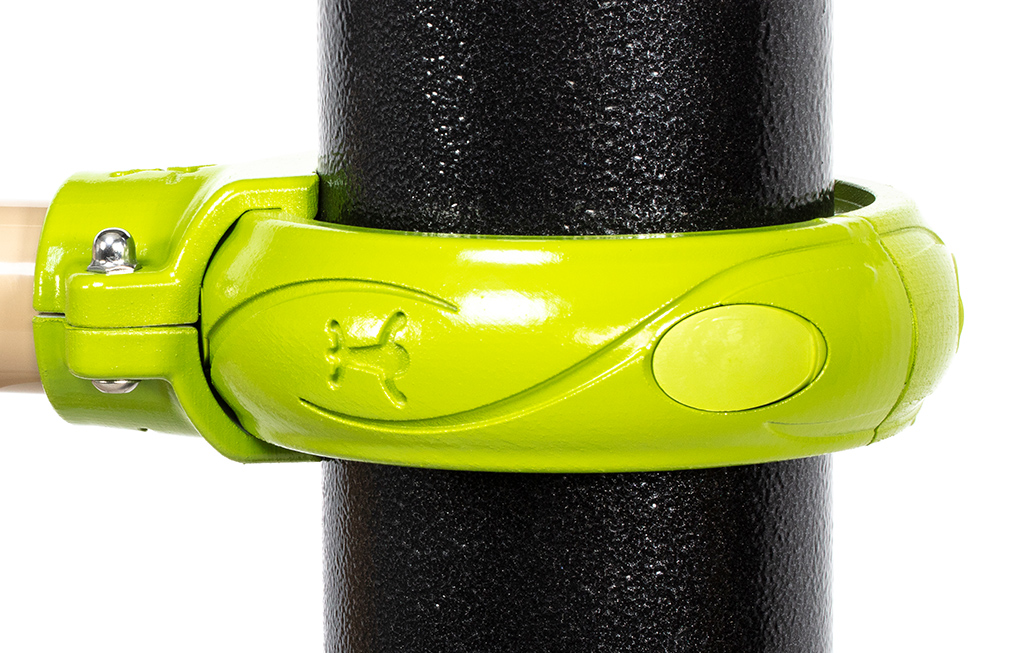

The 102mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... painted aluminium. Read more
