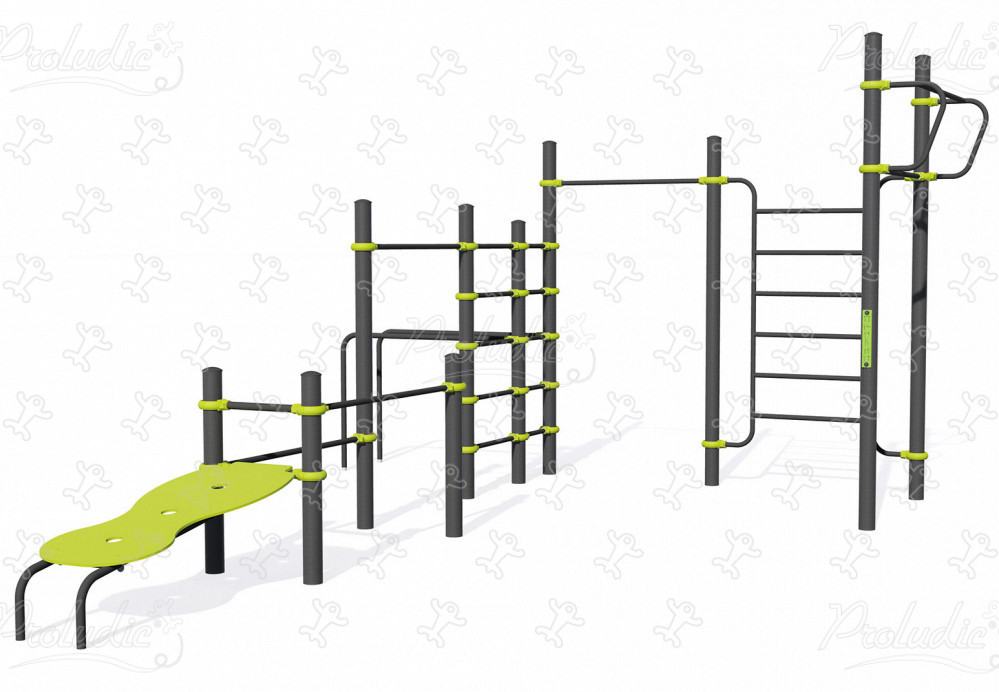

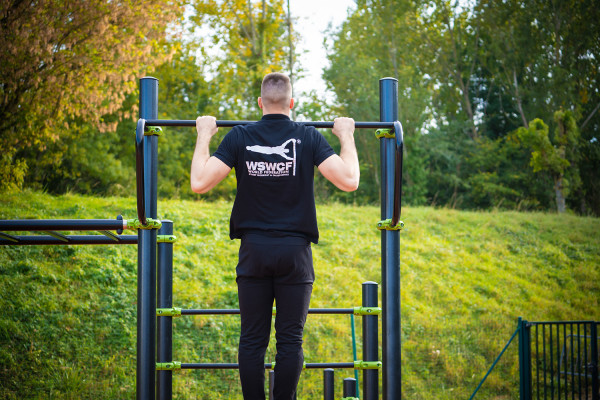

ACTI’Street - Combination for all levels - J5218®

We have created the reference J5218® in our "ACTI’Street" range. This activity equipment is accessible from 14 years. It can accommodate up to 11 users.

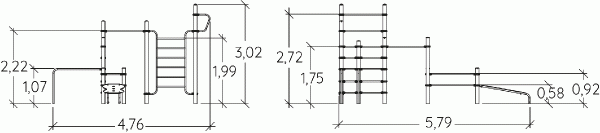

The size of the module is: 5.79 m length, 4.76 m width, 3.02 m. high. The free fall height (FFH) is 2.00 m.

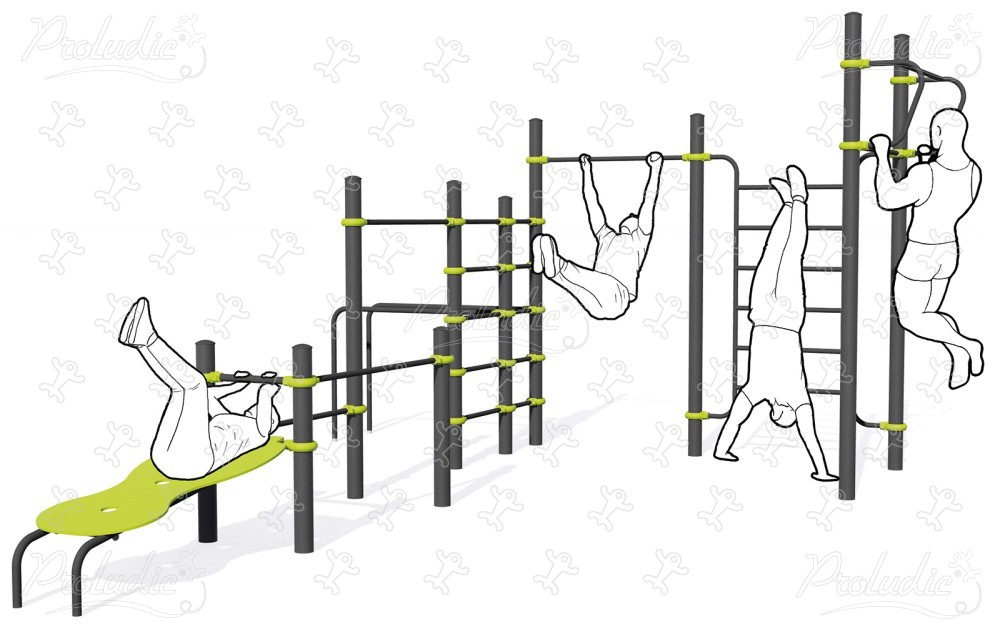

22 sports activities

Hanging x8

Pull-ups x7

Dips x1

Push-ups x3

Squats x2

Abs x1

6 ludo-sport motivations

Application Acti'Fun

Sensations

Progressive design

Sharing

Diversity

Challenge

Specifications

Age range:	14+
Number of users:	11 users
FFH :	2.00 m
Size:	5.79 x 4.76 x 3.02 m

Equipment installation

Number of installers:	2
Installation time:	07:00:00
Concrete volume:	1.90 m3

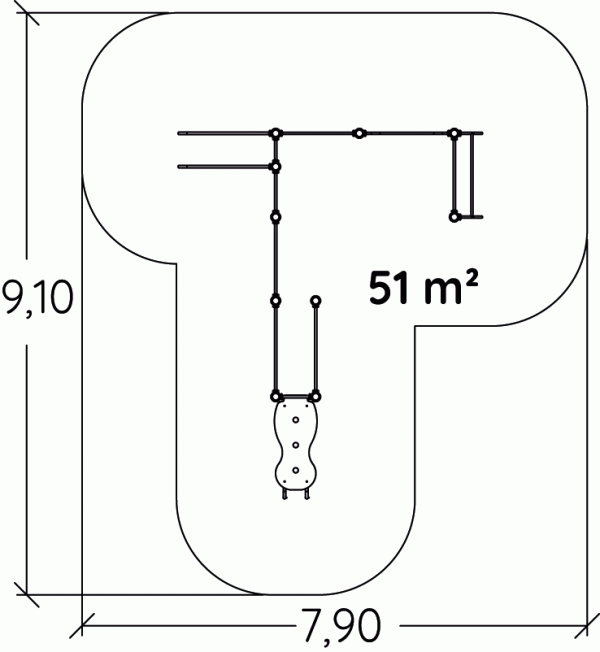

Surface:	51.00 m2
Total weight:	322.42 kg
Weight of the heaviest element:	28.02 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 102mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... painted aluminium. Read more

The fixing collars are made of painted aluminium.

The tubes are made of electro-galvanized steel (diameter 34 mm) and stainless steel (diameter 40 mm), coated with epoxy paint. Electrogalvanization ensures... corrosion resistance and gives a high quality finish. Stainless steel guarantees the longevity and robustness of the equipment over time. The epoxy paint provides better grip. Read more

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
