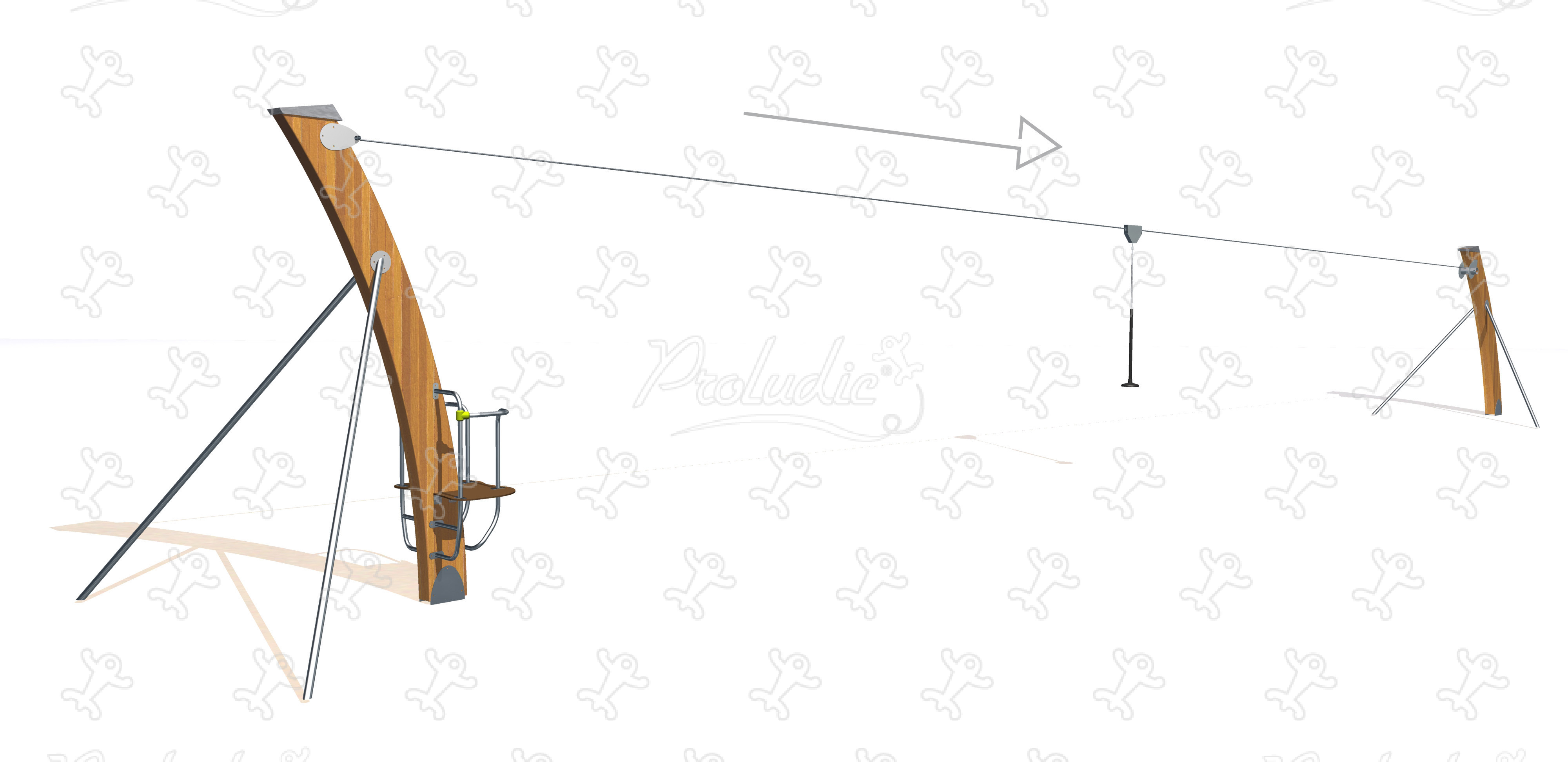

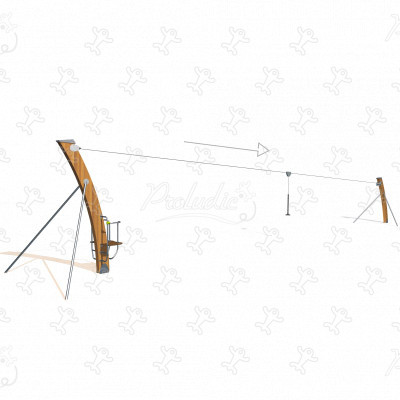

Cableway for level ground
J511
J511
We have created the reference J511 in our "Cableways" range. This play equipment is accessible from 6 years. It can accommodate up to 1 user.

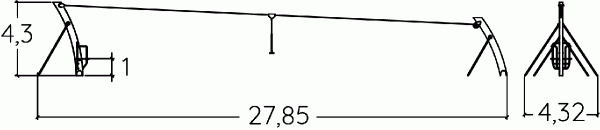

The size of the module is: 27.69 m length, 4.32 m width, 4.30 m. high. The free fall height (FFH) is 1.40 m.
| Age range: | 6+ |
| Number of users: | 1 user |
| FFH : | 1.40 m |
| Size: | 27.69 x 4.32 x 4.30 m |
| Number of installers: | 2 |
| Installation time: | 10:30:00 |
| Concrete volume: | 3.50 m3 |

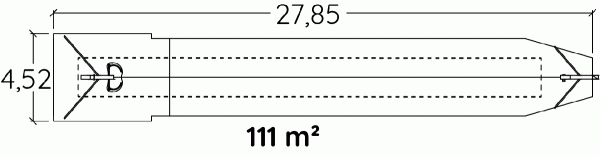

| Surface: | 111.00 m2 |
| Total weight: | 618.01 kg |
| Weight of the heaviest element: | 193.75 kg |
Repairability
9.17 /10
The shaped beams (95mm thick, 200mm wide and 3.2m high) are made of oven-cured laminated wood with a surface coating; It gives the structure considerable strength.
The trolley is made of stainless steel ensuring its durability. The trolley wheels are made of polyamide, reducing noise levels during usage. The braking... mechanism of the pulley ensures that it rests in a stationary position when no force is applied. Read more
The cableway seat is made of shock absorbing honeycomb rubber. The supporting chain is made from galvanised steel and covered with a protective plastic coating.
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
The platform is made from a 12.5mm thick textured and non-slip compact material (HPL).
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
