Balancing trails - GymLudic - J51000®

We have created the reference J51000® in our "Balancing trails" range. This play equipment is accessible from 2 years. It can accommodate up to 20 users.

The size of the module is: 5.93 m length, 5.31 m width, 2.11 m. high. The free fall height (FFH) is 1.95 m.

8 play functions

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Role play x1

Role plays promote the child's intellectual and social skills.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Handling x1

A great exercise for developing motor skills and abilities in young children while having fun.

Hanging x1

This fun activity allows you to explore a new way of playing, of managing space and the void below.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Specifications

Age range:	2 - 6
Number of users:	20 users
FFH :	1.95 m

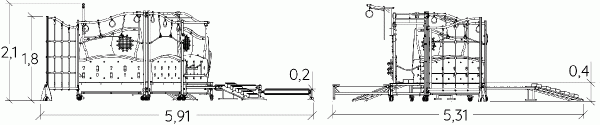

Size:	5.93 x 5.31 x 2.11 m

Equipment installation

Installation time:	01:00:00

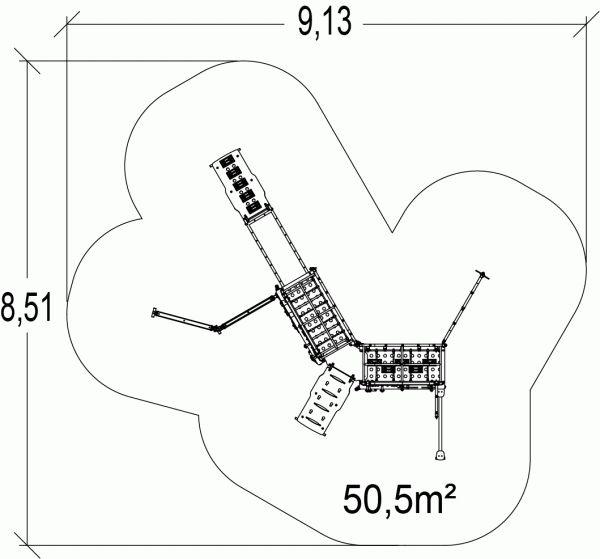

Surface:	50.50 m2
Total weight:	509.32 kg
Weight of the heaviest element:	294.30 kg

Environmental Indicators

Repairability

9.44 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made of polypropylene and shatter resistant thermoplastic (PMMA).

The tubes are made of epoxy polyester lacquered aluminium (40x40, Ø 30 and Ø 40mm).

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
