Cableways - Cableway for natural slope - J510

We have created the reference J510 in our "Cableways" range. This play equipment is accessible from 4 years. It can accommodate up to 1 user.

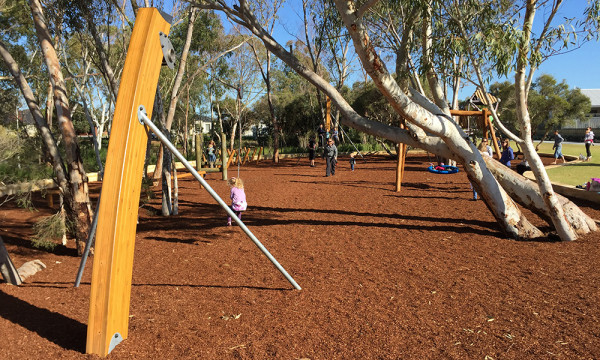

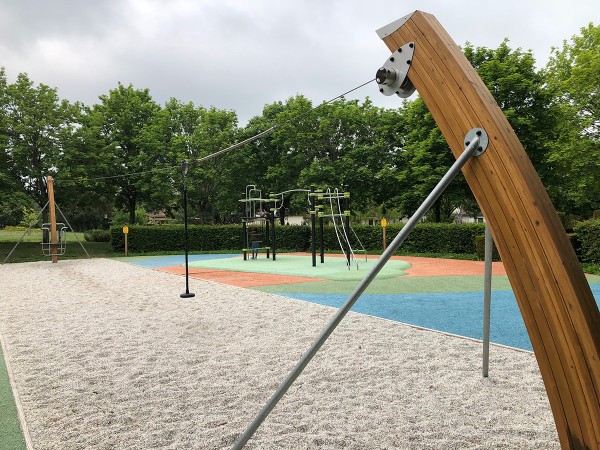

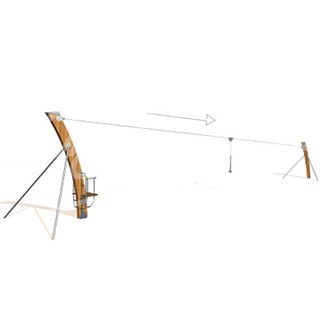

“The shaped wooden beams (3.1m high, 95mm thick and 200mm wide) provide a real architectural focal point. Ease of maintenance thanks to the easily adjustable, cable tensioning system. 25m long cable enables users to gain speed providing an exhilarating play experience. The J510 Is used for inclined sites and the J511 for flat sites (change of height of 1m to 1.5m recommendation).”

3 play functions

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	4+
Number of users:	1 user
FFH :	1.00 m
Size:	27.20 x 3.20 x 3.40 m

Equipment installation

Number of installers:	2
Installation time:	09:00:00
Concrete volume:	1.66 m3

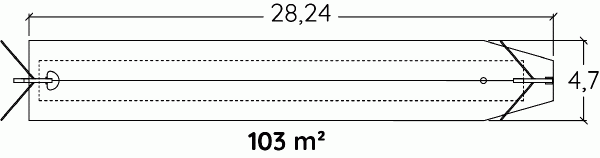

Surface:	103.00 m2
Total weight:	536.88 kg
Weight of the heaviest element:	157.50 kg

Environmental Indicators

Repairability

9.06 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The shaped beams (95mm thick, 200mm wide and 3.2m high) are made of oven-cured laminated wood with a surface coating; It gives the structure considerable strength.

The tubes are made of 60mm diameter steel.

The trolley is made of stainless steel ensuring its durability. The trolley wheels are made of polyamide, reducing noise levels during usage. The braking... mechanism of the pulley ensures that it rests in a stationary position when no force is applied. Read more

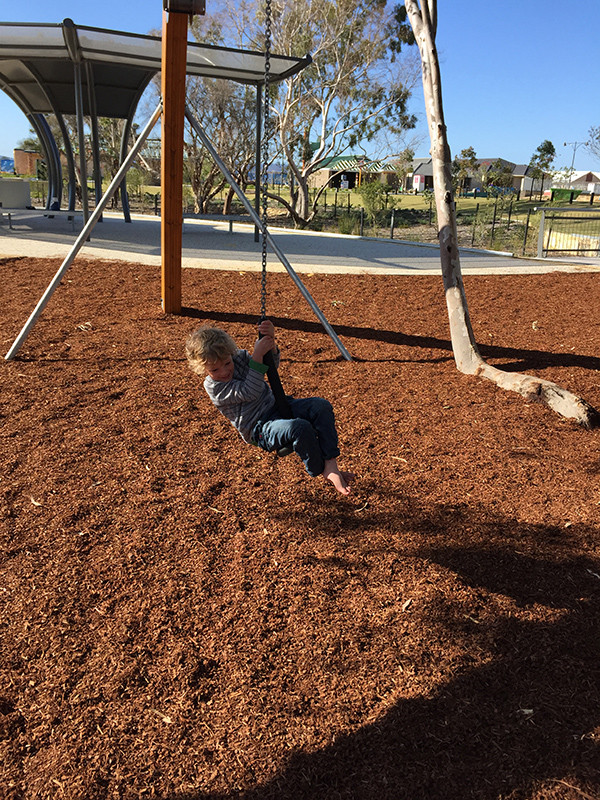

The cableway seat is made of shock absorbing honeycomb rubber. The supporting chain is made from galvanised steel and covered with a protective plastic coating.
