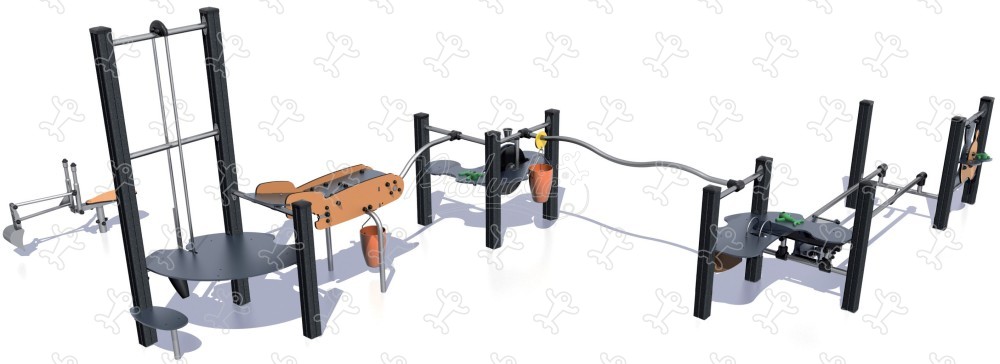

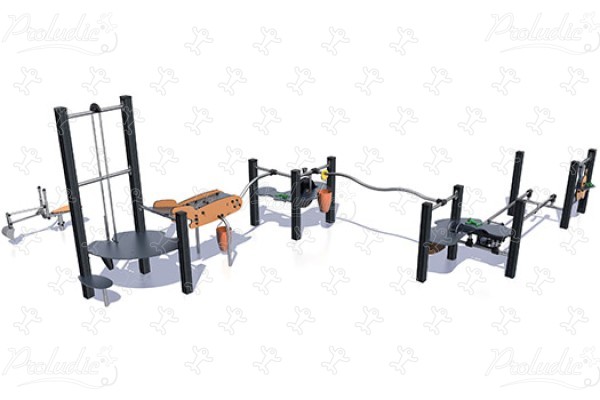

The Sand Factory - Sand Factory L - J5001-M

We have created the reference J5001-M in our "The Sand Factory" range. This play equipment is accessible from 2 years. It can accommodate up to 15 users.

The size of the module is: 6.87 m length, 5.17 m width, 2.18 m. high. The free fall height (FFH) is 0.60 m.

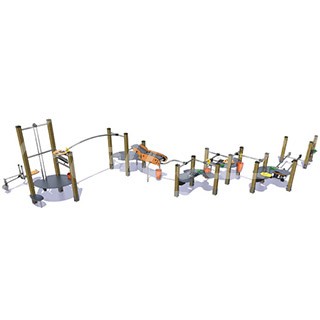

Other finishes available

J5001

34 play functions

Meeting x3

By playing together, children learn how to interact with other personalities and behaviors.

Handling x10

A great exercise for developing motor skills and abilities in young children while having fun.

Thinking x7

Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.

Tactile stimulation x10

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Role play x2

Role plays promote the child's intellectual and social skills.

Resting x1

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Specifications

Age range:	2+
Number of users:	15 users
FFH :	0.60 m

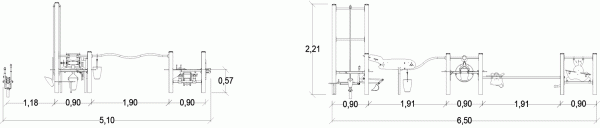

Size:	6.87 x 5.17 x 2.18 m

Equipment installation

Number of installers:	2
Installation time:	05:00:00
Concrete volume:	0.50 m3

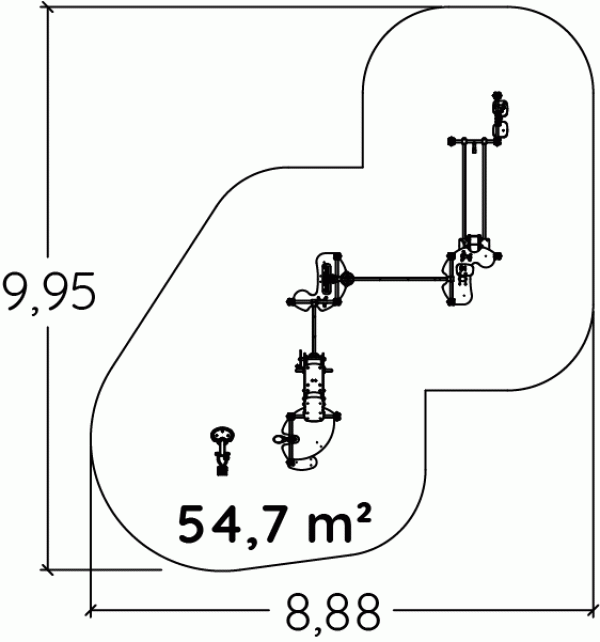

Surface:	55.00 m2
Total weight:	316.29 kg
Weight of the heaviest element:	21.92 kg

Environmental Indicators

Repairability

9.46 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Video - The Sand Factory - Sand Factory L - J5001-M

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
