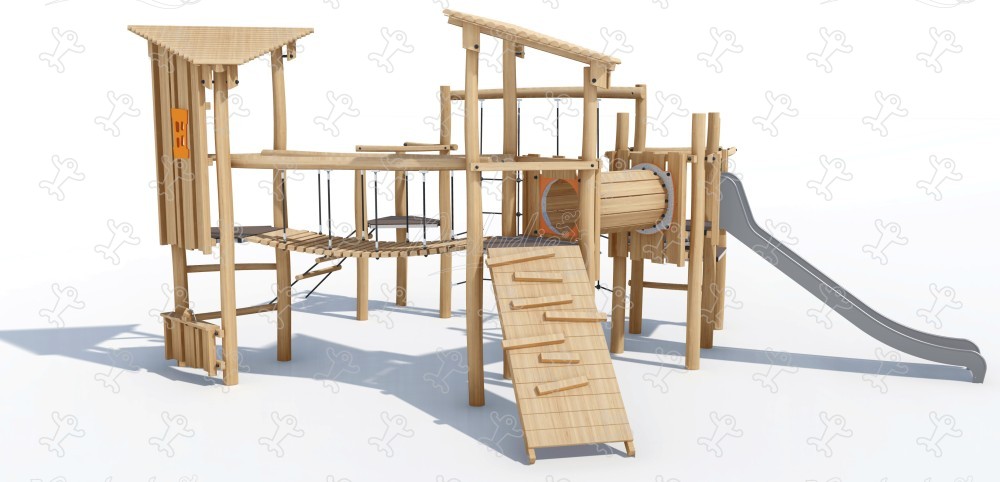

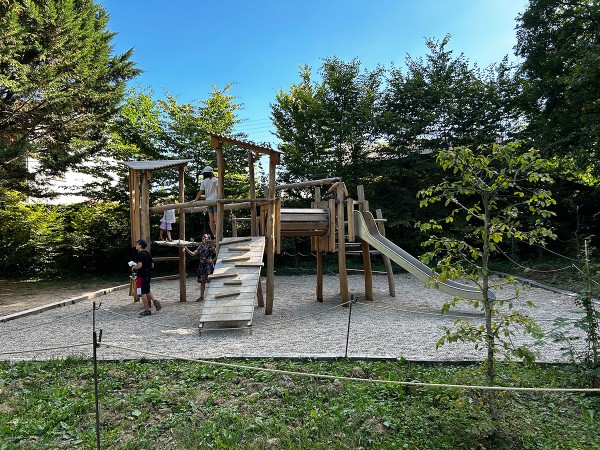

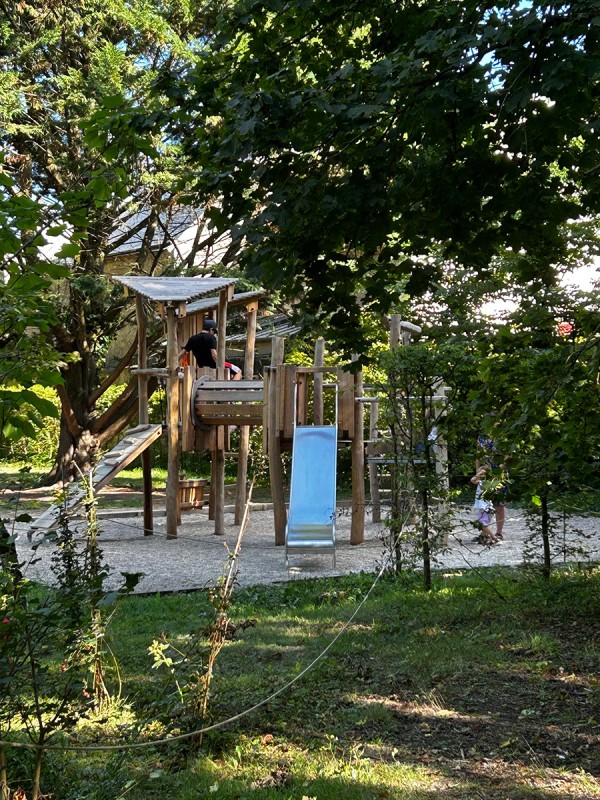

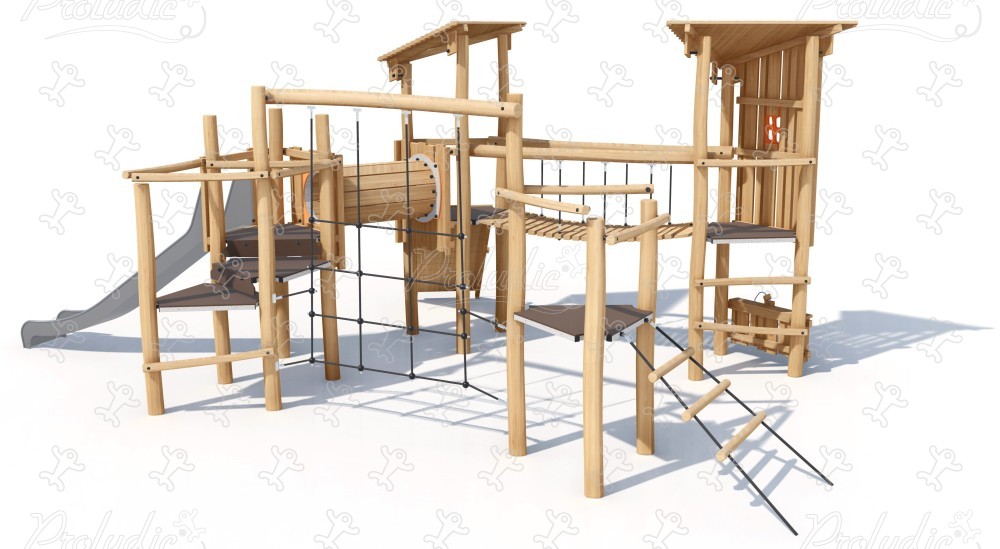

Multi play structures - J4947

We have created the reference J4947 in our "Multi play structures" range. This play equipment is accessible from 3 years. It can accommodate up to 34 users.

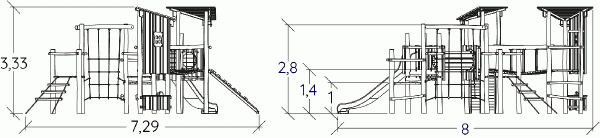

The size of the module is: 7.29 m length, 8.00 m width, 3.33 m. high. The free fall height (FFH) is 1.70 m.

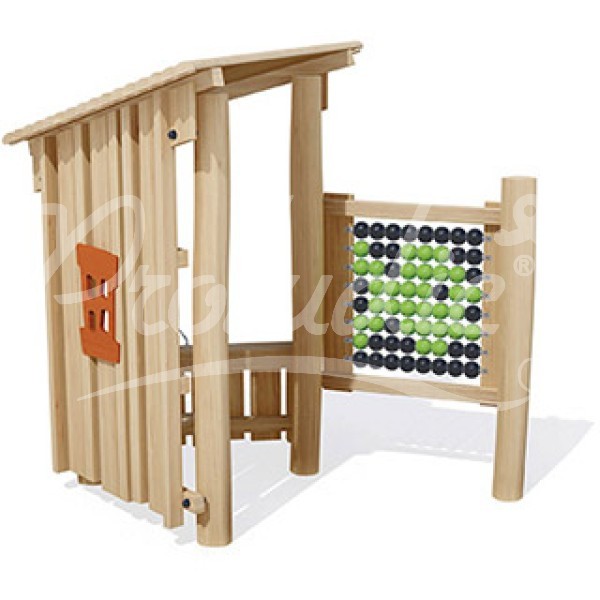

Other finishes available

J4947-V

29 play functions

Role play x5

Role plays promote the child's intellectual and social skills.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x7

By playing together, children learn how to interact with other personalities and behaviors.

Handling x1

A great exercise for developing motor skills and abilities in young children while having fun.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Taking shelter x2

A refuge where the children can take shelter ensures that children have their own space.

Climbing x5

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x3

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Tactile stimulation x1

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Visual stimulation x1

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Specifications

Age range:	3+
Number of users:	34 users
FFH :	1.70 m
Size:	7.29 x 8.00 x 3.33 m

Equipment installation

Number of installers:	2
Installation time:	20:00:00
Concrete volume:	0.20 m3
Surface:	72.00 m2
Total weight:	1228.29 kg
Weight of the heaviest element:	57.68 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The different posts (average diameter: 60 to 80mm / 100 to 120mm / 120 to 140mm) are made from sap free robinia. The robinia is sanded and has had its bark removed.... Robinia is naturally rot proof and does not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The panels, the climbing wall, the gangway, the shelf and the tunnel are made from larch (plank sizes 140 x 27mm / 45 x 68mm). Larch is naturally resistant and long lasting.

The roofs are made from larch logs (80 x 40 mm).

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platforms. Read more

The slides are made of stainless steel.

The chains are made of stainless steel.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
