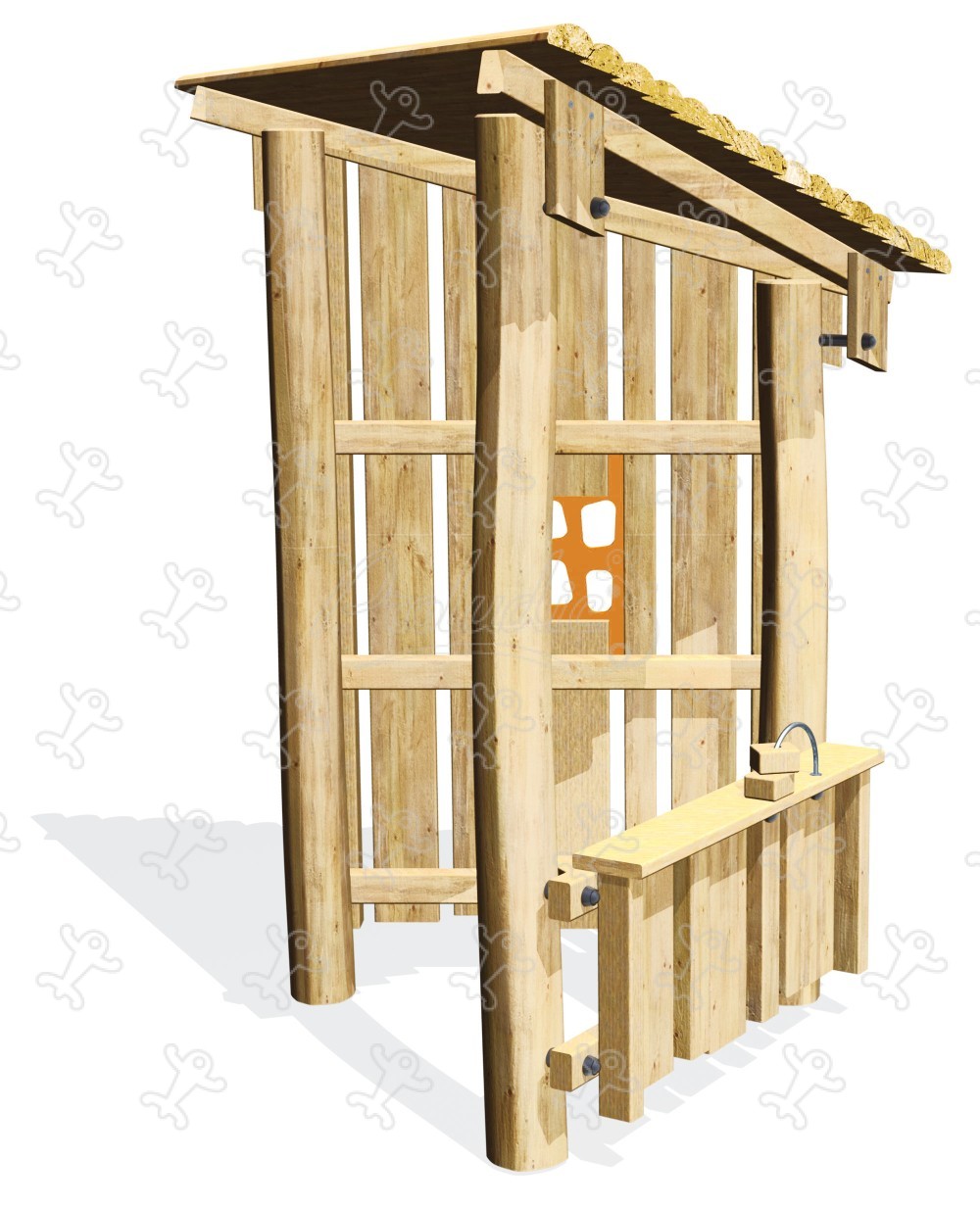

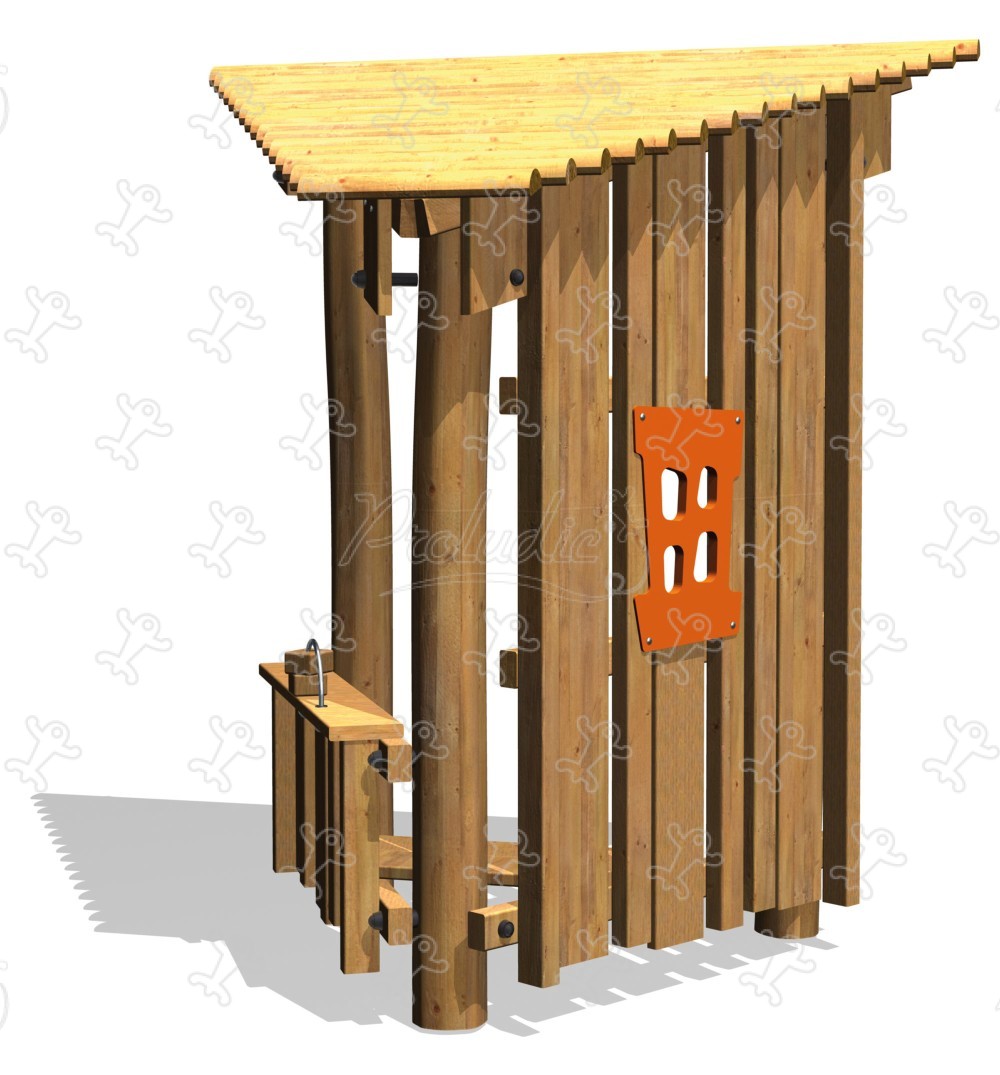

Multi play structures - Playhouse - J4940

We have created the reference J4940 in our "Multi play structures" range. This play equipment is accessible from 1 year. It can accommodate up to 6 users.

The size of the module is: 1.75 m length, 1.23 m width, 1.94 m. high. The free fall height (FFH) is 0.60 m.

7 play functions

Role play x1

Role plays promote the child's intellectual and social skills.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Resting x1

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Handling x1

A great exercise for developing motor skills and abilities in young children while having fun.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Tactile stimulation x1

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Visual stimulation x1

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Specifications

Age range:	1 - 8
Number of users:	6 users
FFH :	0.60 m

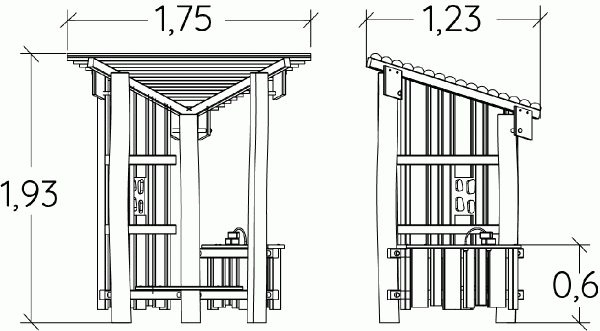

Size:	1.75 x 1.23 x 1.94 m

Equipment installation

Number of installers:	2

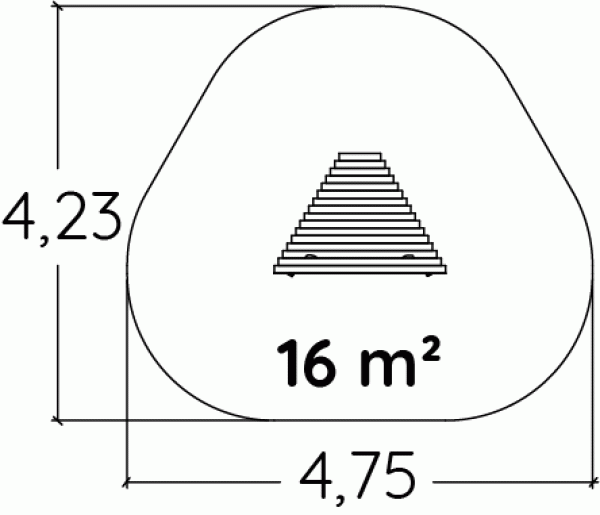

Surface:	16.00 m2
Total weight:	181.92 kg
Weight of the heaviest element:	35.92 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Video - Multi play structures - Playhouse - J4940

Materials

The posts with average diameter 120 to 140mm are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The panels and the shelf are made from larch (plank sizes 140 x 27mm / 45 x 68mm). Larch is naturally resistant and long lasting.

The roof is made from larch logs (80 x 40 mm).

The abacus pieces are made from larch. The rail is made from 10mm diameter stainless steel.

The porthole is made from lacquered Marine plywood. The colour is applied by electrostatic spraying of two-component polyurethane lacquer that is free of heavy... metals, to ensure high levels of resistance to potentially aggressive chemicals such as anti-graffiti cleaning products. Read more
