Multi play structures - J4934

We have created the reference J4934 in our "Multi play structures" range. This play equipment is accessible from 3 years. It can accommodate up to 32 users.

“

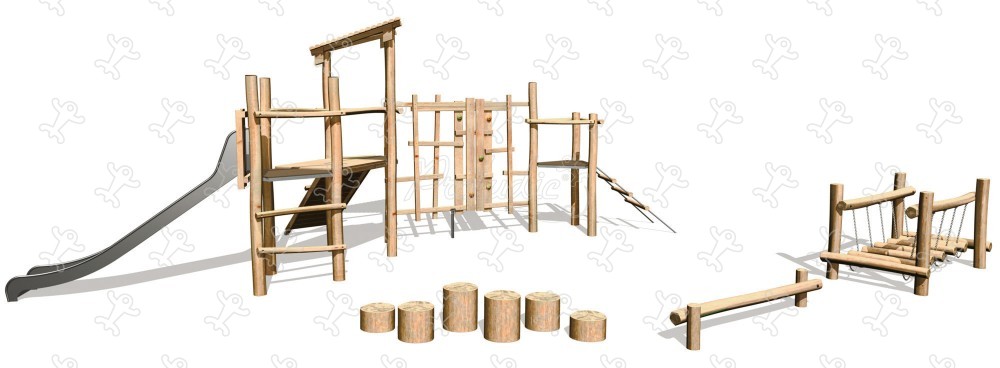

J4934 Nature

The J4934 is a robina multi-play unit. This natural play unit”

21 play functions

Role play x2

Role plays promote the child's intellectual and social skills.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x3

By playing together, children learn how to interact with other personalities and behaviors.

Balancing x4

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Climbing x3

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x5

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Jumping x1

Specifications

Age range:	3+
Number of users:	32 users
FFH :	2.30 m

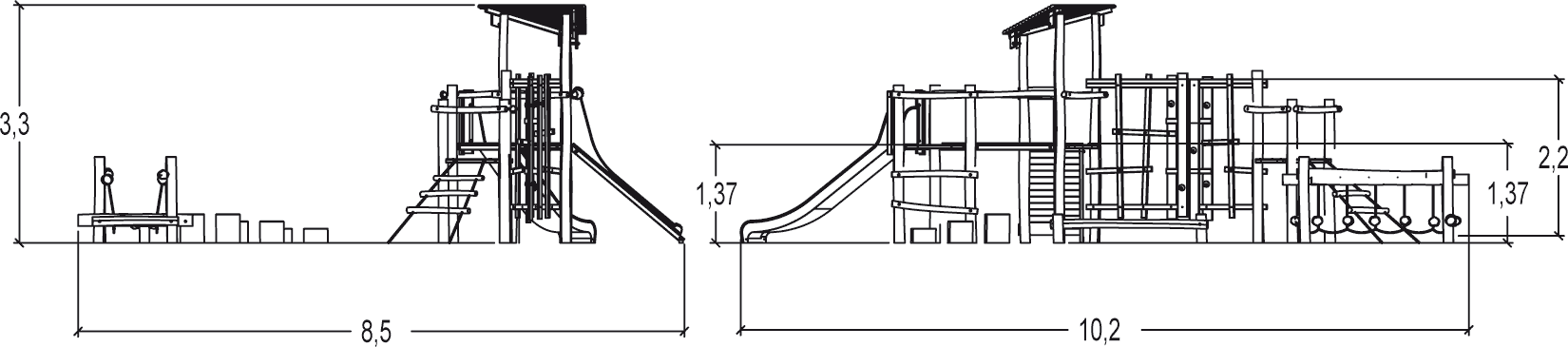

Size:	10.20 x 8.50 x 3.30 m

Equipment installation

Number of installers:	2
Installation time:	08:00:00
Concrete volume:	0.24 m3

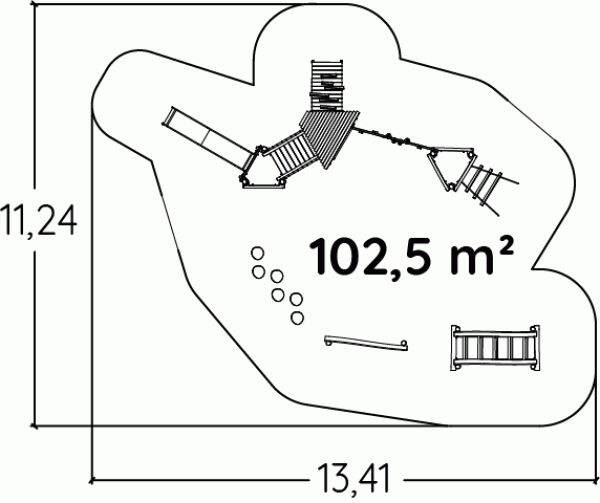

Surface:	102.50 m2
Total weight:	1200.05 kg
Weight of the heaviest element:	250.00 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The different posts (average diameter: 60 to 80mm / 100 to 120mm / 120 to 140mm) are made from sap free robinia. The robinia is sanded and has had its bark removed.... Robinia is naturally rot proof and does not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The climbing wall and the inclined element are made from larch (plank sizes 140 x 27mm / 45 x 68mm). Larch is naturally resistant and long lasting.

The roof is made from larch logs (80 x 40 mm).

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platforms. Read more
