Multi play structures - J4933-V

We have created the reference J4933-V in our "Multi play structures" range. This play equipment is accessible from 2 years. It can accommodate up to 12 users.

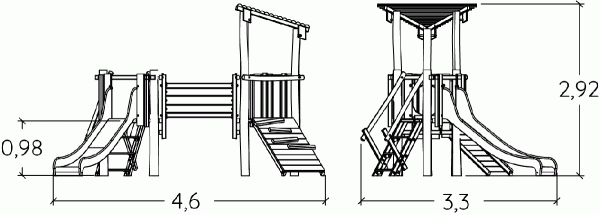

The size of the module is: 3.30 m length, 4.60 m width, 2.92 m. high. The free fall height (FFH) is 1.00 m.

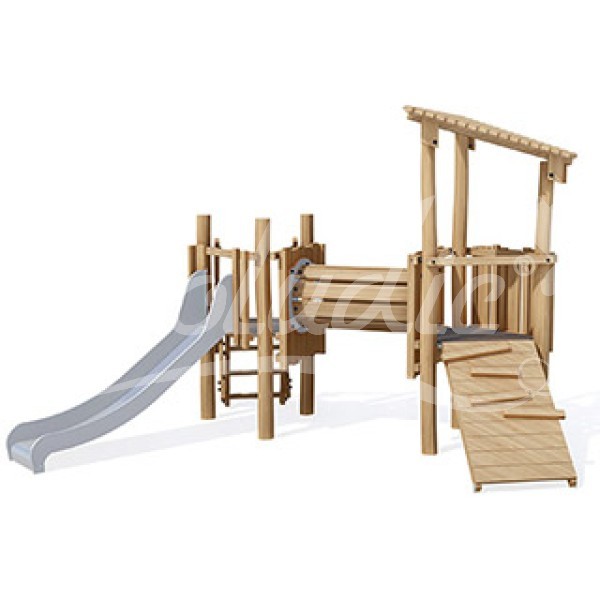

Other finishes available

J4933

10 play functions

Role play x1

Role plays promote the child's intellectual and social skills.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

By playing together, children learn how to interact with other personalities and behaviors.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	2+
Number of users:	12 users
FFH :	1.00 m
Size:	3.30 x 4.60 x 2.92 m

Equipment installation

Number of installers:	2
Installation time:	12:00:00

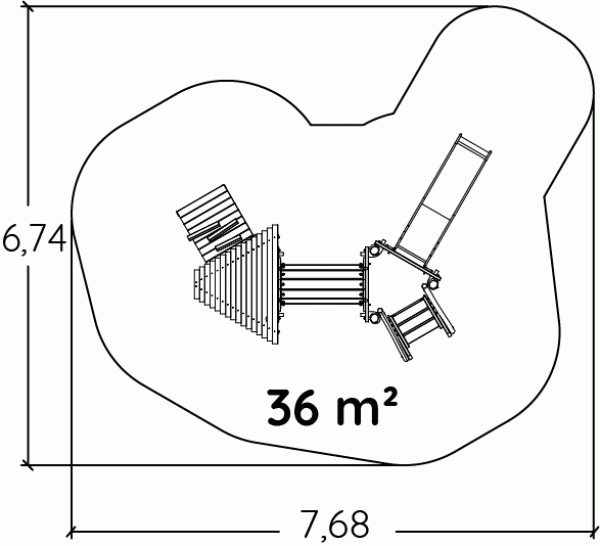

Surface:	36.00 m2
Total weight:	543.63 kg
Weight of the heaviest element:	53.27 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The different posts (average diameter: 60 to 80mm / 100 to 120mm / 120 to 140mm) are made from sap free robinia. The robinia is sanded and has had its bark removed.... Robinia is naturally rot proof and does not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

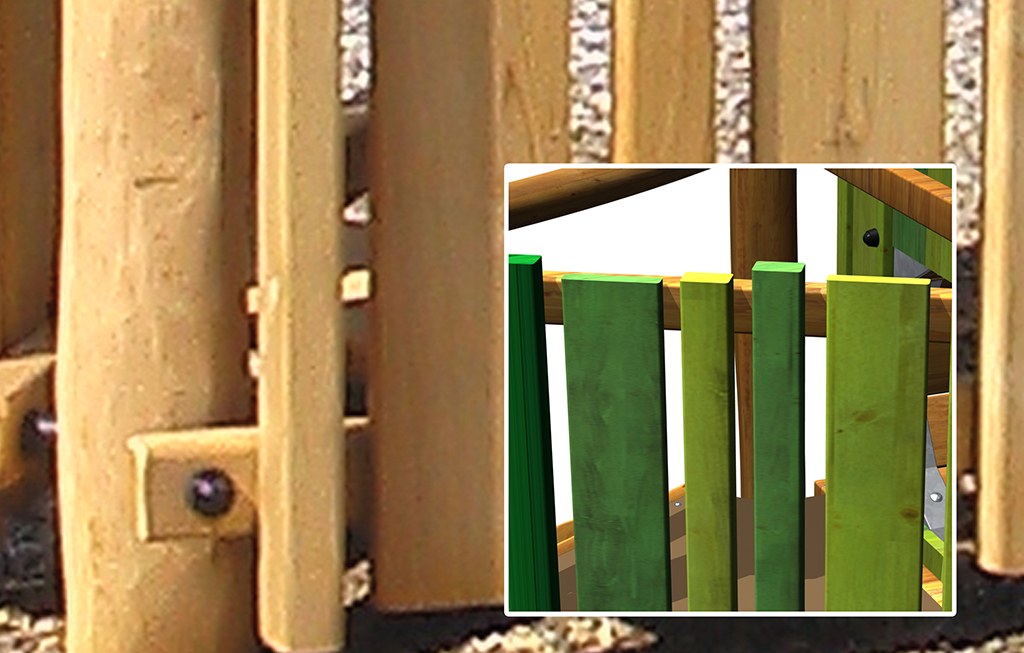

The panels, the climbing wall, the steps and the tunnel are made from larch (plank sizes 140 x 27mm / 45 x 68mm). Larch is naturally resistant and long lasting. The panels are coloured (shades of green)... using a staining process. Read more

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platforms. Read more
