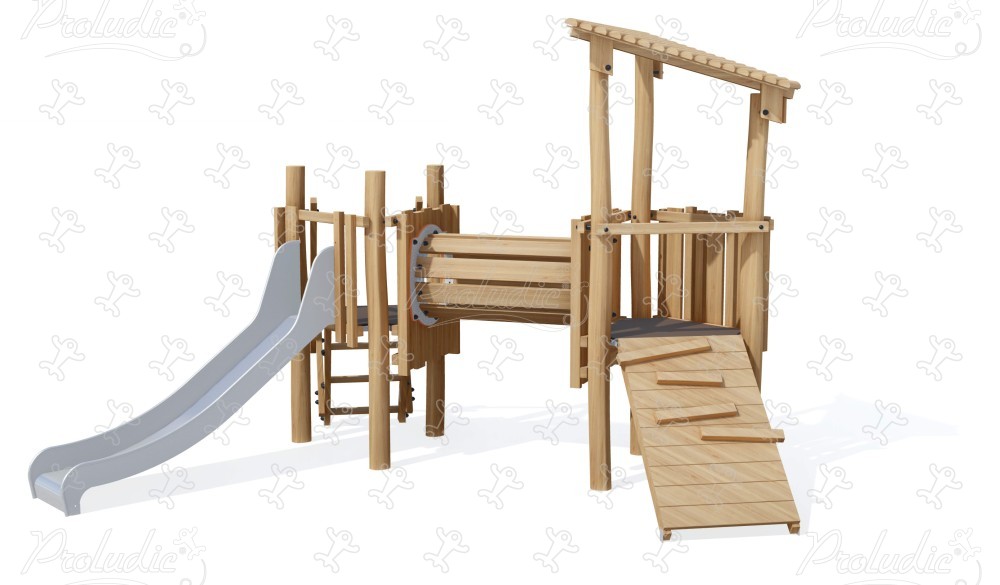

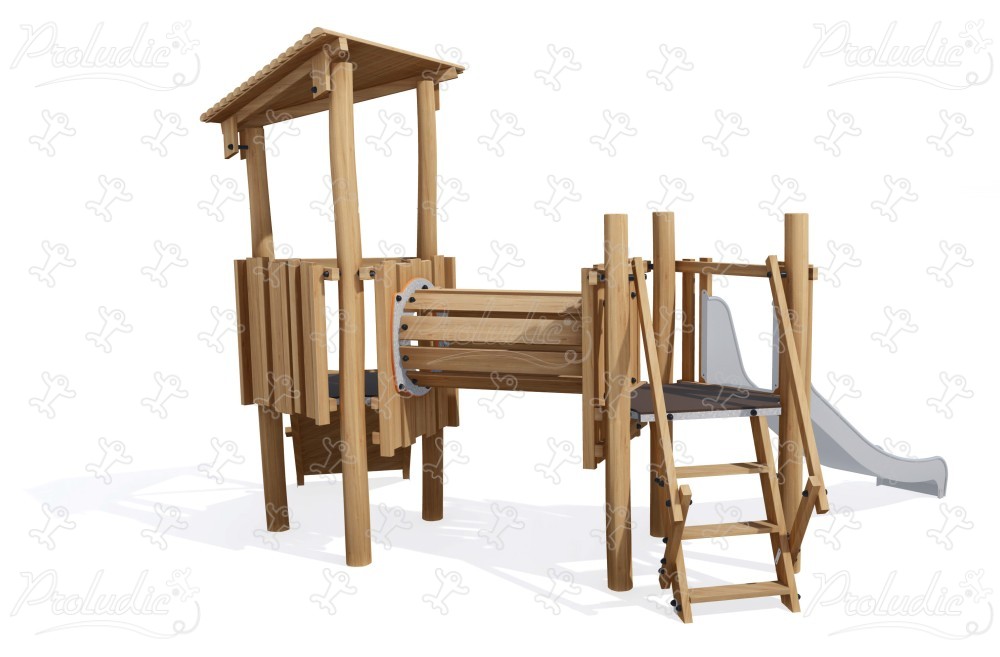

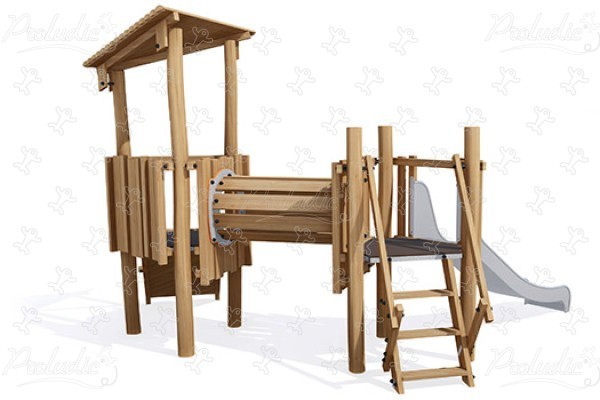

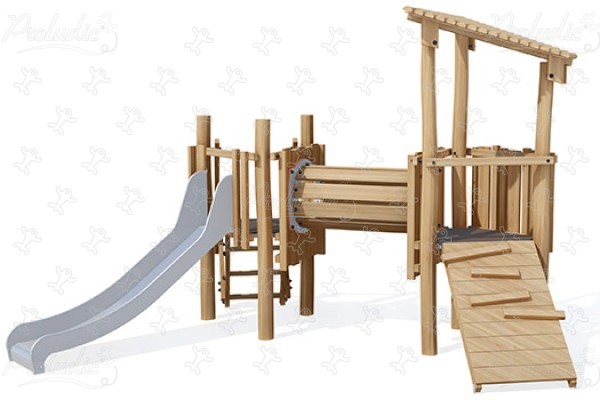

Multi play structures - J4933

We have created the reference J4933 in our "Multi play structures" range. This play equipment is accessible from 2 years. It can accommodate up to 12 users.

“The J4933 staircase means that the unit is accessible for users from 2 years upwards. The colours are compatible with other existing Proludic ranges such as Kanopé, giving a consistent look. The larch slats are available in both a natural and a two-tone green finish. The complete stainless steel slide and HPL platforms ensure the long term durability of the product.”

Other finishes available

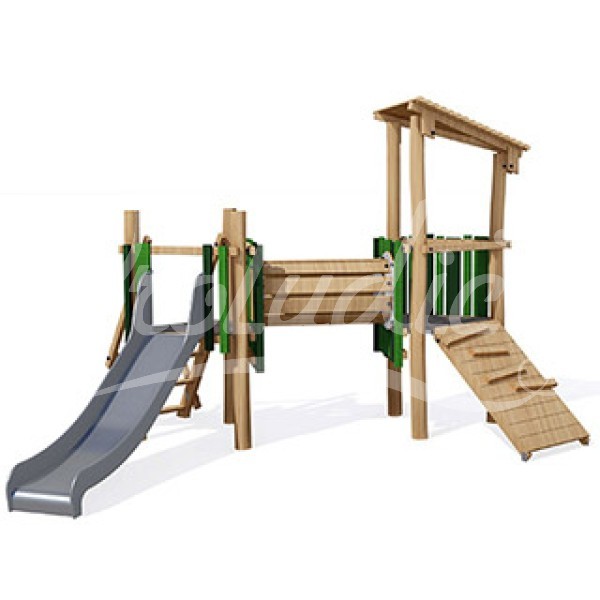

J4933-V

10 play functions

Role play x1

Role plays promote the child's intellectual and social skills.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

By playing together, children learn how to interact with other personalities and behaviors.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	2+
Number of users:	12 users
FFH :	1.00 m

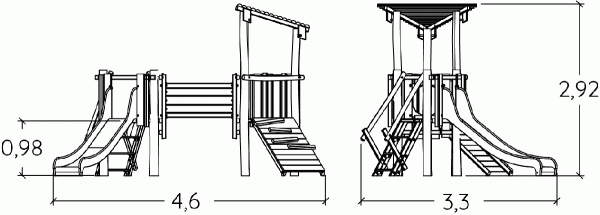

Size:	3.30 x 4.60 x 2.90 m

Equipment installation

Number of installers:	2
Installation time:	12:00:00

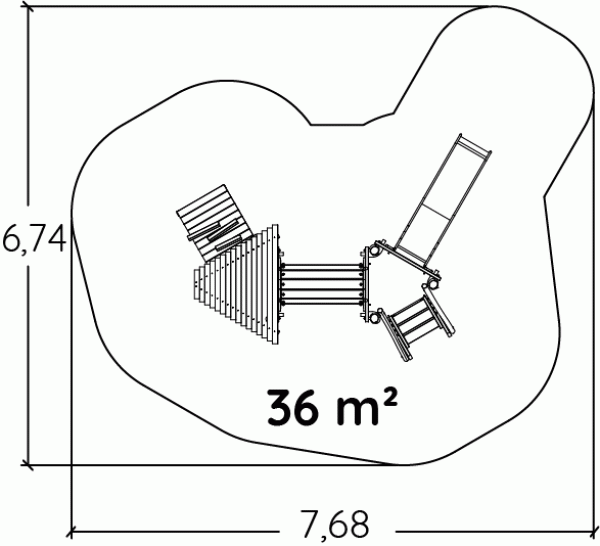

Surface:	36.00 m2
Total weight:	543.03 kg
Weight of the heaviest element:	53.27 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The different posts (average diameter: 60 to 80mm / 100 to 120mm / 120 to 140mm) are made from sap free robinia. The robinia is sanded and has had its bark removed.... Robinia is naturally rot proof and does not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platforms. Read more

The roofs are made from larch logs (80 x 40 mm).

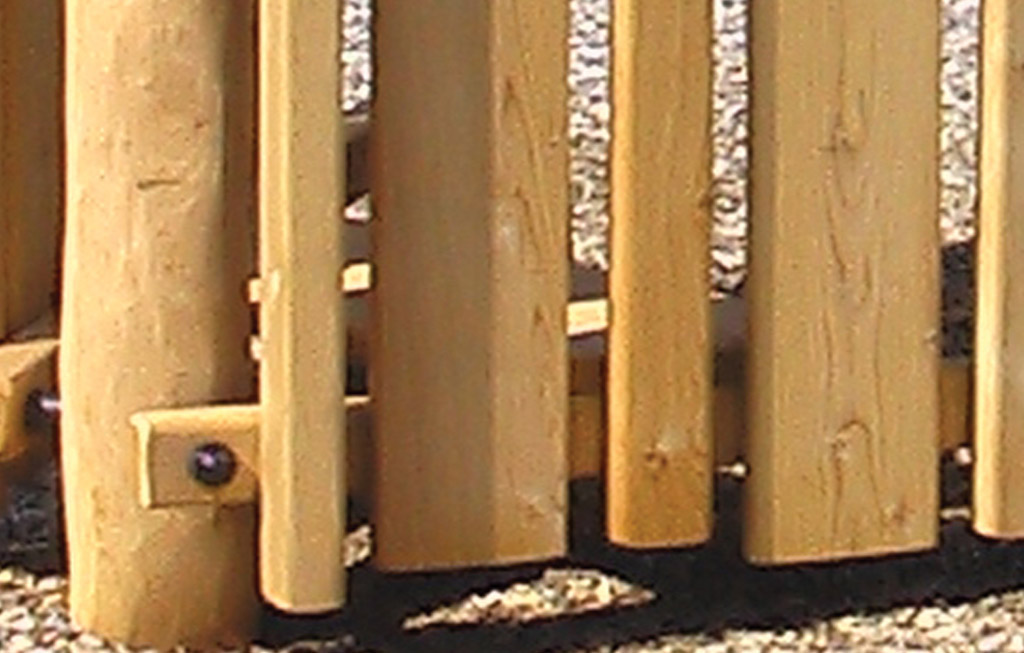

The panels, the climbing wall, the steps and the tunnel are made from larch (plank sizes 140 x 27mm / 45 x 68mm). Larch is naturally resistant and long lasting.
