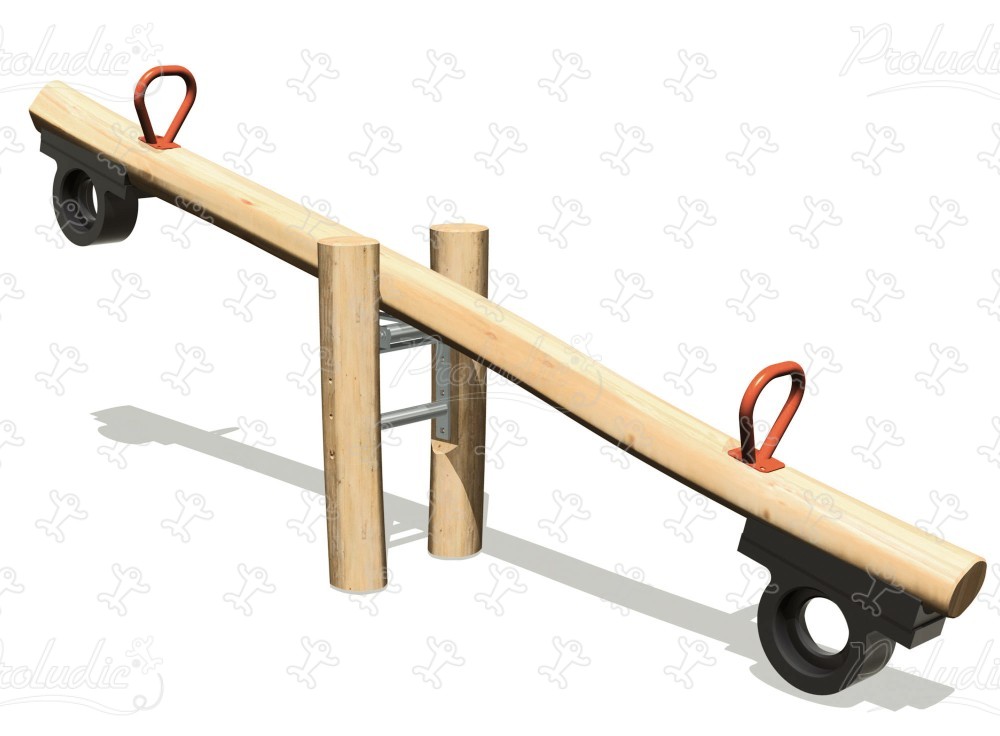

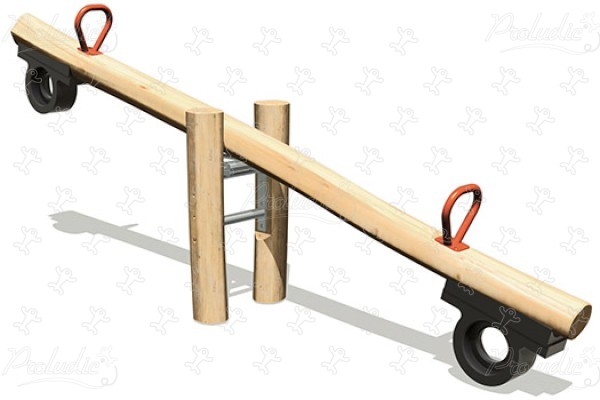

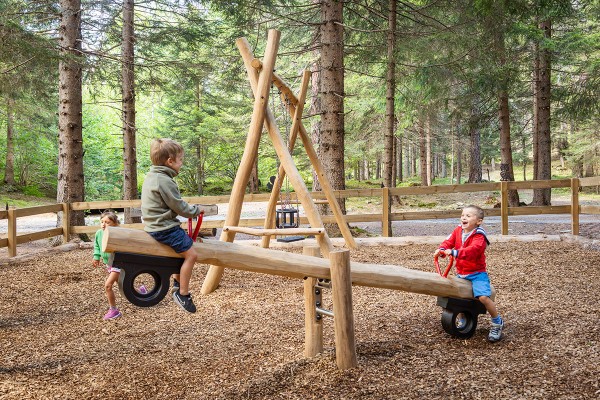

Springers - Seesaw - J4920

We have created the reference J4920 in our "Springers" range. This play equipment is accessible from 3 years. It can accommodate up to 2 users.

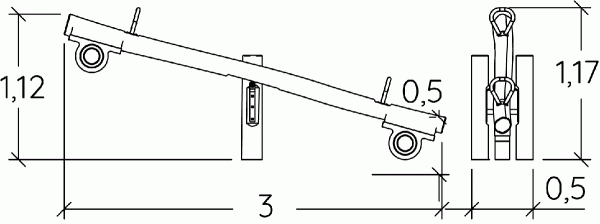

The size of the module is: 3.00 m length, 0.50 m width, 1.12 m. high. The free fall height (FFH) is 1.17 m.

3 play functions

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Swinging x1

To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Specifications

Age range:	3+
Number of users:	2 users
FFH :	1.17 m
Size:	3.00 x 0.50 x 1.12 m

Equipment installation

Number of installers:	2
Installation time:	01:00:00
Concrete volume:	0.16 m3

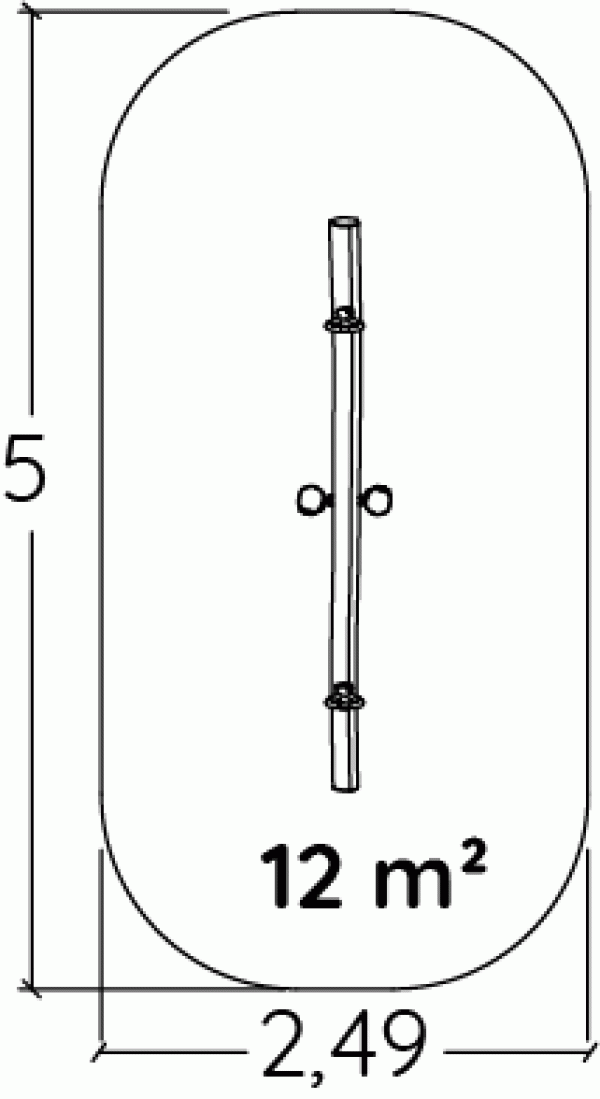

Surface:	12.00 m2
Total weight:	92.84 kg
Weight of the heaviest element:	48.02 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

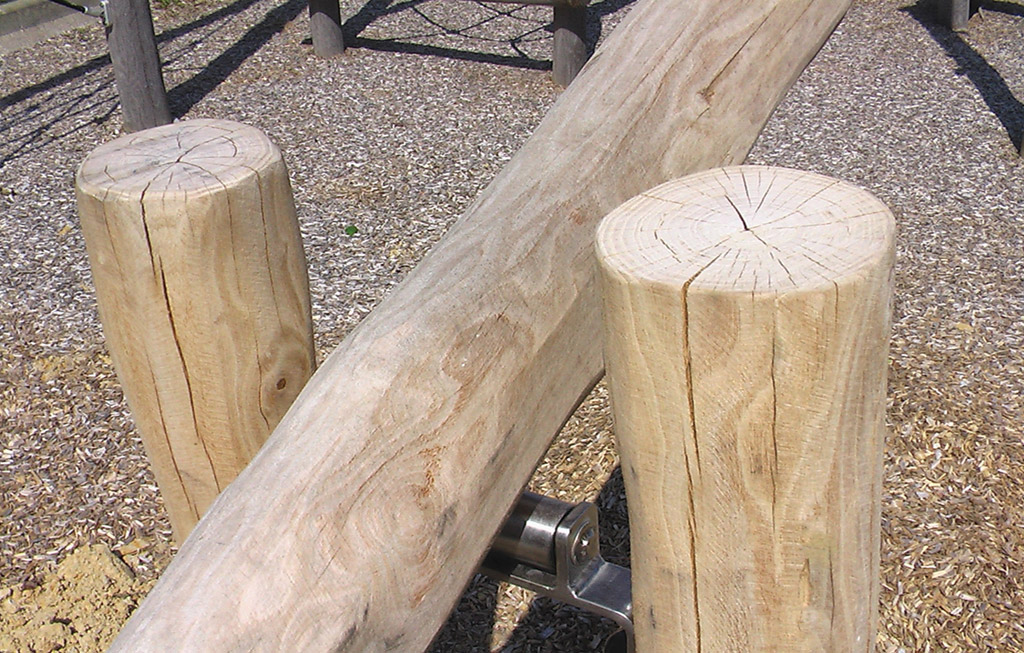

The posts and the horizontal beam (diameter 120 to 140mm), are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does... not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more
