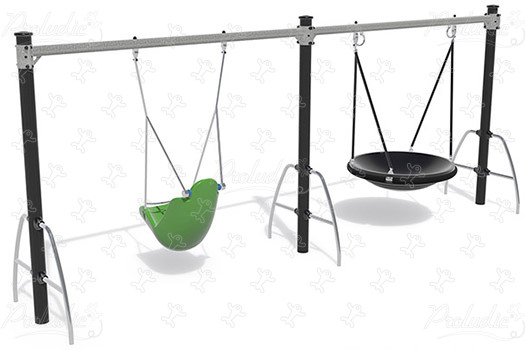

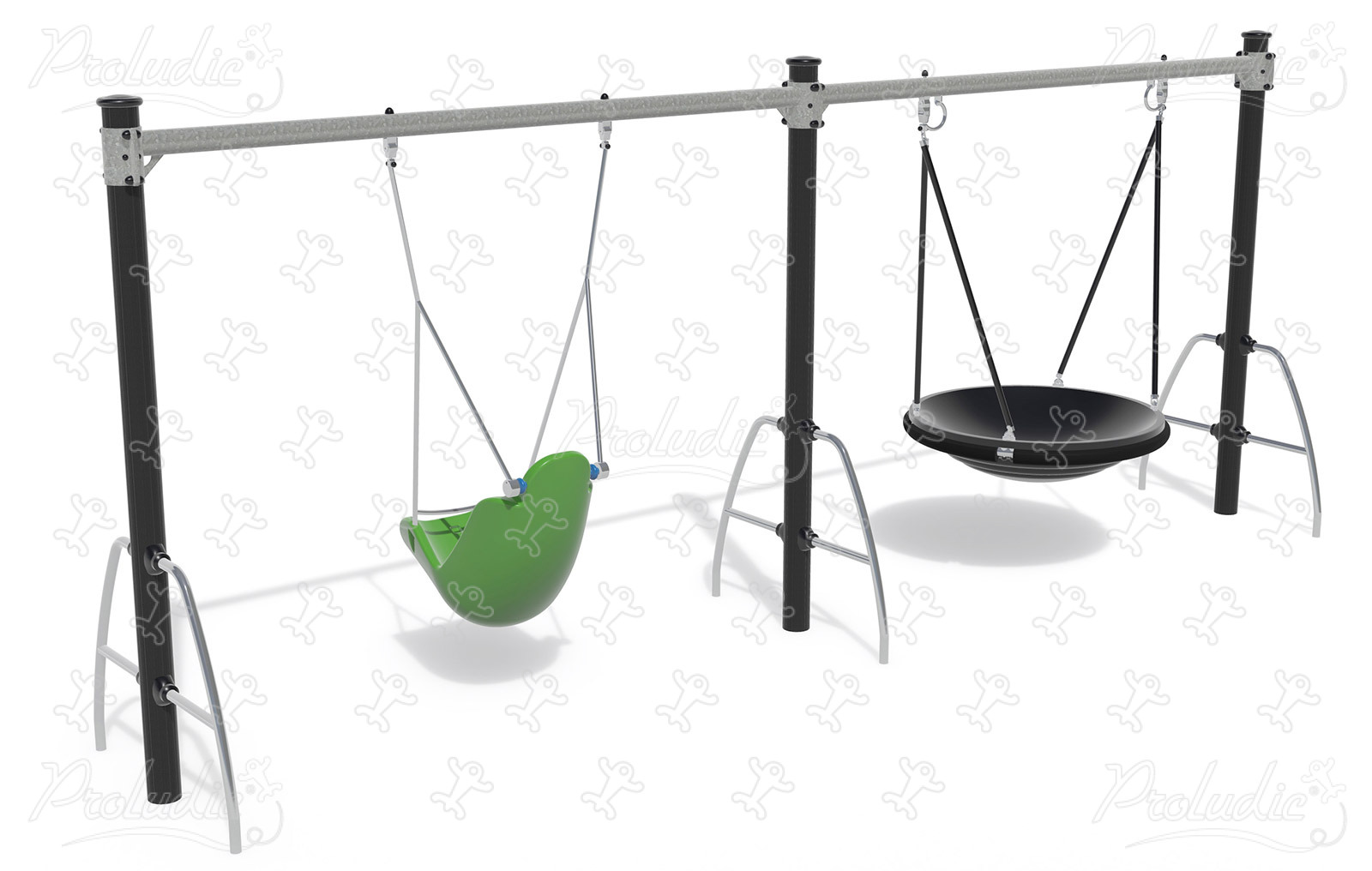

Swings - Pod seat, 1 boat seat - J492

We have created the reference J492 in our "Swings" range. This play equipment is accessible from 2 years. It can accommodate up to 6 users.

The size of the module is: 6.00 m length, 1.22 m width, 2.62 m. high. The free fall height (FFH) is 1.65 m.

Other finishes available

J492-G®

3 play functions

Resting x1

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Swinging x1

To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.

Specifications

Age range:	2+
Number of users:	6 users
FFH :	1.65 m
Size:	6.00 x 1.22 x 2.62 m

Equipment installation

Number of installers:	2
Installation time:	03:00:00
Concrete volume:	1.00 m3
Surface:	34.00 m2
Total weight:	191.78 kg
Weight of the heaviest element:	43.18 kg

Environmental Indicators

Repairability

9.29 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The horizontal beams of the swings are made of non-painted galvanised steel.

The swing bearings are made of stainless steel.

The pod is made from a single piece of 30%-recycled rotomoulded polyethylene. It is fixed to a stainless steel frame that is fitted with buffers. The pod is... suspended from galvanised steel ropes covered by PVC. Read more

PVC sliding rings are fitted to limit the wear of the metal parts over time. The rings are accessed by a vandal proof, stainless steel shackle. The swing chains are... made of galvanised steel. Read more

The swing seat is made of a stainless steel frame with a rubber seat pad incorporating a stainless steel cable. The swing chains are made of stainless steel.
