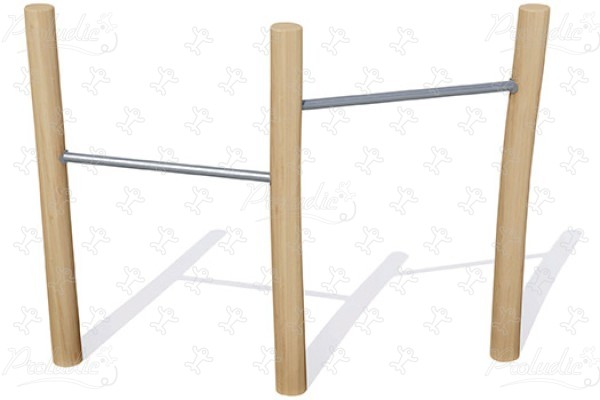

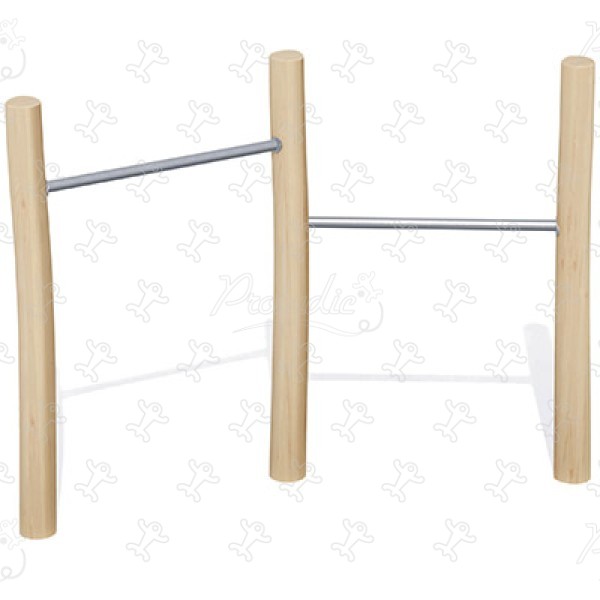

Climbing and balancing trails - Fixed Bars - J4916

We have created the reference J4916 in our "Climbing and balancing trails" range. This play equipment is accessible from 10 years. It can accommodate up to 2 users.

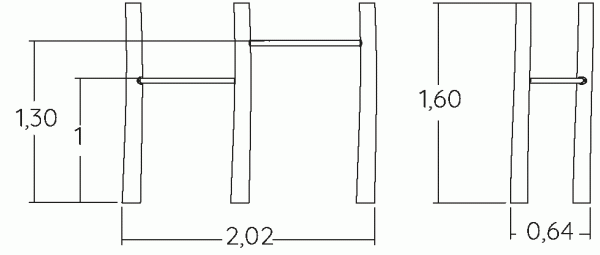

The size of the module is: 2.03 m length, 0.66 m width, 1.60 m. high. The free fall height (FFH) is 1.30 m.

2 play functions

Hanging x2

This fun activity allows you to explore a new way of playing, of managing space and the void below.

Specifications

Age range:	10+
Number of users:	2 users
FFH :	1.30 m
Size:	2.03 x 0.66 x 1.60 m

Equipment installation

Number of installers:	2
Installation time:	01:00:00
Concrete volume:	0.20 m3
Surface:	15.00 m2
Total weight:	79.65 kg
Weight of the heaviest element:	25.30 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The posts with average diameter 120 to 140mm are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more
