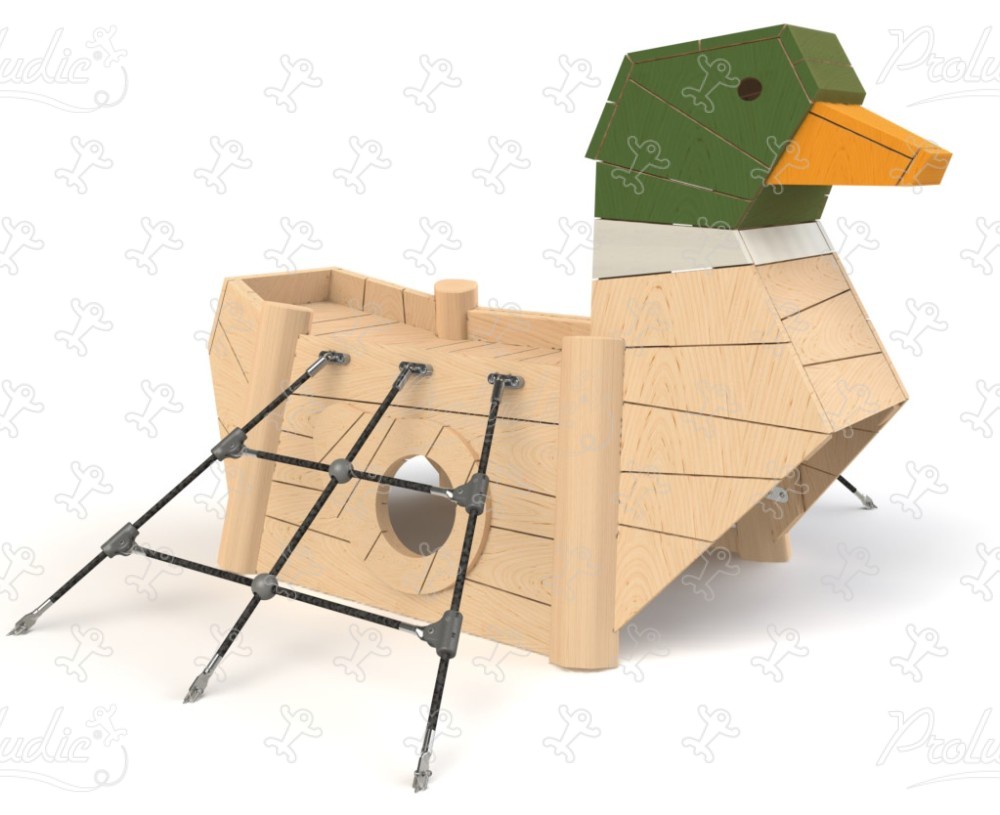

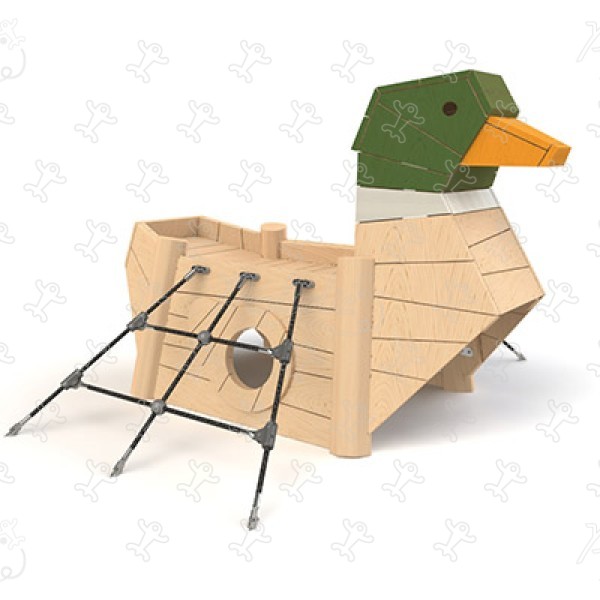

Adventures in nature - The Duck - J49137

We have created the reference J49137 in our "Adventures in nature" range. This play equipment is accessible from 2 years. It can accommodate up to 7 users.

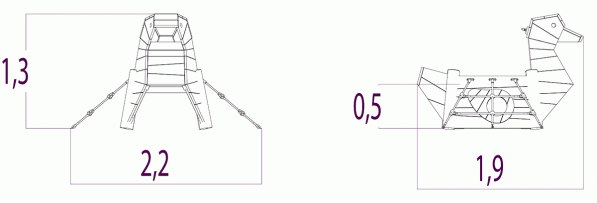

The size of the module is: 1.89 m length, 2.14 m width, 1.30 m. high. The free fall height (FFH) is 0.60 m.

9 play functions

Role play x1

Role plays promote the child's intellectual and social skills.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Balancing x2

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Visual stimulation x1

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Specifications

Age range:	2+
Number of users:	7 users
FFH :	0.60 m
Size:	1.89 x 2.14 x 1.30 m

Equipment installation

Number of installers:	2
Installation time:	40:00:00
Concrete volume:	0.35 m3

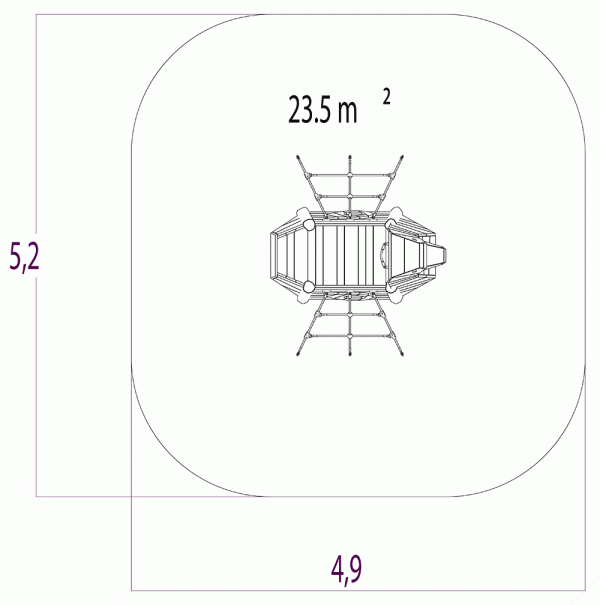

Surface:	24.50 m2
Total weight:	190.42 kg
Weight of the heaviest element:	174.41 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Video - Adventures in nature - The Duck - J49137

Materials

The posts with average diameter 120 to 140mm are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The boards are made from sap free robinia (plank sizes: 22 / 27mm). The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does... not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. The coloured panels are using a staining process. Read more

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
