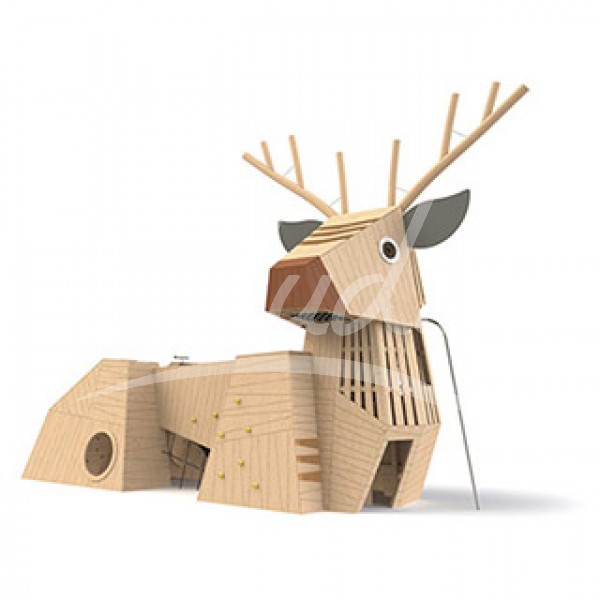

Adventures in nature - Deer - J49133®

We have created the reference J49133® in our "Adventures in nature" range. This play equipment is accessible from 2 years. It can accommodate up to 54 users.

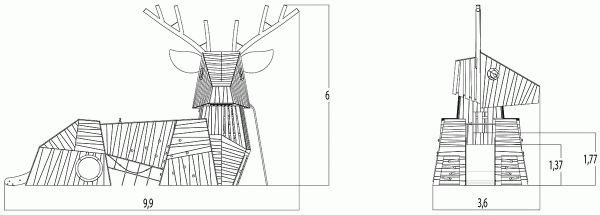

The size of the module is: 9.81 m length, 3.21 m width, 6.15 m. high. The free fall height (FFH) is 1.80 m.

34 play functions

Climbing x3

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Role play x1

Role plays promote the child's intellectual and social skills.

Sliding x2

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Resting x2

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Handling x3

A great exercise for developing motor skills and abilities in young children while having fun.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Swinging x1

To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.

Balancing x5

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Sound stimulation x2

Popular and often shared by numerous children, fun sound activities bring even more life to play areas!

Tactile stimulation x3

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Visual stimulation x5

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x5

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Specifications

Age range:	2+
Number of users:	54 users
FFH :	1.80 m
Size:	9.81 x 3.21 x 6.15 m

Equipment installation

Number of installers:	3
Installation time:	30:00:00
Concrete volume:	1.90 m3

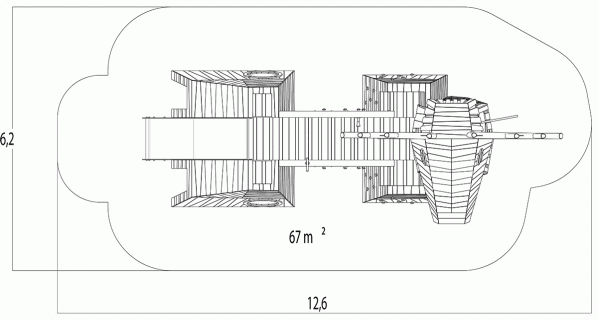

Surface:	67.00 m2
Total weight:	4019.45 kg
Weight of the heaviest element:	3792.56 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Video - Adventures in nature - Deer - J49133®

Materials

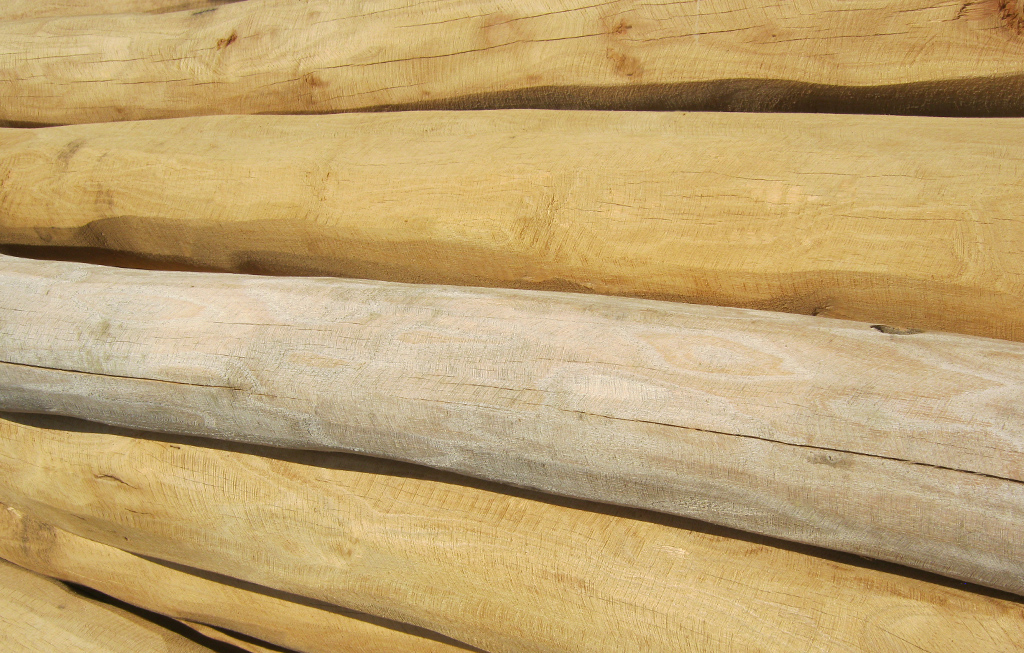

The different posts (average diameter: 100 to 120mm / 120 to 140mm) are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is... naturally rot proof and does not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The boards are made from natural robinia wood or Douglas fir (plank sizes: 22 and 27mm). Robinia wood and Douglas fir are naturally rot proof and do not... require any additional chemical protection; they are equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. The coloured panels are using a staining process. Read more

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
