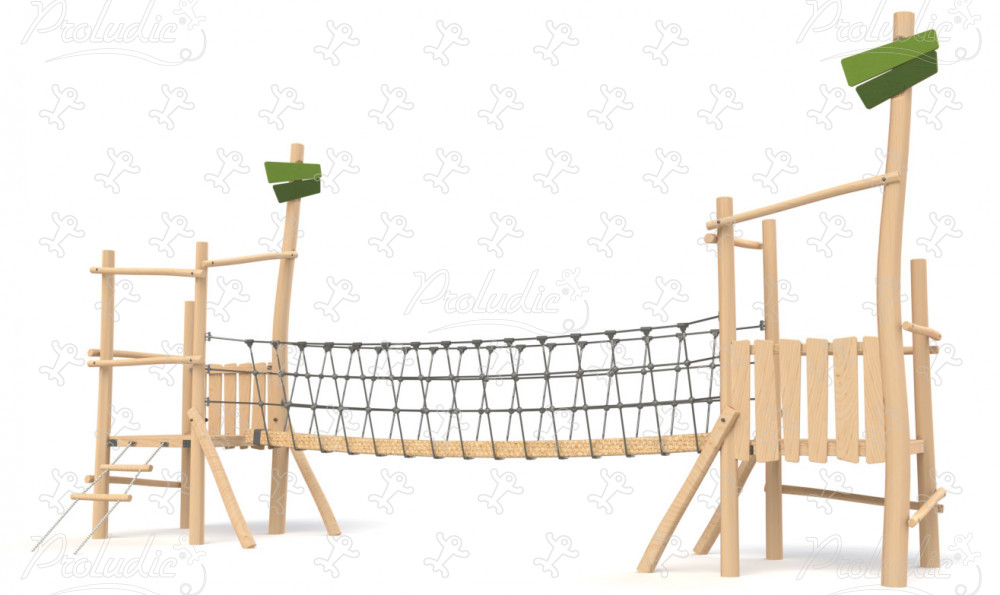

Adventure - Suspended Bridge - J49125®

We have created the reference J49125® in our "Adventure" range. This play equipment is accessible from 3 years. It can accommodate up to 21 users.

The size of the module is: 7.79 m length, 2.46 m width, 3.95 m. high. The free fall height (FFH) is 0.97 m.

5 play functions

Meeting x2

By playing together, children learn how to interact with other personalities and behaviors.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	3+
Number of users:	21 users
FFH :	0.97 m

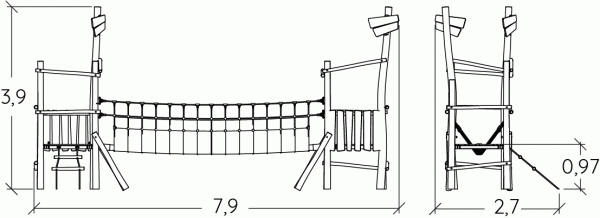

Size:	7.79 x 2.46 x 3.95 m

Equipment installation

Number of installers:	2
Installation time:	08:00:00
Concrete volume:	0.80 m3

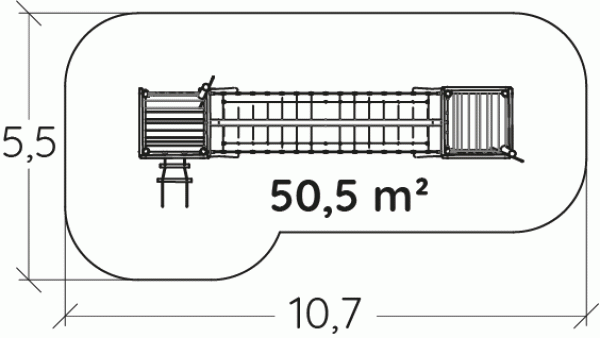

Surface:	50.00 m2
Total weight:	1869.17 kg
Weight of the heaviest element:	1147.24 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The different posts are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The boards are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. The coloured panels are using a staining process. Read more

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
