Swings - 6 flat seats - J482

We have created the reference J482 in our "Swings" range. This play equipment is accessible from 3 years. It can accommodate up to 6 users.

“

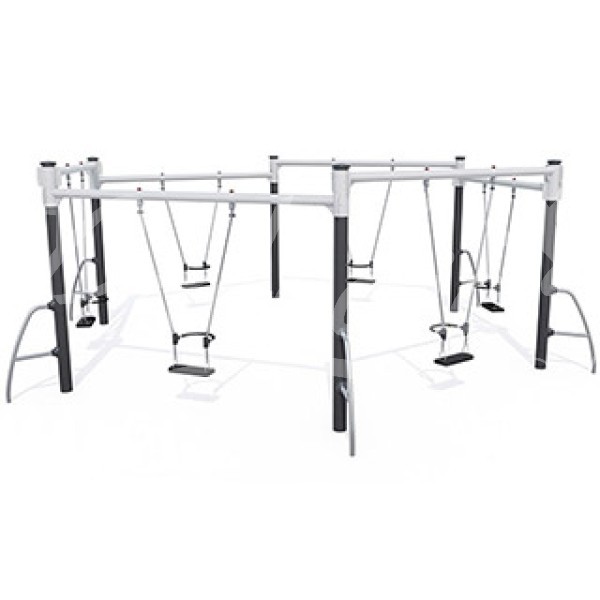

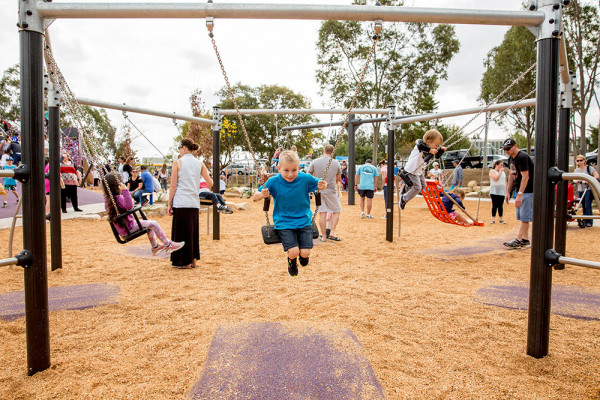

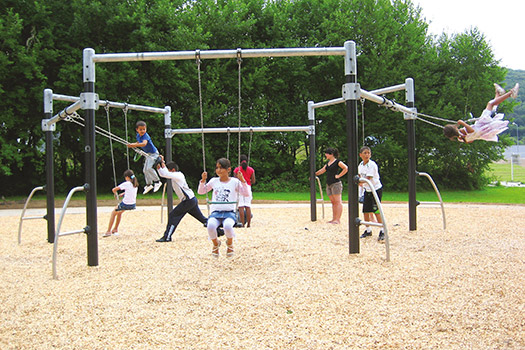

J482 – Hexagonal Swing

This is a great piece of equipment for individual or group use. Children love the play sensation of being able to swing towards each other. Also in an ‘anti-wrap’ option. Make sure customers compare like with like – competitors’ swings often only feature 5 seats not 6 like ours.”

2 play functions

Swinging x1

To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Specifications

Age range:	3+
Number of users:	6 users
FFH :	1.40 m

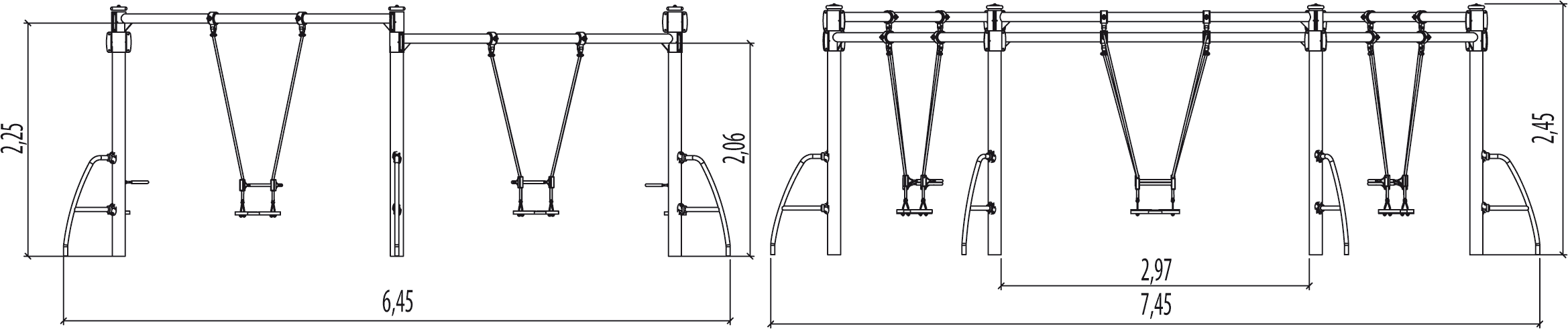

Size:	6.45 x 7.45 x 2.45 m

Equipment installation

Number of installers:	2
Installation time:	03:30:00
Concrete volume:	0.54 m3

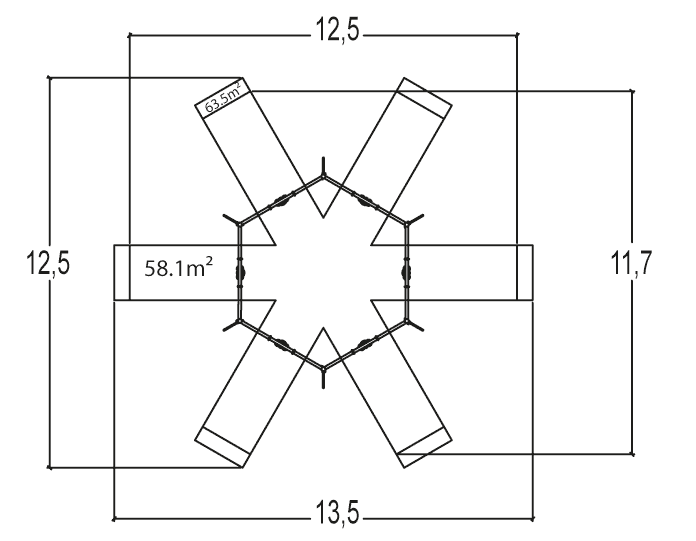

Surface:	58.50 m2
Total weight:	374.96 kg
Weight of the heaviest element:	35.64 kg

Environmental Indicators

Repairability

9.29 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The horizontal beam is made of non-painted galvanised steel.

The anti-wrapping system consists of polyamide parts and stainless steel collars. The swing bearings are made of stainless steel.

The swing seats are made of shock absorbing moulded honeycomb rubber. The swing chains are made of stainless steel. The seat fixing brackets are made of 10mm... stainless steel wire. PVC sliding rings are fitted to limit the wear of the metal parts over time. The rings are accessed by a vandal proof, stainless steel shackle. Read more
