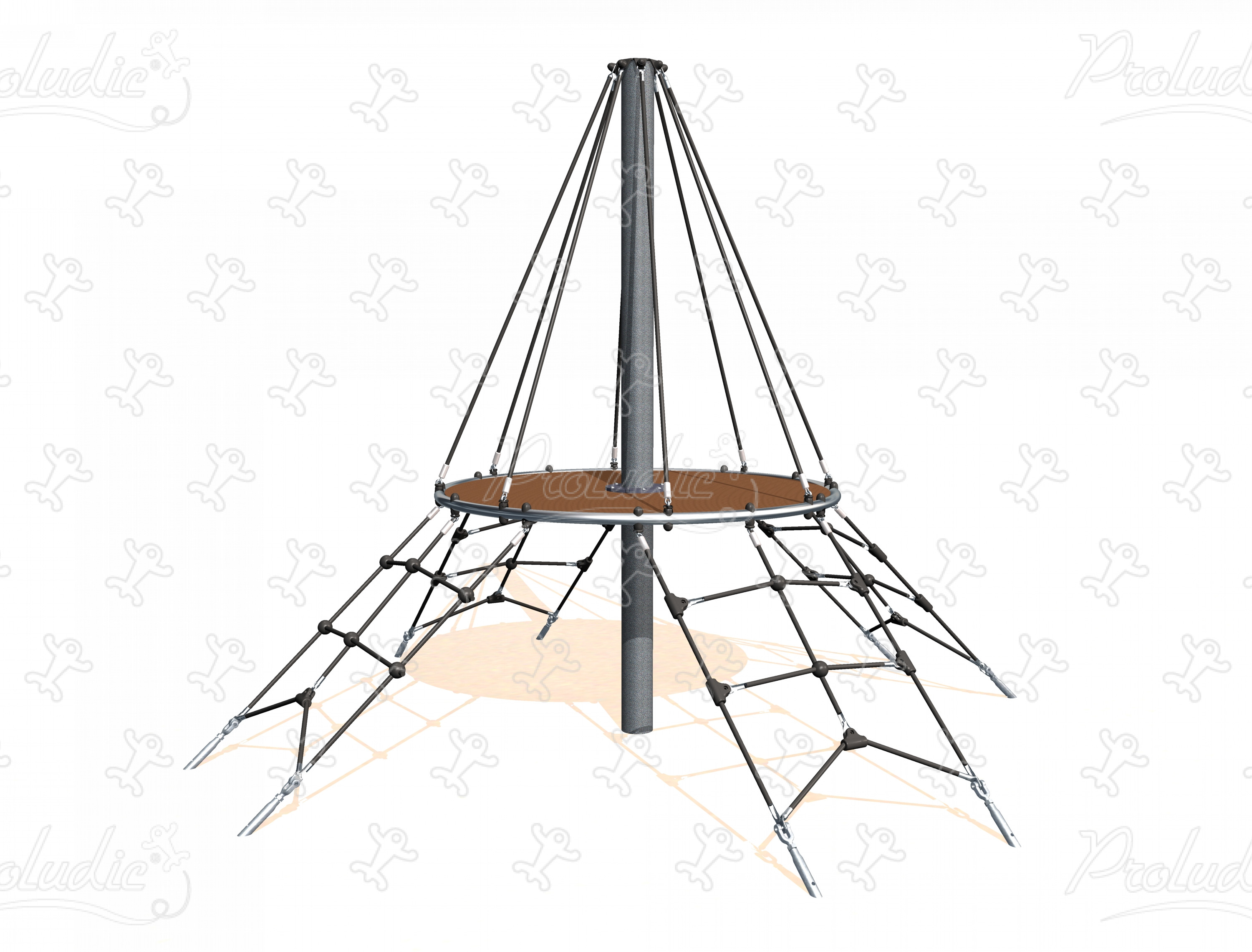

Climbing equipment - Small Pyramid - J4815

We have created the reference J4815 in our "Climbing equipment" range. This play equipment is accessible from 3 years. It can accommodate up to 12 users.

“

J4851 Rope Play

The J4815 enables children aged to move around a relatively simple 3D space. This product has a platform which makes it more suited for younger ages.”

Specifications

Age range:	3+
Number of users:	12 users
FFH :	0.97 m
Size:	3.00 x 3.00 x 2.60 m

Equipment installation

Number of installers:	2
Installation time:	02:00:00
Concrete volume:	1.00 m3
Surface:	31.00 m2
Total weight:	102.37 kg
Weight of the heaviest element:	43.98 kg

Environmental Indicators

Repairability

9.44 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

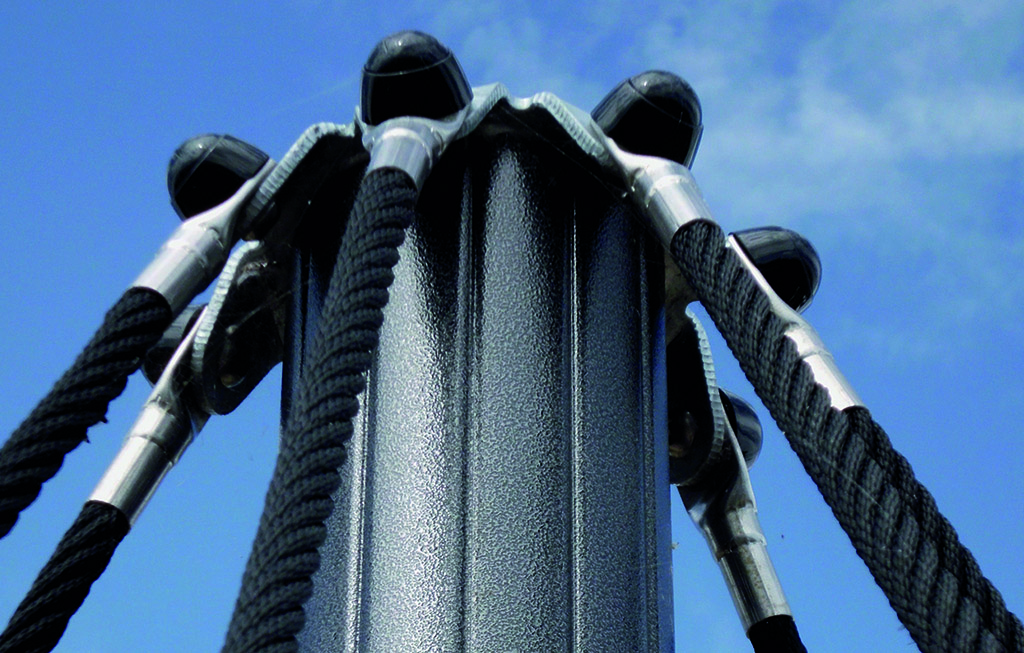

The 125mm diameter post is made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

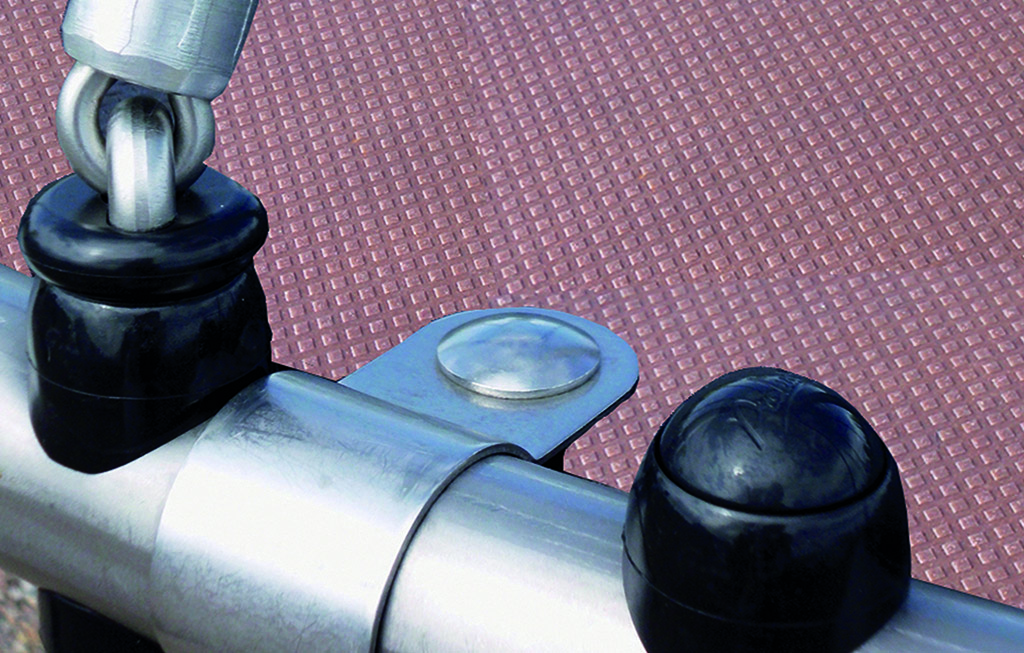

The platform is made from a textured and non-slip compact material (HPL), 19mm thick. The surface is circled with a 40mm diameter stainless steel tube.
