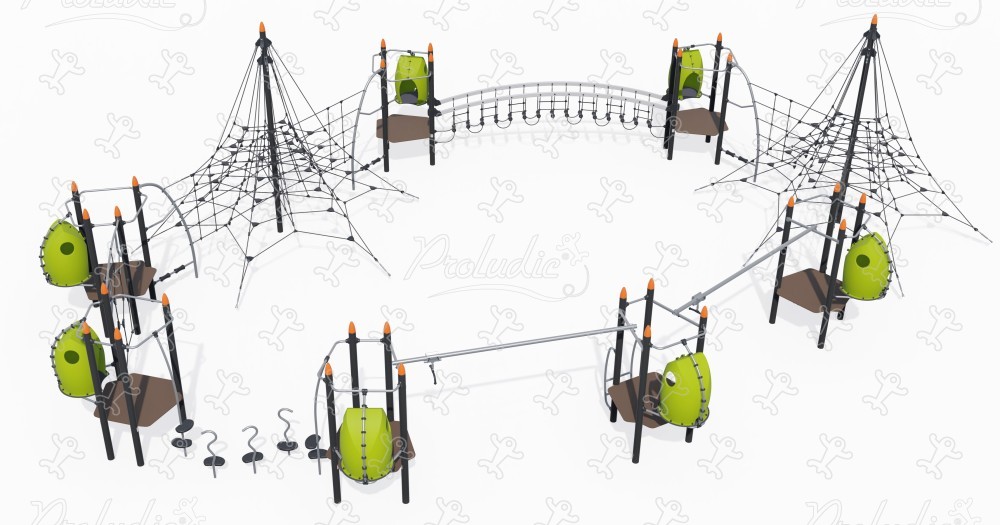

Rope structures - J4801

We have created the reference J4801 in our "Rope structures" range. This play equipment is accessible from 6 years. It can accommodate up to 60 users.

The size of the module is: 20.80 m length, 15.00 m width, 5.00 m. high. The free fall height (FFH) is 2.90 m.

70 play functions

Meeting x16

By playing together, children learn how to interact with other personalities and behaviors.

Resting x7

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

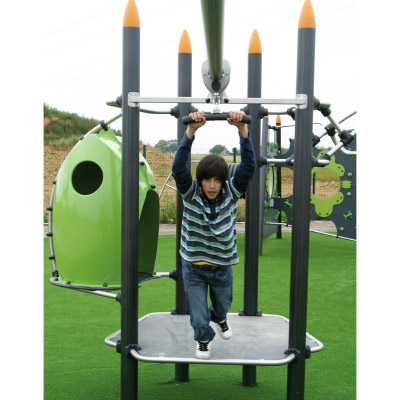

Hanging x5

This fun activity allows you to explore a new way of playing, of managing space and the void below.

Hiding x7

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Balancing x6

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Climbing x10

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x10

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Sliding x2

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Taking shelter x7

A refuge where the children can take shelter ensures that children have their own space.

Specifications

Age range:	6+
Number of users:	60 users
FFH :	2.90 m
Size:	20.80 x 15.00 x 5.00 m

Equipment installation

Number of installers:	4
Installation time:	20:00:00
Concrete volume:	7.00 m3

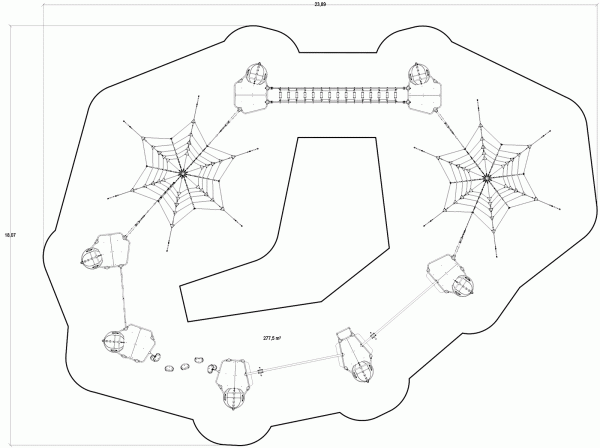

Surface:	277.50 m2
Total weight:	1946.51 kg
Weight of the heaviest element:	150.98 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... rotary moulded polyethylene. Read more

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The pod is made of 4mm thick polyester. It is a durable material and this ensures its resistance to weathering and UV radiation.

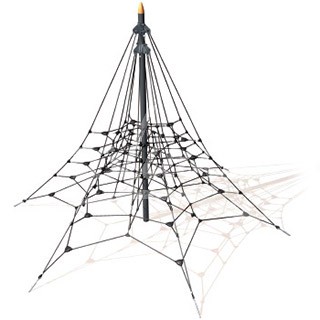

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
