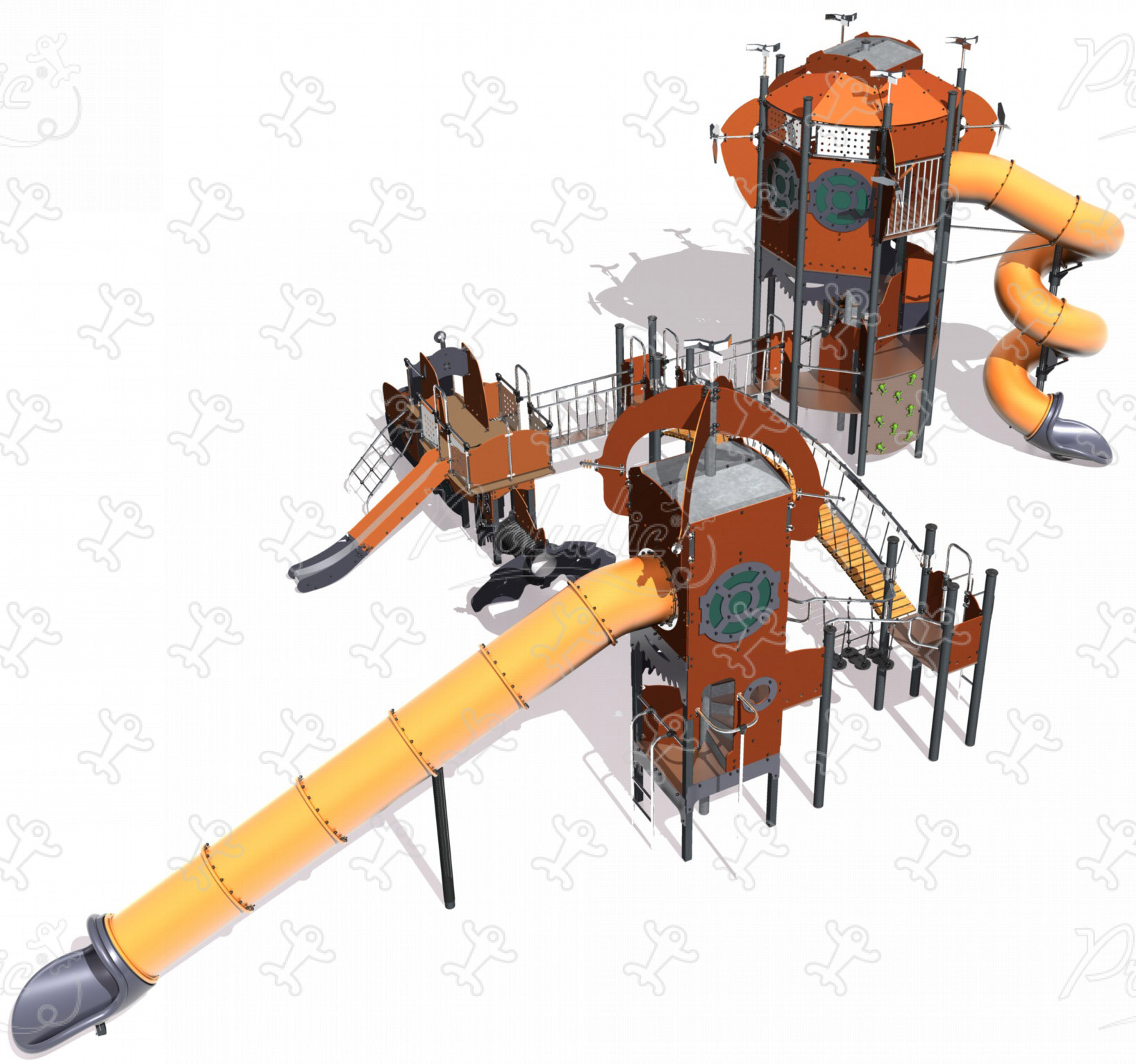

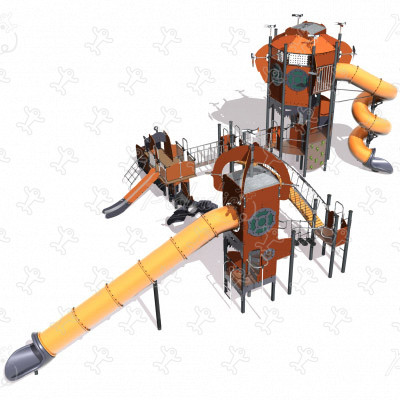

Metropolis - Double Tower - J47103-P

We have created the reference J47103-P in our "Metropolis" range. This play equipment is accessible from 3 years. It can accommodate up to 75 users.

The size of the module is: 20.00 m length, 13.00 m width, 7.00 m. high. The free fall height (FFH) is 2.37 m.

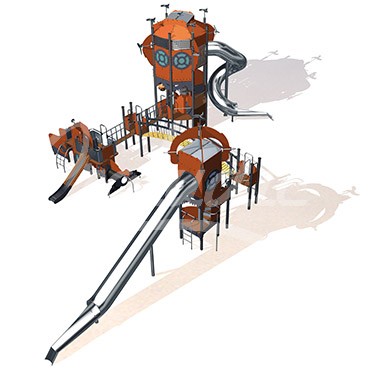

Other finishes available

J47103

15 play functions

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Role play x1

Role plays promote the child's intellectual and social skills.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Resting x1

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Handling x1

A great exercise for developing motor skills and abilities in young children while having fun.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Thinking x1

Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.

Sound stimulation x1

Popular and often shared by numerous children, fun sound activities bring even more life to play areas!

Visual stimulation x1

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	3+
Number of users:	75 users
FFH :	2.37 m

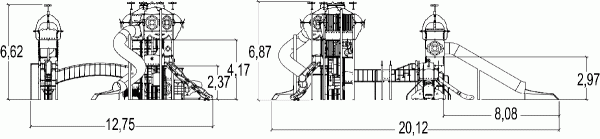

Size:	20.00 x 13.00 x 7.00 m

Equipment installation

Number of installers:	2
Concrete volume:	6.40 m3

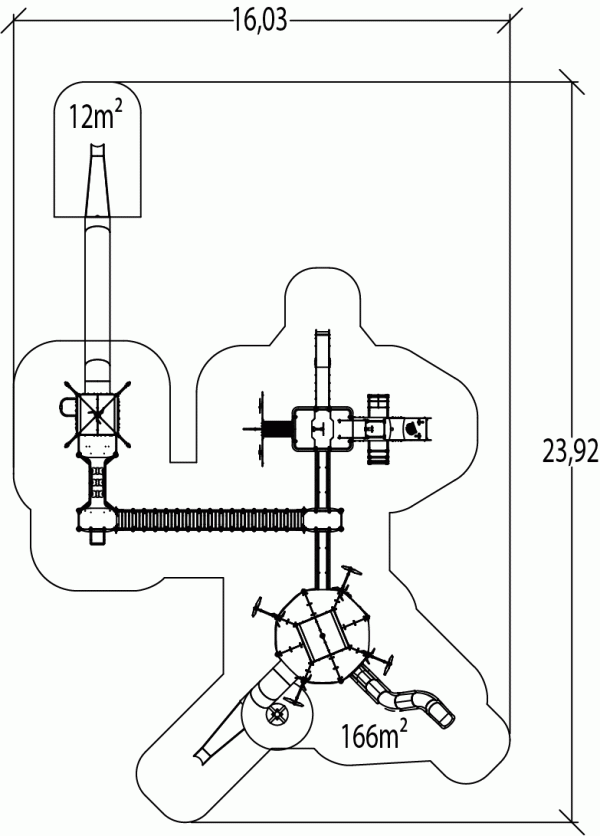

Surface:	177.00 m2
Total weight:	5258.13 kg
Weight of the heaviest element:	71.50 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The 95x95mm and 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

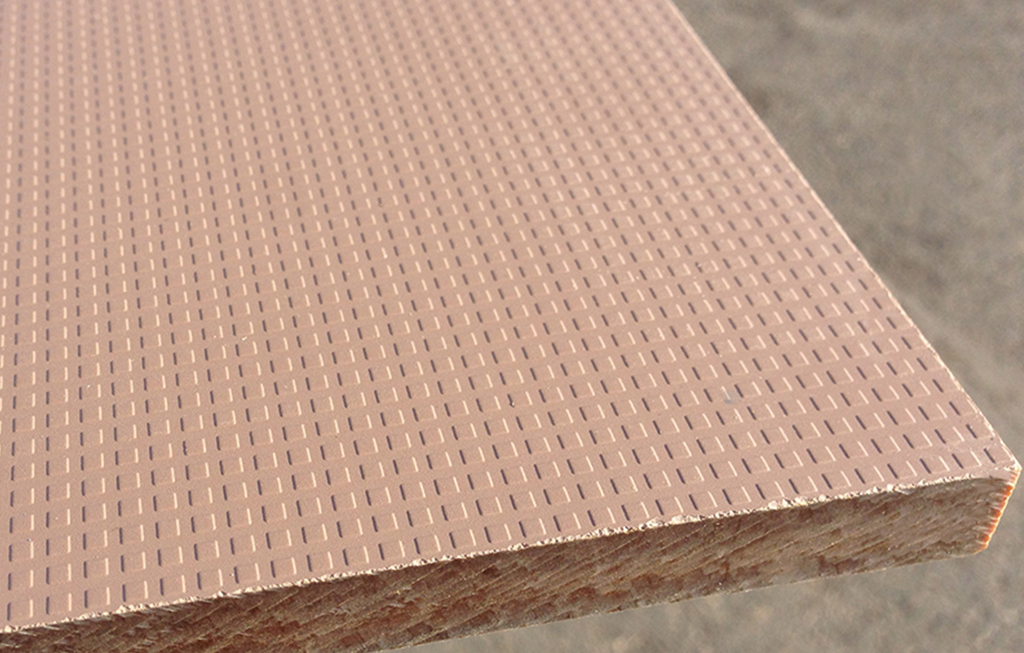

The platforms, the steps and the climbing walls are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The slides are made of rotomoulded polyethylene.

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The gangway floor is made of solid wood planks, with rubber elements between the planks to avoid all risk of catching a finger.

The steps of the catwalk are made with a non-slip rubber overmould.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
