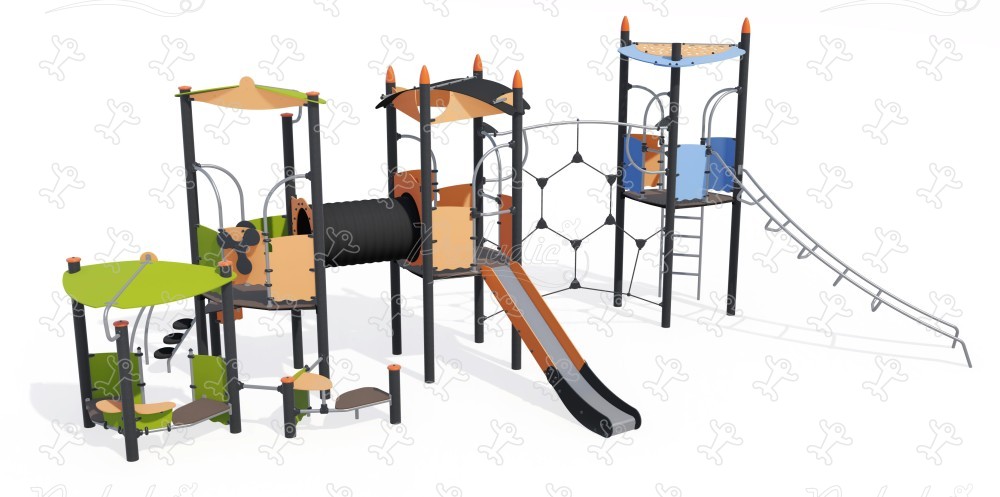

Biibox - J45416

We have created the reference J45416 in our "Biibox" range. This play equipment is accessible from 2 years. It can accommodate up to 35 users.

The size of the module is: 10.00 m length, 7.00 m width, 4.00 m. high. The free fall height (FFH) is 3.00 m.

24 play functions

Role play x2

Role plays promote the child's intellectual and social skills.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x5

By playing together, children learn how to interact with other personalities and behaviors.

Resting x2

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Handling x1

A great exercise for developing motor skills and abilities in young children while having fun.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Taking shelter x4

A refuge where the children can take shelter ensures that children have their own space.

Visual stimulation x1

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x4

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x2

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	2+
Number of users:	35 users
FFH :	3.00 m

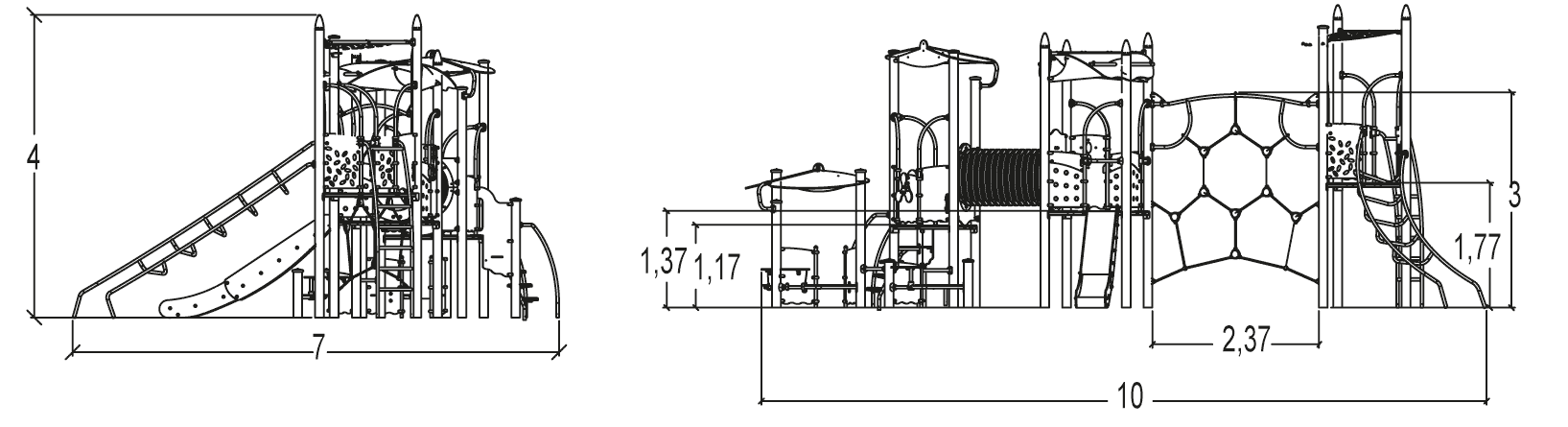

Size:	10.00 x 7.00 x 4.00 m

Equipment installation

Number of installers:	2
Installation time:	27:00:00
Concrete volume:	1.20 m3

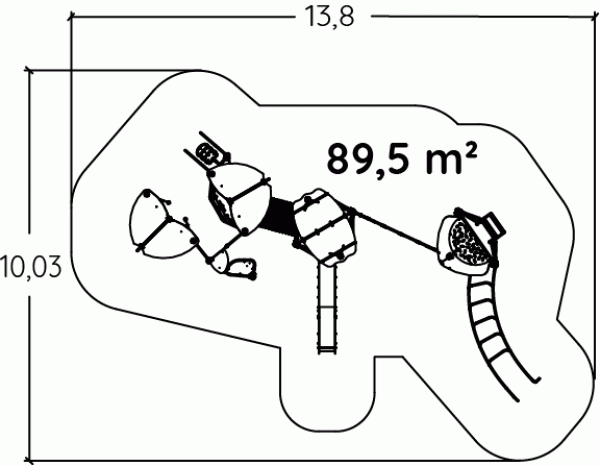

Surface:	89.50 m2
Total weight:	1176.82 kg
Weight of the heaviest element:	34.66 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The caps are made of rotary moulded polyethylene (A) or injection moulded polyamide (B).

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by lacquered galvanised steel supports,... located on the underside of the platforms. Read more

The play walls and roofs are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

Stainless steel version: the play walls bring together a coloured panel and a stainless steel sheet, 1.5mm thick with a patterned surface on both sides to make it scratch-proof. The roofs... are made of polyethylene 10mm thick. Read more

Aluminium version: the play walls and roofs are made of painted aluminium sheet 3mm thick, backed with a coloured panel.

The 16mm diameter rope is made of galvanised steel cable covered with polyester. The net fittings are made of polyamide and used to link three cords together.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
