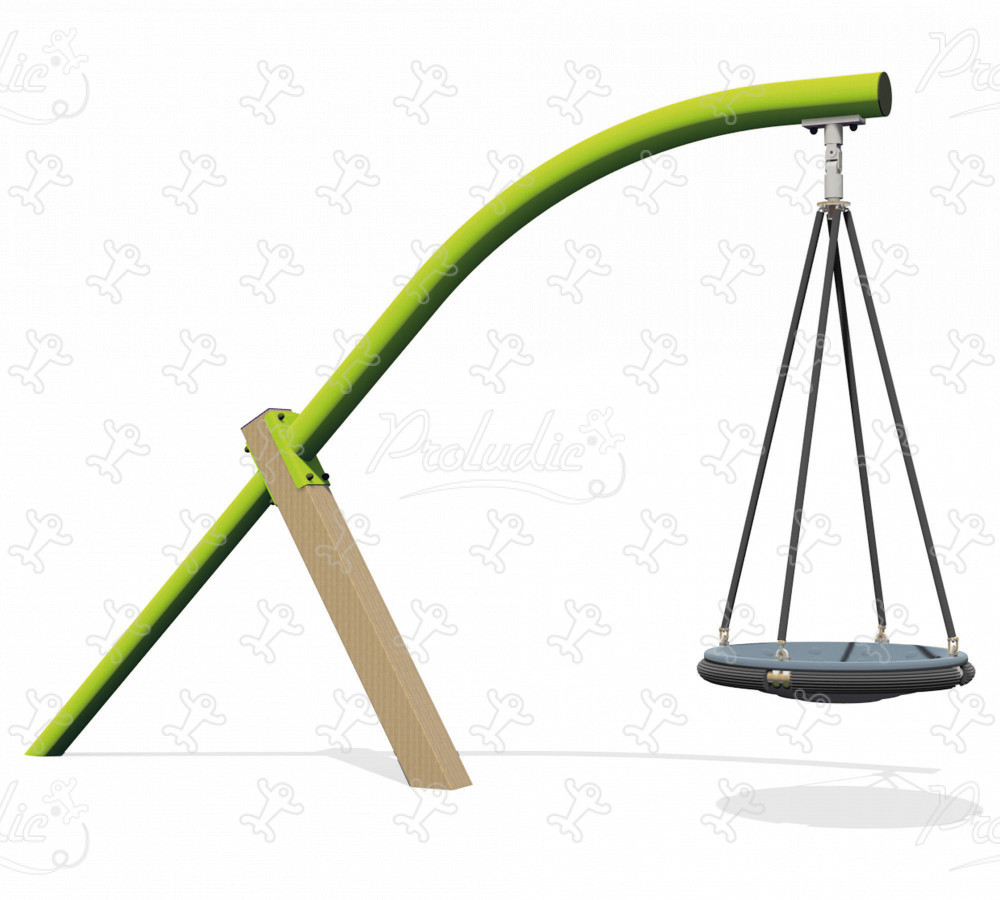

Swings - Pendulum Swing - J444®

We have created the reference J444® in our "Swings" range. This play equipment is accessible from 2 years. It can accommodate up to 5 users.

The size of the module is: 4.55 m length, 1.10 m width, 2.84 m. high. The free fall height (FFH) is 1.60 m.

4 play functions

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Swinging x1

To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Rotating x1

Turning allows the child to experience thrills, to experience speed and to feel the exhilaration of their head and body turning uncontrollably.

Specifications

Age range:	2+
Number of users:	5 users
FFH :	1.60 m
Size:	4.55 x 1.10 x 2.84 m

Equipment installation

Number of installers:	3
Installation time:	03:00:00
Concrete volume:	1.92 m3

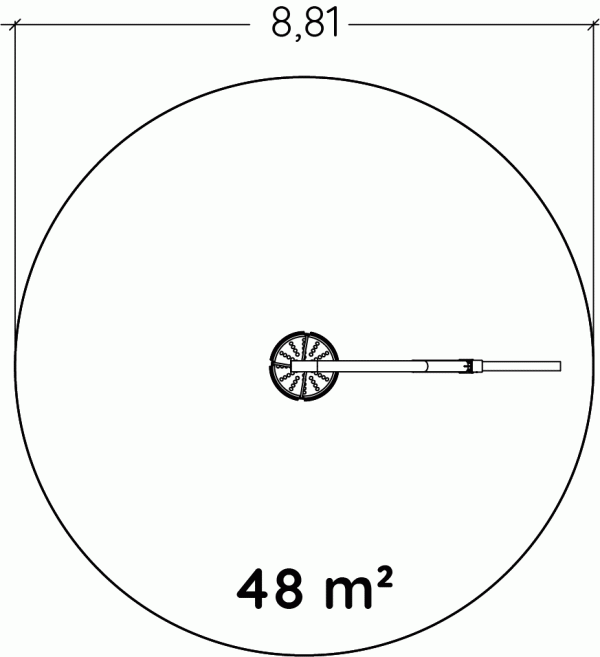

Surface:	48.00 m2
Total weight:	373.21 kg
Weight of the heaviest element:	127.40 kg

Environmental Indicators

Repairability

9.29 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

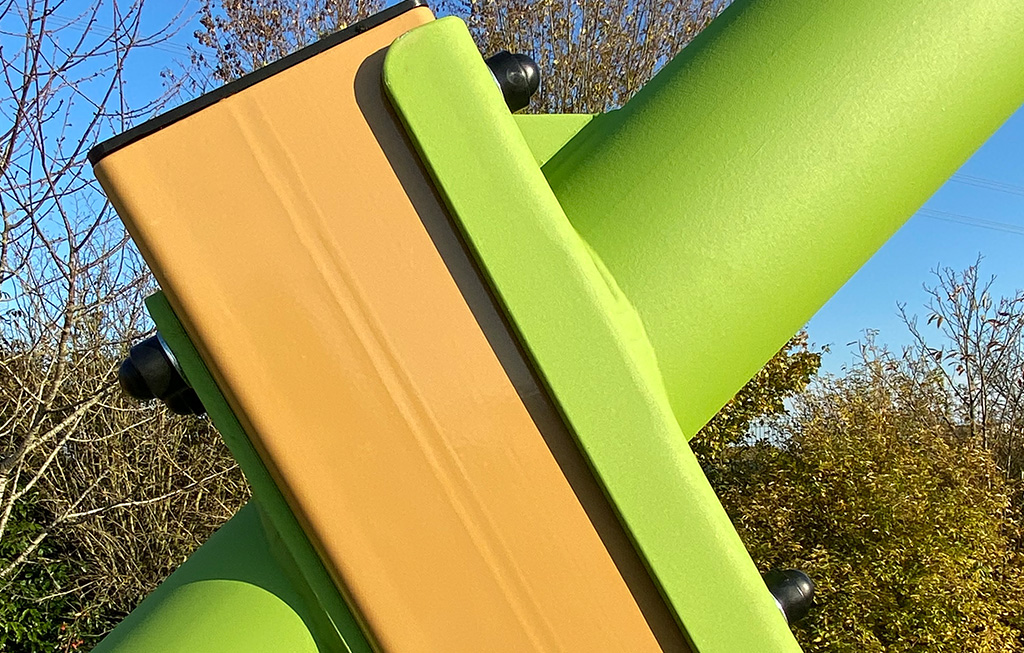

The posts are made of painted galvanised steel. The round post has a diameter of 168mm. Dimensions of the square beam 180 x 180 mm.

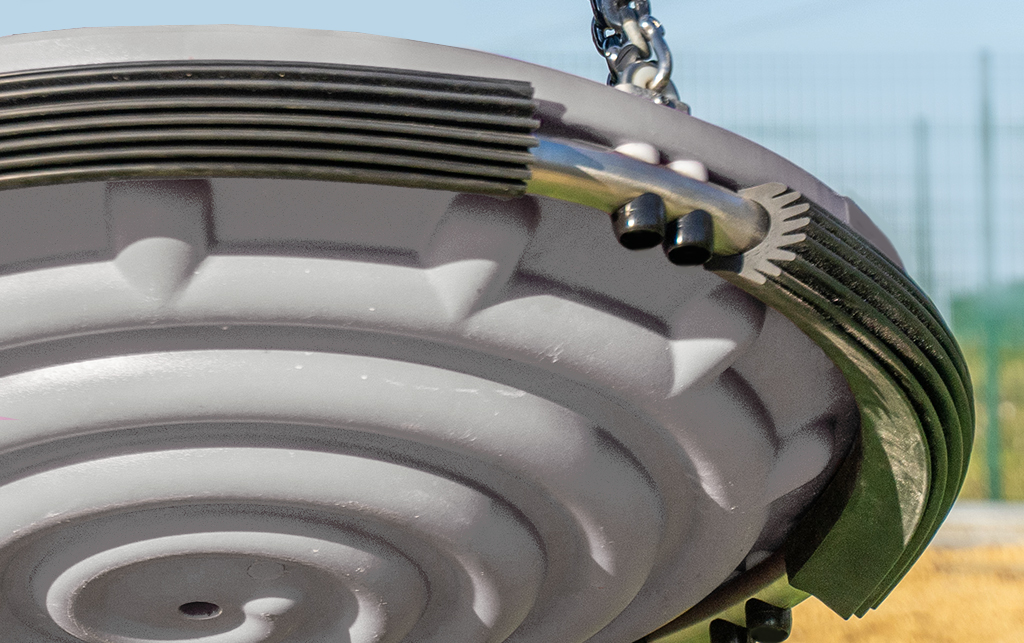

The pod seat is grey in colour and made from a single piece of rotomoulded polyethylene. It is fixed to a stainless steel frame that is fitted with buffers. The... pod is suspended from swing chains covered with thermal retracted polyethylene. Read more

PVC sliding rings are fitted to limit the wear of the metal parts over time. The rings are accessed by a vandal proof, stainless steel shackle. The swing chains are... made of galvanised steel. Read more
