Swings - Pod Swing - J441

This inclusive play equipment is a must in any play area. The sociable and inclusive pod swing is one of our best-selling pieces of playground equipment.

The size of the module is: 3.37 m wide, 2.10 m. deep, 2.60 m. high. The free fall height (FFH) is 1.55 m.

Other finishes available

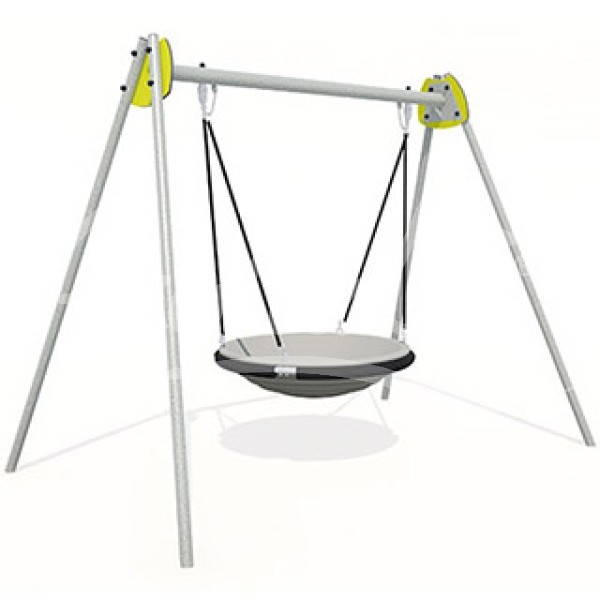

J441-G®

3 play functions

Swinging x1

To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Resting x1

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Specifications

Age range:	2+
Number of users:	5 users
FFH :	1.55 m
Size:	3.37 x 2.10 x 2.60 m

Equipment installation

Number of installers:	2
Installation time:	04:00:00
Concrete volume:	0.26 m3

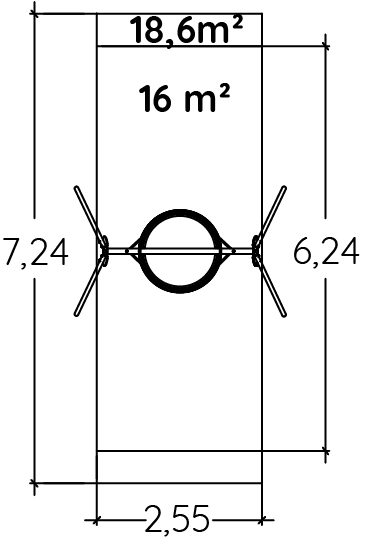

Surface:	16.00 m2
Total weight:	134.61 kg
Weight of the heaviest element:	43.18 kg

Environmental Indicators

Repairability

9.29 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The horizontal beam is manufactured from 89mm diameter galvanised steel.

The support legs are made from 60mm galvanised steel.

The pod is made from a single piece of 30%-recycled rotomoulded polyethylene. It is fixed to a stainless steel frame that is fitted with buffers. The pod is... suspended from galvanised steel ropes covered by PVC. Read more

PVC sliding rings are fitted to limit the wear of the metal parts over time. The rings are accessed by a vandal proof, stainless steel shackle. The swing chains are... made of galvanised steel. Read more

The double joined swing mechanism is made of stainless steel. A safety chain provides additional support for the pod.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
