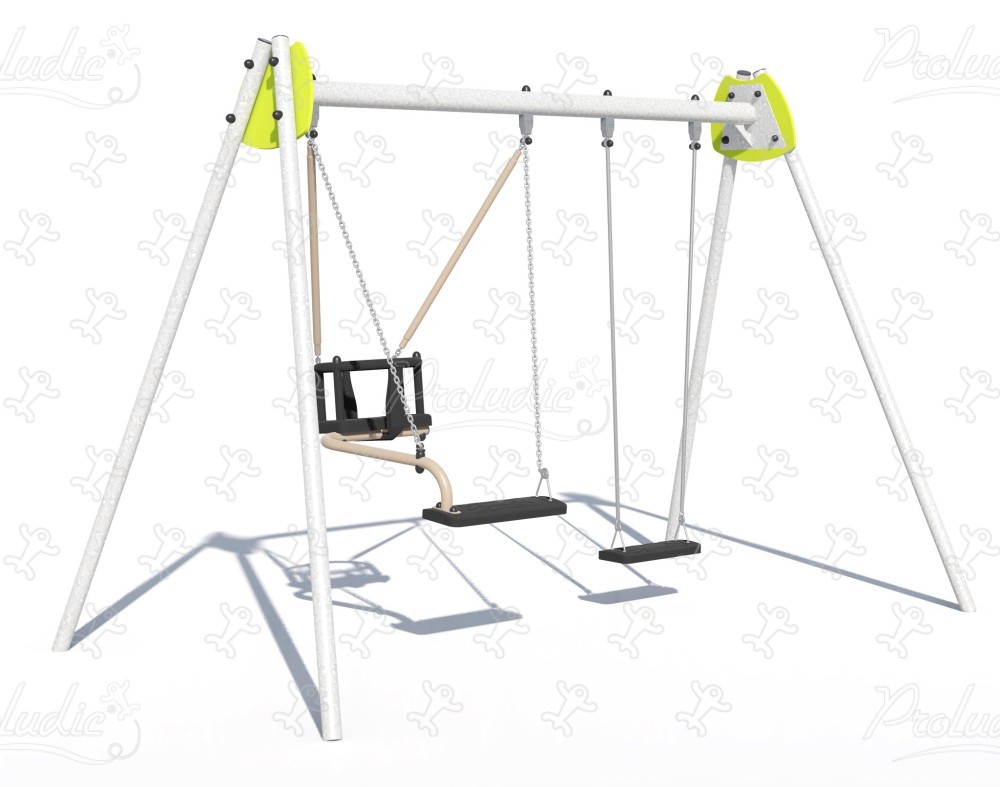

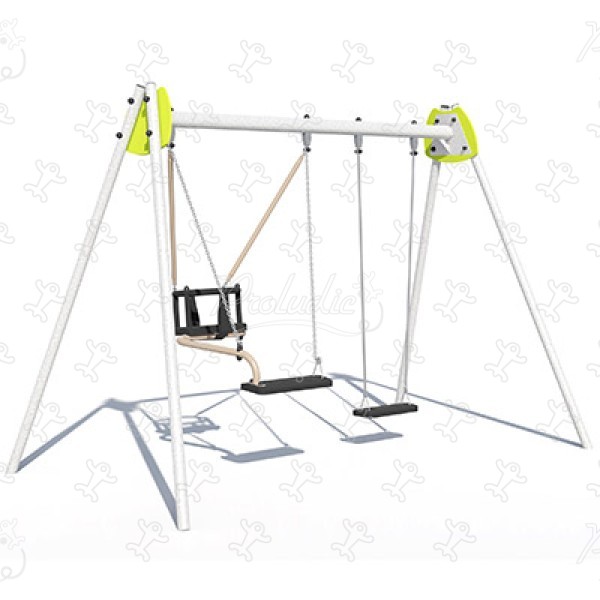

Swings - 1 duo seat, 1 flat seat - J438

We have created the reference J438 in our "Swings" range. This play equipment is accessible from 1 year. It can accommodate up to 2 users.

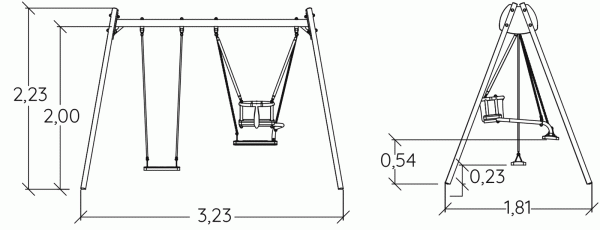

The size of the module is: 3.23 m length, 1.81 m width, 2.23 m. high. The free fall height (FFH) is 1.39 m.

7 play functions

Swinging x3

To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Resting x3

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Specifications

Age range:	1+
Number of users:	2 users
FFH :	1.39 m
Size:	3.23 x 1.81 x 2.23 m

Equipment installation

Number of installers:	2
Installation time:	02:00:00
Concrete volume:	0.11 m3

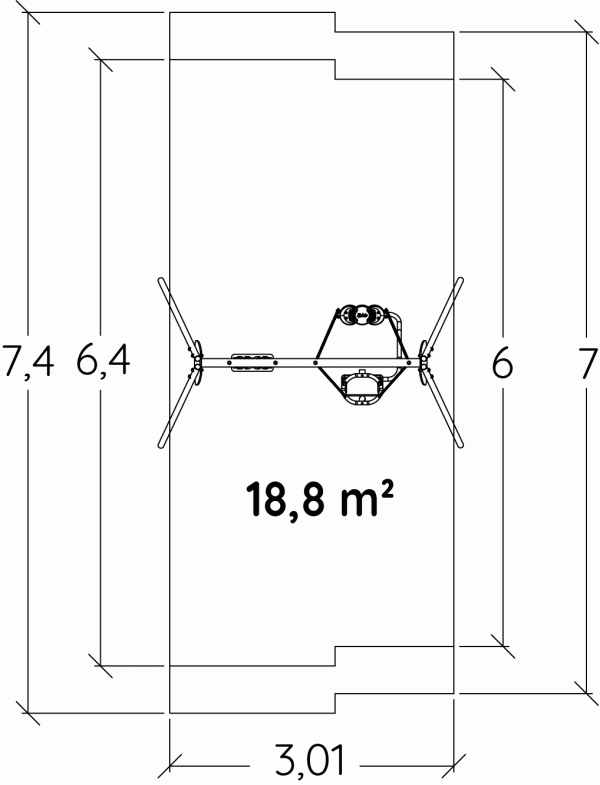

Surface:	18.80 m2
Total weight:	99.63 kg
Weight of the heaviest element:	20.80 kg

Environmental Indicators

Repairability

9.29 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The support legs are made from 60mm galvanised steel.

The horizontal beam is manufactured from 89mm diameter galvanised steel.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The swing bearings are made of stainless steel.

The Parent/Child seat consists of 2 seats, connected by a painted stainless steel structure. The Parent seat is made of shock absorbing moulded honeycomb rubber. The seat... fixing brackets are made of 10mm stainless steel wire. The pod swing seat for early childhood is made of polyurethane, which ensures a comfortable seating. The swing chains are made of stainless steel. Read more

The classic swing seat is made of shock absorbing moulded honeycomb rubber. The swing chains are made of stainless steel. The seat fixing brackets are made of 10mm... stainless steel wire. PVC sliding rings are fitted to limit the wear of the metal parts over time. The rings are accessed by a vandal proof, stainless steel shackle. Read more
